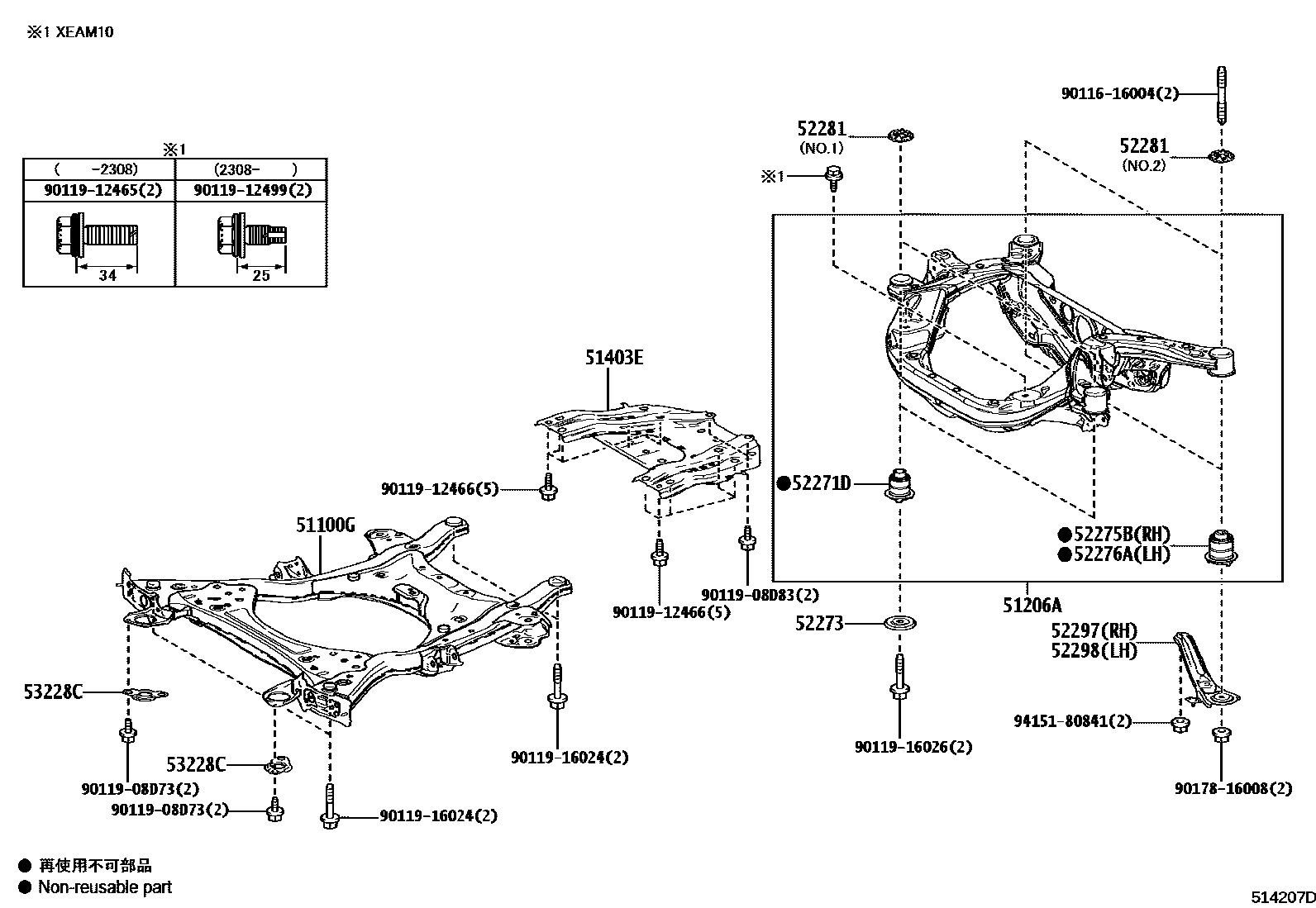

Toyota BZ4X (JPP) — SUSPENSION CROSSMEMBER & UNDER COVER

0001 1SUSPENSION CROSSMEMBER 0002 1MOTOR UNDER COVER 0003 1FLOOR UNDER COVER

51100GFRAME ASSY, FRONT

main51100-42041iXEAM10,YEAM15¥54,800202203-202411

main51100-42041iXEAM10,YEAM15¥54,800202412

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51200-42040iXEAM10,YEAM15¥60,300202203-202403

sub51200-42042¥54,700

main51200-42042iXEAM10,YEAM15¥54,700202403-202411

main51200-42042iXEAM10,YEAM15¥54,700202412

51403EBRACE SUB-ASSY, FRONT SUSPENSION MEMBER

main51403-42020iXEAM10,YEAM15¥8,200202412

main51403-42020iXEAM10,YEAM15¥8,200202203-202411

52271DCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT

main52271-42020iXEAM10,YEAM15¥2,570202412

main52271-42020iXEAM10,YEAM15¥2,570202203-202411

52273STOPPER, REAR SUSPENSION MEMBER, LOWER

main52273-33030iXEAM10,YEAM15¥820202412

main52273-33030iXEAM10,YEAM15¥820202203-202411

52275BCUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR RH

main52275-42020iXEAM10,YEAM15¥2,750202412

main52275-42020iXEAM10,YEAM15¥2,750202203-202411

52276ACUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR LH

main52276-42020iXEAM10,YEAM15¥2,750202412

main52276-42020iXEAM10,YEAM15¥2,750202203-202411

52281CUSHION, DIFFERENTIAL SUPPORT MEMBER

main52281-33020iXEAM10,YEAM15¥430202203-202411

NO.1:REFER ILLUST.

main52281-33020iXEAM10,YEAM15¥430202412

NO.1:REFER ILLUST.

main52281-42020iXEAM10,YEAM15¥430202412

NO.2:REFER ILLUST.

main52281-42020iXEAM10,YEAM15¥430202203-202411

NO.2:REFER ILLUST.

52297BRACE, REAR SUSPENSION MEMBER, REAR LOWER RH

main52297-42040iXEAM10,YEAM15¥2,050202412

main52297-42040iXEAM10,YEAM15¥2,050202203-202411

52298BRACE, REAR SUSPENSION MEMBER, REAR LOWER LH

main52298-42030iXEAM10,YEAM15¥2,190202412

main52298-42030iXEAM10,YEAM15¥2,190202203-202411

53228CBRACKET, RADIATOR MOUNTING, LOWER NO.1

main53228-42040iXEAM10,YEAM15¥720202412

main53228-42040iXEAM10,YEAM15¥720202203-202411

9011616004

main90116-16004¥610

9011908D73

main90119-08D73¥120

9011908D83

main90119-08D83¥120

9011912465

main90119-12465¥240

9011912466

main90119-12466¥240

9011912499

main90119-12499¥190

9011916024

main90119-16024¥490

9011916026

main90119-16026¥610

9017816008

main90178-16008¥190

9415180841

main94151-80841¥80

21 parts on this diagram · 3 diagrams in section
