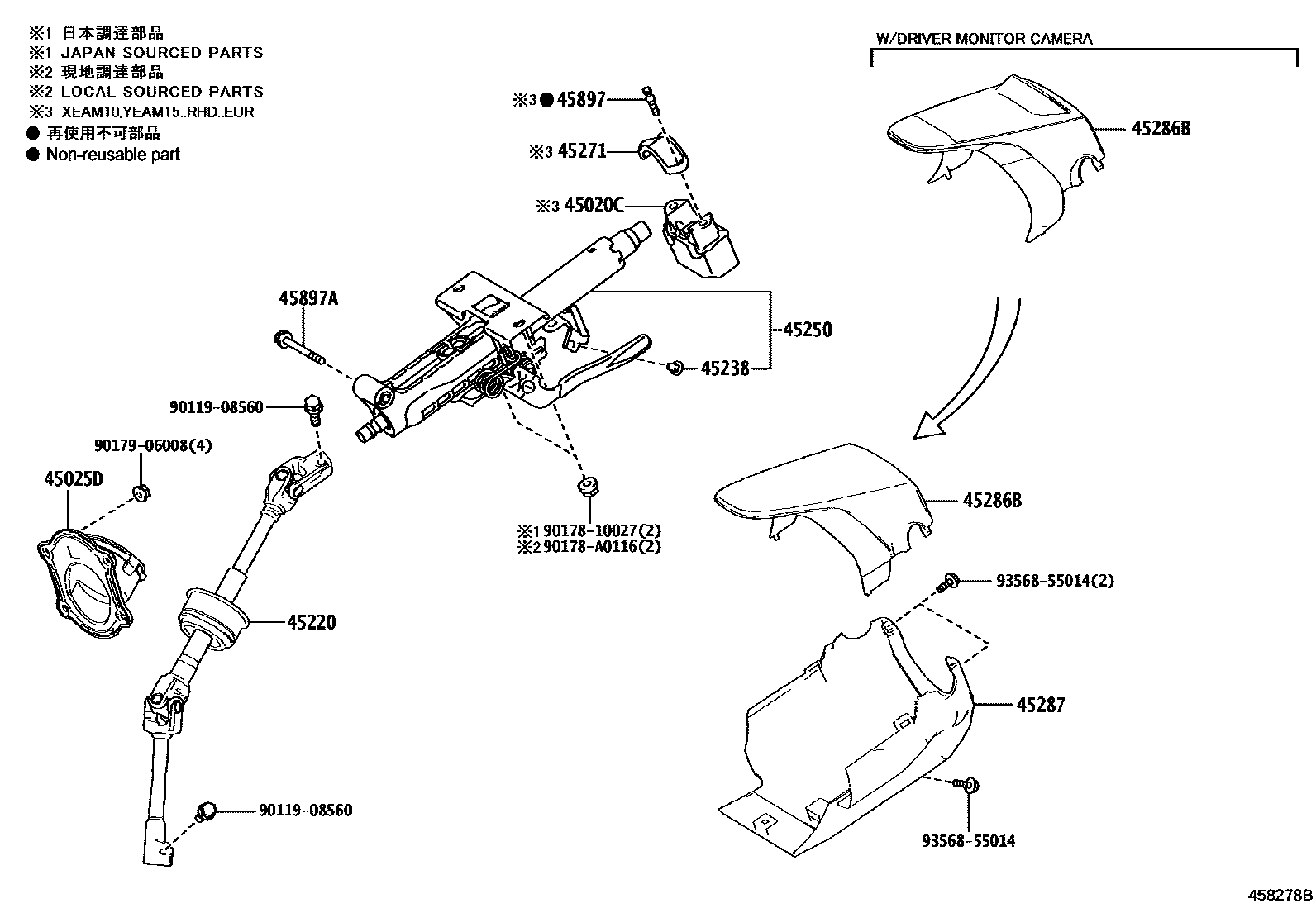

Toyota BZ4X (JPP) — STEERING COLUMN & SHAFT

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-42280i¥13,500202203-202411

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-42100i¥2,490202203-202411

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-42030i¥13,000202203-202411

main45220-42040i¥13,000202203-202411

45238CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)

main45238-52010i¥70202203-202411

45250COLUMN ASSY, STEERING

main45250-42420i¥46,700202203-202411

main45250-46040i¥46,700202203-202411

45271CLAMP, STEERING COLUMN, UPPER

main45271-52030i¥440202203-202411

45286BCOVER, STEERING COLUMN, UPR

main45286-42120-C0i202203-202411

BLACK,TRIM2#

main45286-42120-C0i202203-202411

BLACK,TRIM1#,2#

main45286-42130-C0i202412

BACK MONITOR-WITH(*PVM) & WITHOUT(ADVANCED PARK)&LANE KEEPING SYSTEM-WITH(TOUCH &EDSS)&REAR & REAR SIDE MONITOR-WITH(*ARFHL&*LC & SAFE EXIT ASSIST),BLACK,TRIM2#

main45286-42130-C0i202203-202411

BLACK,TRIM1#,2#

main45286-42130-C0i202203-202411

BACK MONITOR-WITH(*PVM) & WITHOUT(ADVANCED PARK),BLACK,TRIM2#

45287COVER, STEERING COLUMN, LWR

main45024-42020-C0i202203-202411

BLACK,TRIM1#,2#

main45024-42020-C0i202203-202411

BLACK,TRIM2#

45897BOLT, STEERING LOCK SET

main45897-12020i¥210202203-202411

45897ABOLT, TILT STEERING PAWL SET

main90119-10980i¥190202203-202411

9011908560

main90119-08560¥110

9017810027

main90178-10027¥100

90178A0116

main90178-A0116

9017906008

main90179-06008¥60

9356855014

main93568-55014¥70

15 parts on this diagram · 2 diagrams in section
