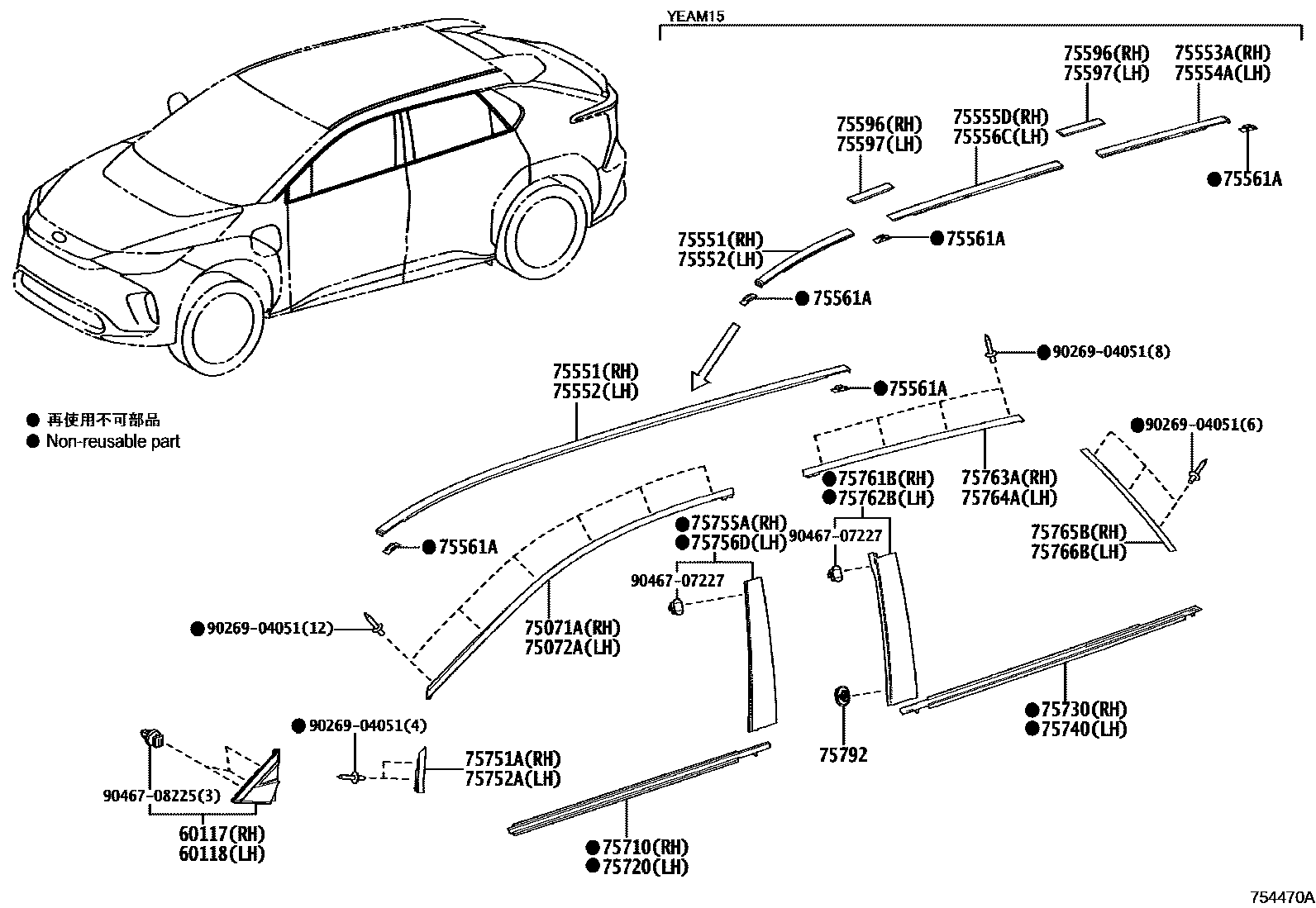

Toyota BZ4X (JPP) — SIDE MOULDING

0001 1 0002 1

60117COVER SUB-ASSY, FRONT PILLAR, UPR RH

main60117-42050iXEAM10,YEAM15..M,P¥1,470202203-202411

main60117-42060iXEAM10,YEAM15..H¥2,570202203-202411

60118COVER SUB-ASSY, FRONT PILLAR, UPR LH

main60118-42050iXEAM10,YEAM15..M,P¥1,470202203-202411

main60118-42060iXEAM10,YEAM15..H¥2,570202203-202411

75071AMOULDING SUB-ASSY, FRONT DOOR, OUTSIDE RH

main75071-42130iXEAM10,YEAM15..M,P¥2,400202203-202411

main75071-42140iXEAM10,YEAM15..H¥2,400202203-202411

75072AMOULDING SUB-ASSY, FRONT DOOR, OUTSIDE LH

main75072-42130iXEAM10,YEAM15..M,P¥2,400202203-202411

main75072-42140iXEAM10,YEAM15..H¥2,400202203-202411

75551MOULDING, ROOF DRIP SIDE FINISH, RH

main75551-42070iYEAM15..EUR¥1,270202203-202411

NO PAINT REQ.,ROOF RAIL-WITH&MOON ROOF-WITH(PANORAMA ROOF)

main75551-42070iYEAM15..EUR¥1,270202203-202411

NO PAINT REQ.

main75551-42070iYEAM15..EUR¥1,270202203-202411

NO PAINT REQ.,ROOF RAIL-WITH

main75551-42070iYEAM15..EUR¥1,270202412

NO PAINT REQ.,ROOF RAIL-WITHOUT(BRACKET ONLY)&MOON ROOF-WITHOUT

main75551-42070iYEAM15..EUR¥1,270202203-202411

NO PAINT REQ.,MOON ROOF-WITH(PANORAMA ROOF)

main75551-42070iYEAM15..EUR¥1,270202203-202411

NO PAINT REQ.,MOON ROOF-WITH(SOLAR ROOF)

main75551-42080iXEAM10..H¥4,580202203-202411

NO PAINT REQ.,ROOF RAIL-WITH

main75551-42080iXEAM10..H¥4,580202203-202411

NO PAINT REQ.,ROOF RAIL-WITHOUT(BRACKET ONLY)&MOON ROOF-WITH(PANORAMA ROOF)

main75551-42080iXEAM10..H¥4,580202203-202411

NO PAINT REQ.,ROOF RAIL-WITHOUT(BRACKET ONLY)&MOON ROOF-WITH(SOLAR ROOF)

main75551-42080iXEAM10¥4,580202203-202411

NO PAINT REQ.

75552MOULDING, ROOF DRIP SIDE FINISH, LH

main75552-42070iYEAM15..(H,P)..EUR¥1,270202203-202411

NO PAINT REQ.,MOON ROOF-WITH(PANORAMA ROOF)

main75552-42070iYEAM15..(H,P)..EUR¥1,270202203-202411

NO PAINT REQ.,MOON ROOF-WITH(SOLAR ROOF)

main75552-42070iYEAM15..ARL¥1,270202203-202411

NO PAINT REQ.

main75552-42070iYEAM15..ARL¥1,270202203-202411

NO PAINT REQ.,ROOF RAIL-WITH

main75552-42070iYEAM15..ARL¥1,270202203-202411

NO PAINT REQ.,ROOF RAIL-WITH&MOON ROOF-WITH(PANORAMA ROOF)

main75552-42070iYEAM15..ARL¥1,270202412

NO PAINT REQ.,ROOF RAIL-WITHOUT(BRACKET ONLY)&MOON ROOF-WITHOUT

main75552-42080iXEAM10..LHD..H¥4,580202203-202411

NO PAINT REQ.,ROOF RAIL-WITHOUT(BRACKET ONLY)&MOON ROOF-WITH(SOLAR ROOF)

main75552-42080iXEAM10¥4,580202203-202411

NO PAINT REQ.

main75552-42080iXEAM10¥4,580202203-202411

NO PAINT REQ.,ROOF RAIL-WITH

main75552-42080iXEAM10¥4,580202203-202411

NO PAINT REQ.,ROOF RAIL-WITHOUT(BRACKET ONLY)&MOON ROOF-WITH(PANORAMA ROOF)

75553AMOULDING, ROOF DRIP SIDE FINISH, REAR RH

main75553-42060iYEAM15..EUR¥1,660202203-202411

ROOF RAIL-WITH

main75553-42060iYEAM15..EUR¥1,660202203-202411

ROOF RAIL-WITH&MOON ROOF-WITH(PANORAMA ROOF)

main75553-42060iYEAM15..EUR¥1,660202412

ROOF RAIL-WITHOUT(BRACKET ONLY)&MOON ROOF-WITHOUT

main75553-42060iYEAM15..EUR¥1,660202203-202411

MOON ROOF-WITH(PANORAMA ROOF)

main75553-42060iYEAM15..EUR¥1,660202203-202411

MOON ROOF-WITH(SOLAR ROOF)

75554AMOULDING, ROOF DRIP SIDE FINISH, REAR LH

main75554-42060iYEAM15..EUR¥1,660202203-202411

ROOF RAIL-WITH

main75554-42060iYEAM15..EUR¥1,660202203-202411

ROOF RAIL-WITH&MOON ROOF-WITH(PANORAMA ROOF)

main75554-42060iYEAM15..EUR¥1,660202412

ROOF RAIL-WITHOUT(BRACKET ONLY)&MOON ROOF-WITHOUT

main75554-42060iYEAM15..EUR¥1,660202203-202411

MOON ROOF-WITH(PANORAMA ROOF)

main75554-42060iYEAM15..EUR¥1,660202203-202411

MOON ROOF-WITH(SOLAR ROOF)

75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH

main75555-42040iYEAM15..EUR¥1,920202203-202411

ROOF RAIL-WITH

main75555-42040iYEAM15..EUR¥1,920202203-202411

ROOF RAIL-WITH&MOON ROOF-WITH(PANORAMA ROOF)

main75555-42040iYEAM15..EUR¥1,920202412

ROOF RAIL-WITHOUT(BRACKET ONLY)&MOON ROOF-WITHOUT

main75555-42040iYEAM15..EUR¥1,920202203-202411

MOON ROOF-WITH(PANORAMA ROOF)

main75555-42040iYEAM15..EUR¥1,920202203-202411

MOON ROOF-WITH(SOLAR ROOF)

75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH

main75555-42040iYEAM15..(H,P)..EUR¥1,920202203-202411

MOON ROOF-WITH(PANORAMA ROOF)

main75555-42040iYEAM15..EUR¥1,920202203-202411

ROOF RAIL-WITH

main75555-42040iYEAM15..EUR¥1,920202203-202411

ROOF RAIL-WITH&MOON ROOF-WITH(PANORAMA ROOF)

main75555-42040iYEAM15..EUR¥1,920202412

ROOF RAIL-WITHOUT(BRACKET ONLY)&MOON ROOF-WITHOUT

main75555-42040iYEAM15..EUR¥1,920202203-202411

MOON ROOF-WITH(SOLAR ROOF)

75561ACLIP, ROOF DRIP SIDE FINISH MOULDING

main75561-48020iXEAM10¥110202203-202411

MOON ROOF-WITH(PANORAMA ROOF)

main75561-48020iXEAM10¥110202203-202411

ROOF RAIL-WITHOUT(BRACKET ONLY)&MOON ROOF-WITH(PANORAMA ROOF)

main75561-48020iXEAM10¥110202203-202411

ROOF RAIL-WITHOUT(BRACKET ONLY)&MOON ROOF-WITH(SOLAR ROOF)

main75561-48020iXEAM10¥110202203-202411

ROOF RAIL-WITH

main75561-48020iXEAM10¥110202203-202411

ROOF RAIL-WITH&MOON ROOF-WITH(PANORAMA ROOF)

main75561-48020iXEAM10¥110202412

ROOF RAIL-WITHOUT(BRACKET ONLY)&MOON ROOF-WITHOUT

main75561-48020iXEAM10¥110202203-202411

MOON ROOF-WITH(SOLAR ROOF)

75596COVER, ROOF DRIP SIDE FINISH MOULDING JOINT, RH

main75596-42020iYEAM15..EUR¥440202412

ROOF RAIL-WITHOUT(BRACKET ONLY)&MOON ROOF-WITHOUT

main75596-42020iYEAM15..EUR¥440202203-202411

75597COVER, ROOF DRIP SIDE FINISH MOULDING JOINT, LH

main75596-42020iYEAM15..EUR¥440202412

ROOF RAIL-WITHOUT(BRACKET ONLY)&MOON ROOF-WITHOUT

main75596-42020iYEAM15..EUR¥440202203-202411

75710MOULDING ASSY, FRONT DOOR BELT, RH

main75710-42060iXEAM10,YEAM15¥2,400202203-202411

75720MOULDING ASSY, FRONT DOOR BELT, LH

main75720-42060iXEAM10,YEAM15¥2,400202203-202411

75730MOULDING ASSY, REAR DOOR BELT, RH

main75730-42060iXEAM10,YEAM15¥2,400202203-202411

75740MOULDING ASSY, REAR DOOR BELT, LH

main75740-42060iXEAM10,YEAM15¥2,400202203-202411

75751AMOULDING, FRONT DOOR WINDOW FRAME, RH(FRONT PILLAR SIDE)

main75751-42010iXEAM10,YEAM15¥1,010202203-202411

75752AMOULDING, FRONT DOOR WINDOW FRAME, LH(FRONT PILLAR SIDE)

main75752-42010iXEAM10,YEAM15¥1,010202203-202411

75755AMOULDING, FRONT DOOR WINDOW FRAME, RH(CENTER PILLAR SIDE)

main75755-42030iXEAM10,YEAM15..M,P¥1,120202203-202411

main75755-42040iXEAM10,YEAM15..H¥2,070202203-202411

75756DMOULDING, FRONT DOOR WINDOW FRAME, LH(CENTER PILLAR SIDE)

main75756-42030iXEAM10,YEAM15..M,P¥1,120202203-202411

main75756-42040iXEAM10,YEAM15..H¥2,070202203-202411

75761BMOULDING, REAR DOOR WINDOW FRAME, RH(CENTER PILLAR SIDE)

main75075-42100iXEAM10,YEAM15..M,P¥1,480202203-202411

main75075-42110iXEAM10,YEAM15..H¥2,070202203-202411

75762BMOULDING, REAR DOOR WINDOW FRAME, LH(CENTER PILLAR SIDE)

main75076-42100iXEAM10,YEAM15..M,P¥1,480202203-202411

main75076-42110iXEAM10,YEAM15..H¥2,070202203-202411

75763AMOULDING, REAR DOOR WINDOW FRAME, UPPER RH

main75763-42020iXEAM10,YEAM15..M,P¥1,850202203-202411

main75763-42030iXEAM10,YEAM15..H¥1,850202203-202411

75764AMOULDING, REAR DOOR WINDOW FRAME, UPPER LH

main75764-42020iXEAM10,YEAM15..M,P¥1,850202203-202411

main75764-42030iXEAM10,YEAM15..H¥1,850202203-202411

75765BMOULDING, REAR DOOR WINDOW FRAME, RH(REAR PILLAR SIDE)

main75765-42020iXEAM10,YEAM15¥1,400202203-202411

75766BMOULDING, REAR DOOR WINDOW FRAME, LH(REAR PILLAR SIDE)

main75766-42020iXEAM10,YEAM15¥1,400202203-202411

75792CLIP, DOOR WINDOW FRAME MOULDING

main75792-47010iXEAM10,YEAM15¥70202203-202411

9026904051

main90269-04051¥40

9046707227

main90467-07227¥80

9046708225

main90467-08225¥60

31 parts on this diagram · 2 diagrams in section
