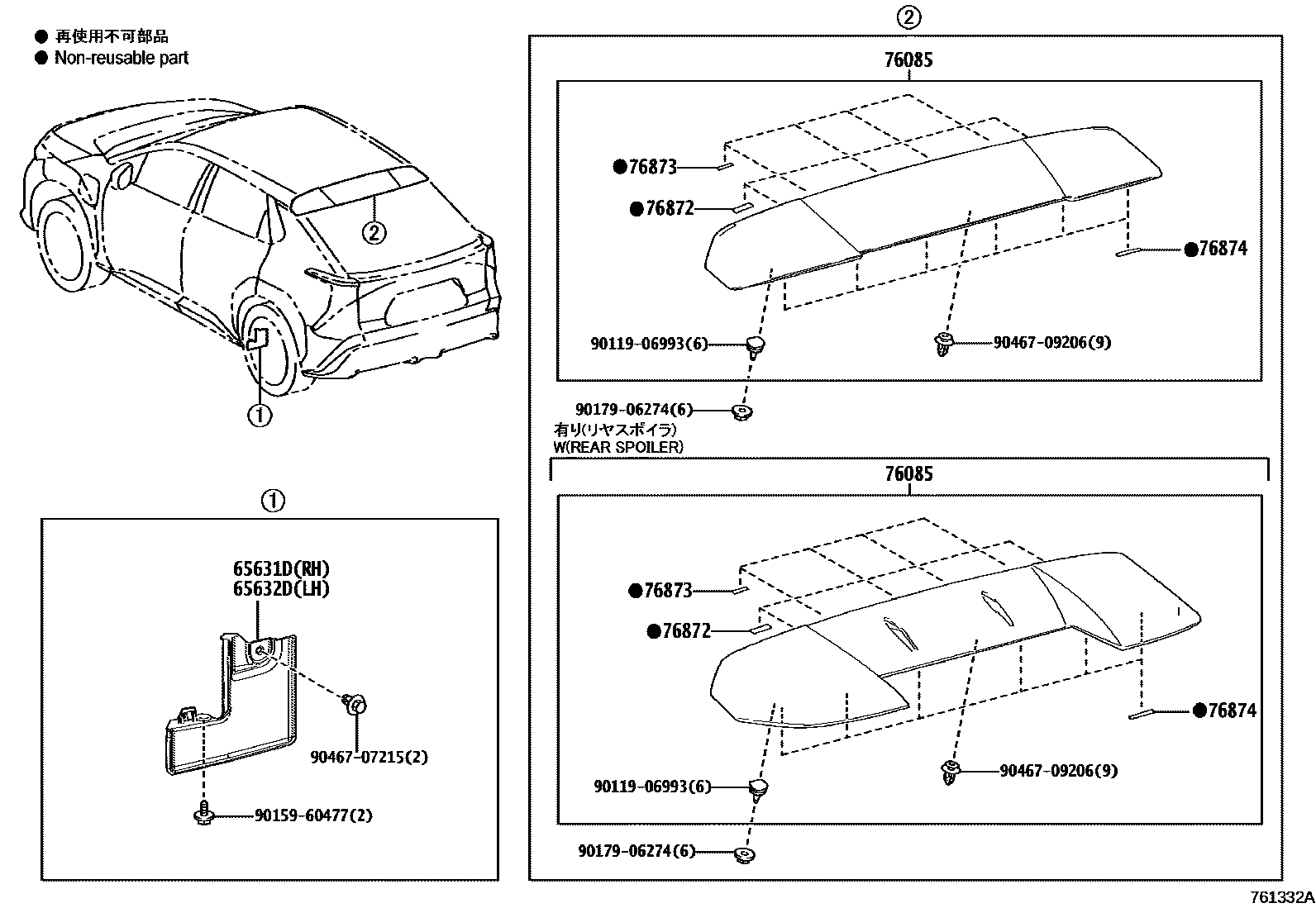

Toyota BZ4X (JPP) — MUDGUARD & SPOILER

65631DPLATE, REAR WHEEL HOUSE, FRONT RH

main65631-42050iXEAM10;YEAM15..EUR¥1,330202412

main65631-42050iXEAM10;YEAM15..EUR¥1,330202203-202411

main65631-42060iYEAM15..ARL¥1,190202412

main65631-42060iYEAM15..ARL¥1,190202311-202411

65632DPLATE, REAR WHEEL HOUSE, FRONT LH

main65632-42050iXEAM10;YEAM15..EUR¥1,330202412

main65632-42050iXEAM10;YEAM15..EUR¥1,330202203-202411

main65632-42060iYEAM15..ARL¥1,190202311-202411

main65632-42060iYEAM15..ARL¥1,190202412

76085SPOILER SUB-ASSY, REAR

main75607-42900iXEAM10,YEAM15¥33,900202412

PAINT REQ.

main75607-42900iXEAM10,YEAM15¥33,900202203-202411

PAINT REQ.

76872PROTECTOR, REAR SPOILER, NO.1

main76872-42080iXEAM10,YEAM15¥430202412

main76872-42080iXEAM10,YEAM15¥430202203-202411

76873PROTECTOR, REAR SPOILER, NO.2

main76873-42040iXEAM10,YEAM15¥430202412

main76873-42040iXEAM10,YEAM15¥430202203-202411

76874PROTECTOR, REAR SPOILER, NO.3

main76874-42040iXEAM10,YEAM15¥430202412

main76874-42040iXEAM10,YEAM15¥430202203-202411

9011906993

main90119-06993¥80

9015960477

main90159-60477¥70

9017906274

main90179-06274¥70

9046707215

main90467-07215¥80

9046709206

main90467-09206¥80

11 parts on this diagram · 1 diagram in section
