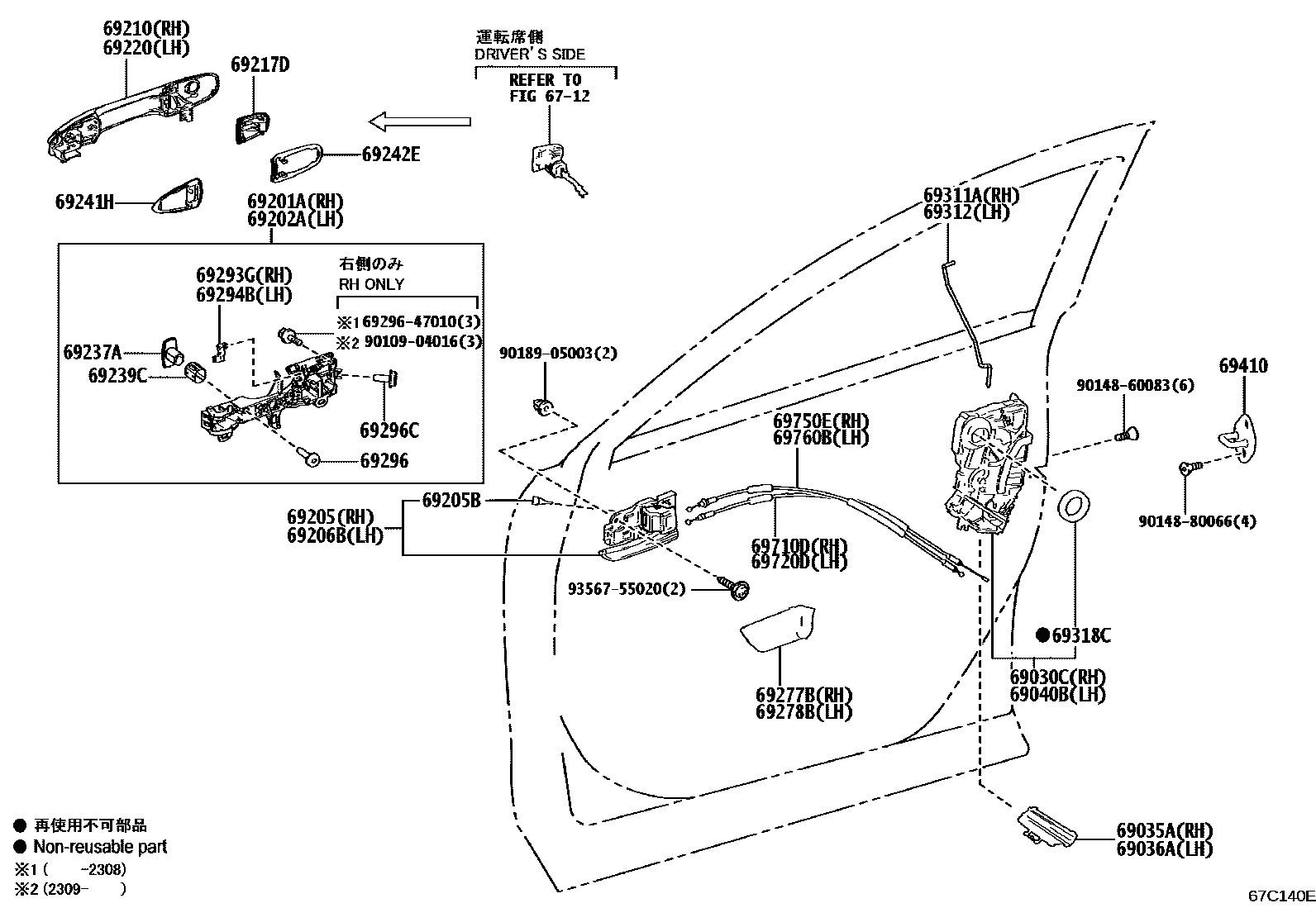

Toyota BZ4X (JPP) — FRONT DOOR LOCK & HANDLE

6712

69030CLOCK ASSY, FRONT DOOR W/MOTOR & COURTESY LAMP SWITCH, RH

main69030-28190iXEAM10,YEAM15..ARL¥11,900202311-202411

main69030-42280iXEAM10,YEAM15..LHD..EUR¥11,300202203-202411

main69030-42290iXEAM10..TAIW¥11,300202203-202411

main69030-42300iXEAM10,YEAM15..RHD..EUR¥16,100202203-202411

69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH

main69035-28010iXEAM10,YEAM15..ARL,TAIW;XEAM10,YEAM15..LHD..EUR¥220202203-202411

69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH

main69036-28010iXEAM10,YEAM15..ARL,TAIW;XEAM10,YEAM15..LHD..EUR¥220202203-202411

69040BLOCK ASSY, FRONT DOOR W/MOTOR & COURTESY LAMP SWITCH, LH

main69040-28220iXEAM10,YEAM15..ARL¥11,300202311-202411

main69040-42310iXEAM10,YEAM15..LHD¥11,900202203-202411

main69040-42320iXEAM10,YEAM15..RHD..EUR¥15,500202203-202411

69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH

main69201-33060iXEAM10,YEAM15..ARL,TAIW;XEAM10,YEAM15..LHD..EUR¥4,210202203-202411

main69201-42100iXEAM10,YEAM15..RHD..EUR¥4,210202203-202411

69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH

main69202-33060iXEAM10,YEAM15¥4,210202203-202411

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-15010-C1iXEAM10..TAIW;XEAM10,YEAM15..H202203-202411

BLACK,TRIM1#,2#

main69205-15010-C1iXEAM10..TAIW;XEAM10,YEAM15..H202203-202411

BLACK,TRIM2#

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main90541-04014iXEAM10,YEAM15¥100202203-202411

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-15010-C1iXEAM10..TAIW;XEAM10,YEAM15..H202203-202411

BLACK,TRIM1#,2#

main69206-15010-C1iXEAM10..TAIW;XEAM10,YEAM15..H202203-202411

BLACK,TRIM2#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-K0010-A3iXEAM10,YEAM15..RHD202203-202411

PLATINUM WHITE PEARL MC.,089 ,2VP

main69210-K0010-B9iXEAM10,YEAM15..RHD202203-202411

PRECIOUS SILVER,1J6 ,2MR

main69210-K0010-C0iXEAM10,YEAM15..RHD202203-202411

BLACK,202

main69210-K0010-D5iXEAM10,YEAM15..RHD202203-202411

EMOTIONAL RED 2,2TB ,3U5

main69210-K0010-J4iXEAM10,YEAM15..RHD202203-202411

DK.BLUE MC.,2MT ,8S6

main69210-K0010-P0iXEAM10,YEAM15..RHD202203-202411

PRECIOUS METAL,1L5 ,2WC

main69210-K0020-A3iXEAM10,YEAM15..LHD202203-202411

PLATINUM WHITE PEARL MC.,089 ,2VP

main69210-K0020-B9iXEAM10,YEAM15..LHD202203-202411

PRECIOUS SILVER,1J6 ,2MR

main69210-K0020-C0iXEAM10,YEAM15..LHD202203-202411

BLACK,202

main69210-K0020-D5iXEAM10,YEAM15..LHD202203-202411

EMOTIONAL RED 2,2TB ,3U5

main69210-K0020-J4iXEAM10,YEAM15..LHD202203-202411

DK.BLUE MC.,2MT ,8S6

main69210-K0020-P0iXEAM10,YEAM15..LHD202203-202411

PRECIOUS METAL,1L5 ,2WC

69217DCOVER, FRONT DOOR OUTSIDE HANDLE

main69217-47020iXEAM10,YEAM15¥450202203-202411

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69210-K0010-A3iXEAM10,YEAM15..LHD202203-202411

PLATINUM WHITE PEARL MC.,089 ,2VP

main69210-K0010-B9iXEAM10,YEAM15..LHD202203-202411

PRECIOUS SILVER,1J6 ,2MR

main69210-K0010-C0iXEAM10,YEAM15..LHD202203-202411

BLACK,202

main69210-K0010-D5iXEAM10,YEAM15..LHD202203-202411

EMOTIONAL RED 2,2TB ,3U5

main69210-K0010-J4iXEAM10,YEAM15..LHD202203-202411

DK.BLUE MC.,2MT ,8S6

main69210-K0010-P0iXEAM10,YEAM15..LHD202203-202411

PRECIOUS METAL,1L5 ,2WC

main69210-K0020-A3iXEAM10,YEAM15..RHD202203-202411

PLATINUM WHITE PEARL MC.,089 ,2VP

main69210-K0020-B9iXEAM10,YEAM15..RHD202203-202411

PRECIOUS SILVER,1J6 ,2MR

main69210-K0020-C0iXEAM10,YEAM15..RHD202203-202411

BLACK,202

main69210-K0020-D5iXEAM10,YEAM15..RHD202203-202411

EMOTIONAL RED 2,2TB ,3U5

main69210-K0020-J4iXEAM10,YEAM15..RHD202203-202411

DK.BLUE MC.,2MT ,8S6

main69210-K0020-P0iXEAM10,YEAM15..RHD202203-202411

PRECIOUS METAL,1L5 ,2WC

69237ANUT, FRONT DOOR HANDLE

main69237-62010iXEAM10,YEAM15¥160202203-202411

sub69237-0E010¥220

69239CBUSH, FRONT DOOR HANDLE

main69239-47010iXEAM10,YEAM15¥90202203-202411

69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT

main69241-47020iXEAM10,YEAM15¥400202203-202411

69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR

main69242-47030iXEAM10,YEAM15¥400202203-202411

69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH

main69277-42020-C0iXEAM10..TAIW;XEAM10,YEAM15..H202203-202411

BLACK,TRIM1#,2#

main69277-42020-C0iXEAM10..TAIW;XEAM10,YEAM15..H202203-202411

BLACK,TRIM2#

69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH

main69278-42020-C0iXEAM10,YEAM15..(M,P)..(ARL,EUR)202203-202411

BLACK,TRIM1#,2#

main69278-42020-C0iXEAM10,YEAM15..(M,P)..(ARL,EUR)202203-202411

BLACK,TRIM2#

69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH

main69293-33030iXEAM10,YEAM15¥90202203-202411

69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH

main69293-33040iXEAM10,YEAM15¥90202203-202411

69296SCREW, DOOR INSIDE HANDLE

main90148-50006iXEAM10,YEAM15¥60202203-202411

69296CSCREW, DOOR INSIDE HANDLE

main90148-50003iXEAM10,YEAM15..RHD..EUR¥60202203-202411

LH

main90148-50008iXEAM10,YEAM15..RHD..EUR¥60202203-202411

RH

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-42090iXEAM10,YEAM15¥410202203-202411

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-42100iXEAM10,YEAM15¥410202203-202411

69318CSEAL, DOOR LOCK WIRING HARNESS

main69318-47010iXEAM10,YEAM15..LHD..EUR¥120202203-202411

ANTI-THEFT SYSTEM-ALARM, DOUBLE-LOCK, GLASS SENSOR

main69318-47010iXEAM10,YEAM15..RHD..EUR¥120202203-202411

ANTI-THEFT SYSTEM-ALARM, DOUBLE-LOCK

main69318-51010iXEAM10,YEAM15..ARL,TAIW;XEAM10,YEAM15..LHD..EUR¥120202203-202411

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-20110iXEAM10,YEAM15¥1,050202203-202411

69710DCABLE, FRONT DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)

main69710-42100iXEAM10,YEAM15..ARL,TAIW;XEAM10,YEAM15..LHD..EUR¥1,170202203-202411

main69710-42120iXEAM10,YEAM15..RHD..EUR¥1,170202203-202411

ANTI-THEFT SYSTEM-ALARM, DOUBLE-LOCK, GLASS SENSOR

main69710-42120iXEAM10,YEAM15..RHD..EUR¥1,170202203-202411

ANTI-THEFT SYSTEM-ALARM, DOUBLE-LOCK

69720DCABLE, FRONT DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)

main69710-42100iXEAM10,YEAM15..ARL,TAIW;XEAM10,YEAM15..LHD..EUR¥1,170202203-202411

main69710-42120iXEAM10,YEAM15..LHD..EUR¥1,170202203-202411

ANTI-THEFT SYSTEM-ALARM, DOUBLE-LOCK, GLASS SENSOR

main69710-42120iXEAM10,YEAM15..LHD..EUR¥1,170202203-202411

ANTI-THEFT SYSTEM-ALARM, DOUBLE-LOCK

69750ECABLE, FRONT DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)

main69750-42090iXEAM10,YEAM15..ARL,TAIW;XEAM10,YEAM15..LHD..EUR¥1,170202203-202411

main69750-42100iXEAM10,YEAM15..LHD..EUR¥1,170202203-202411

ANTI-THEFT SYSTEM-ALARM, DOUBLE-LOCK

main69750-42100iXEAM10,YEAM15..RHD..EUR¥1,170202203-202411

ANTI-THEFT SYSTEM-ALARM, DOUBLE-LOCK, GLASS SENSOR

69760BCABLE, FRONT DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)

main69750-42090iXEAM10,YEAM15..ARL,TAIW;XEAM10,YEAM15..LHD..EUR¥1,170202203-202411

main69750-42100iXEAM10,YEAM15..RHD..EUR¥1,170202203-202411

ANTI-THEFT SYSTEM-ALARM, DOUBLE-LOCK, GLASS SENSOR

main69750-42100iXEAM10,YEAM15..LHD..EUR¥1,170202203-202411

ANTI-THEFT SYSTEM-ALARM, DOUBLE-LOCK

6929647010SCREW, DOOR INSIDE HANDLE

main69296-47010¥80

9010904016

main90109-04016

9014860083

main90148-60083¥60

9014880066

main90148-80066¥60

9018905003

main90189-05003¥130

9356755020

main93567-55020¥70

37 parts on this diagram · 1 diagram in section
