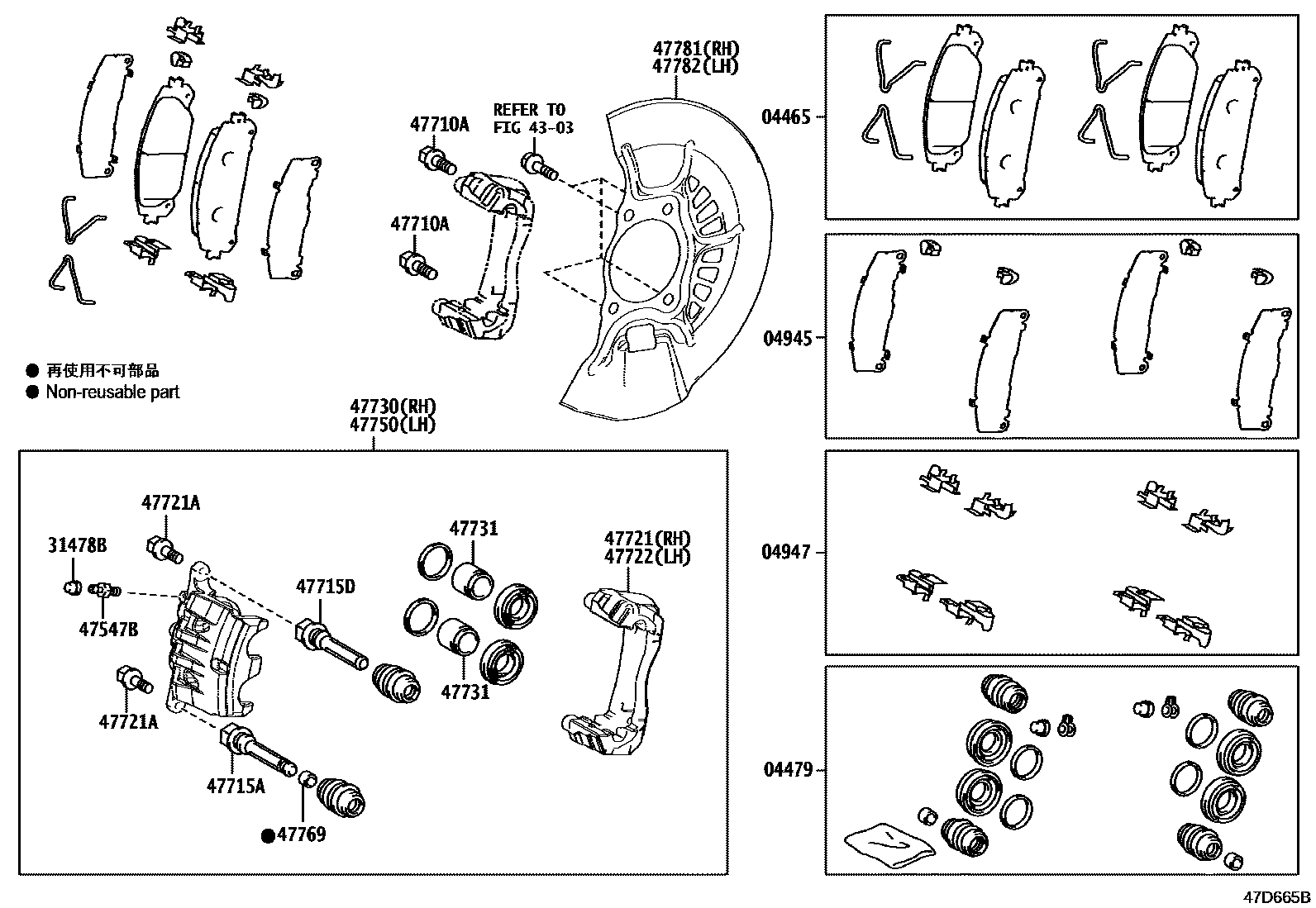

Toyota BZ4X (JPP) — FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-78020iXEAM10,YEAM15¥11,300202412

MARK ADVICS VC084H

main04465-78020iXEAM10,YEAM15¥11,300202203-202411

MARK ADVICS VC084H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-42030iXEAM10,YEAM15¥2,210202412

main04478-42030iXEAM10,YEAM15¥2,210202203-202411

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-48190iXEAM10,YEAM15¥1,160202412

main04945-48190iXEAM10,YEAM15¥1,160202203-202411

04947FITTING KIT, DISC BRAKE, FRONT

main04947-48080iXEAM10,YEAM15¥1,670202412

main04947-48080iXEAM10,YEAM15¥1,670202203-202411

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iXEAM10,YEAM15¥160202203-202411

main31478-30010iXEAM10,YEAM15¥160202412

4303

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12130iXEAM10,YEAM15¥160202203-202411

main47547-12130iXEAM10,YEAM15¥160202412

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208iXEAM10¥160202203-202411

*12-1.25PX29.5-23

main90105-12208iXEAM10¥160202412

*12-1.25PX29.5-23

main90105-12401iYEAM15¥190202412

*12-1.25PX35.5-30

main90105-12401iYEAM15¥190202203-202411

*12-1.25PX35.5-30

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47714-48150iXEAM10,YEAM15¥230202412

main47714-48150iXEAM10,YEAM15¥230202203-202411

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-48150iXEAM10,YEAM15¥230202203-202411

main47715-48150iXEAM10,YEAM15¥230202412

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-42130iXEAM10,YEAM15¥6,700202412

main47721-42130iXEAM10,YEAM15¥6,700202203-202411

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90015-AA602iXEAM10,YEAM15¥80202412

*8-1.00PX23-12.5

main90015-AA602iXEAM10,YEAM15¥80202203-202411

*8-1.00PX23-12.5

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-42130iXEAM10,YEAM15¥6,700202412

main47722-42130iXEAM10,YEAM15¥6,700202203-202411

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-42130iXEAM10,YEAM15¥37,400202412

main47730-42130iXEAM10,YEAM15¥37,400202203-202411

47731PISTON, FRONT DISC BRAKE

main47731-48150iXEAM10,YEAM15¥1,060202412

main47731-48150iXEAM10,YEAM15¥1,060202203-202411

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-42130iXEAM10,YEAM15¥37,400202412

main47750-42130iXEAM10,YEAM15¥37,400202203-202411

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-48150iXEAM10,YEAM15¥200202412

main47769-48150iXEAM10,YEAM15¥200202203-202411

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-33060iXEAM10,YEAM15¥1,050202412

main47781-33060iXEAM10,YEAM15¥1,050202203-202411

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-33060iXEAM10,YEAM15¥1,050202412

main47782-33060iXEAM10,YEAM15¥1,050202203-202411

19 parts on this diagram · 1 diagram in section
