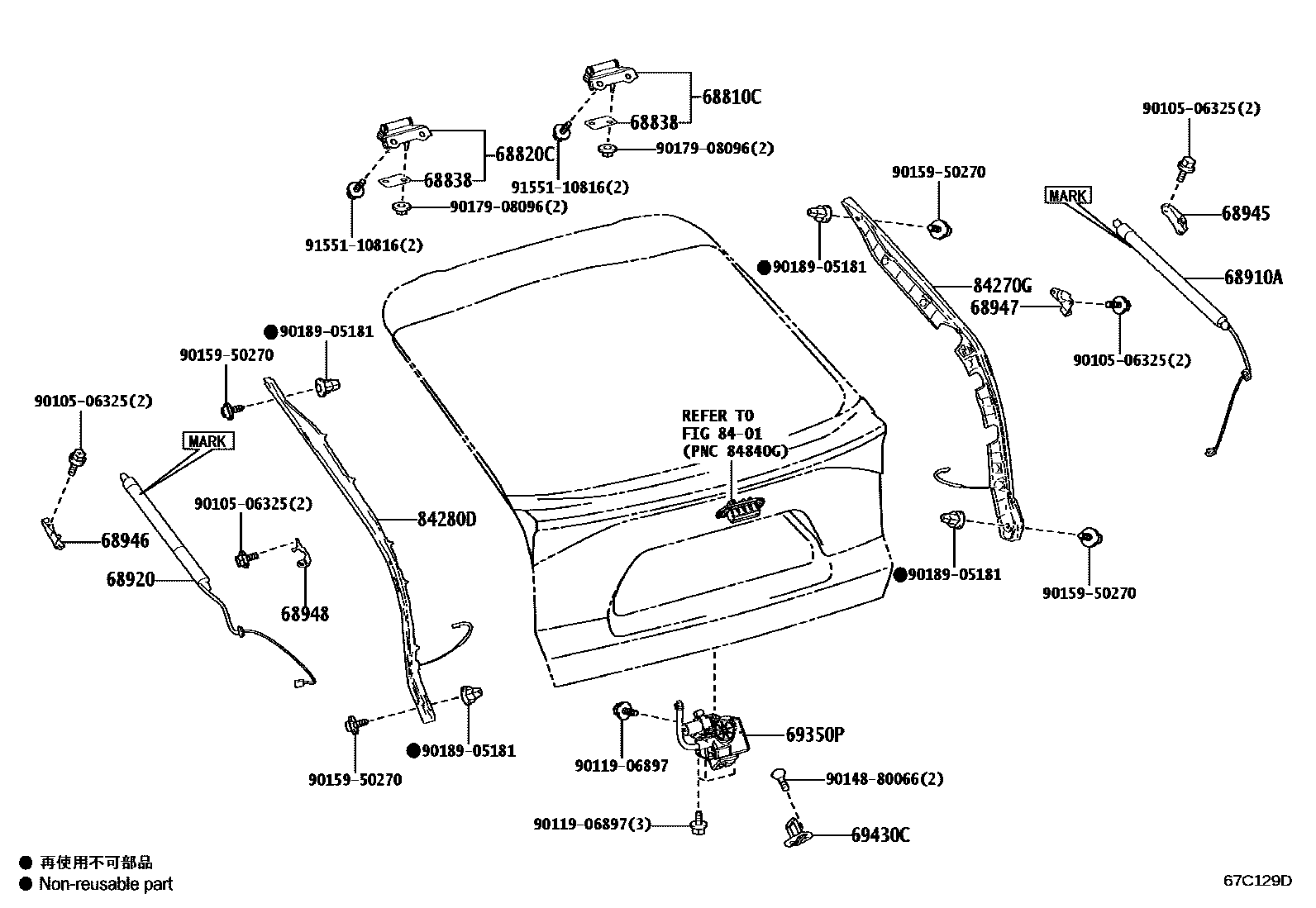

Toyota BZ4X (JPP) — BACK DOOR LOCK & HANDLE
68810CHINGE ASSY, BACK DOOR, RH
68820CHINGE ASSY, BACK DOOR, LH
68838PAD, BACK DOOR HINGE, NO.1
T=1.0
T=1.5
T=2.0
68910AUNIT ASSY SET, POWER BACK DOOR, RH
AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)
AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR),MARK=68910-42101
MARK=68910-42102
AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR),MARK=68910-42102
68920UNIT ASSY SET, POWER BACK DOOR, LH
AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)
AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR),MARK=68920-42081
MARK=68920-42082
AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR),MARK=68920-42082
68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH
AUTO & EASY CLOSER DOOR-WITHOUT
AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)
68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH
AUTO & EASY CLOSER DOOR-WITHOUT
AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)
68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH
68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH
69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH
AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)
AUTO & EASY CLOSER DOOR-WITHOUT
69430CSTRIKER ASSY, BACK DOOR LOCK
8401
84270GSENSOR ASSY, POWER BACK DOOR, RH
AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)
84280DSENSOR ASSY, POWER BACK DOOR, LH
AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)
9010506325
9011906897
9014880066
9015950270
9017908096
9018905181
9155110816
21 parts on this diagram · 2 diagrams in section
