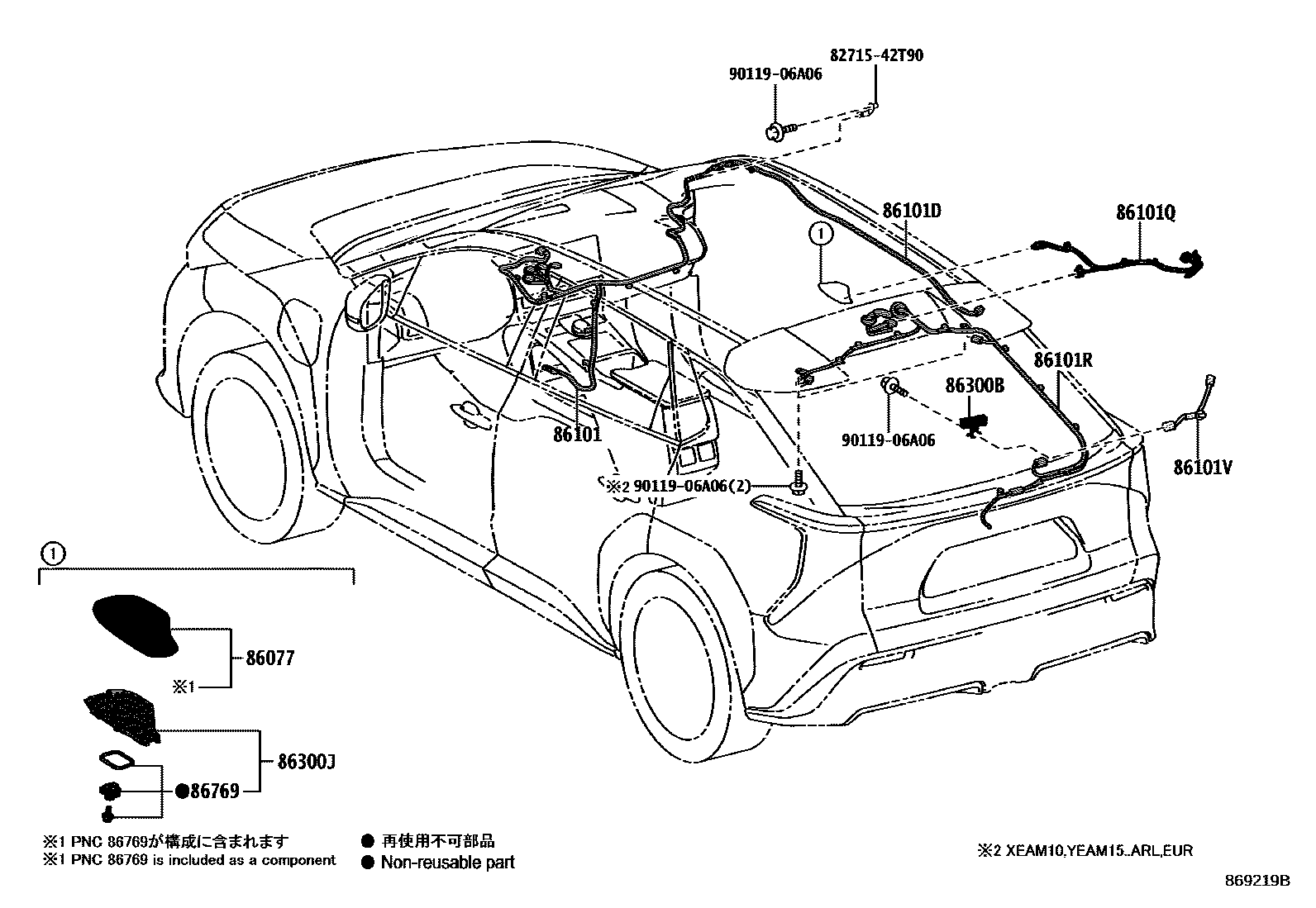

Toyota BZ4X (JPP) — ANTENNA
86077COVER KIT, ANTENNA
PLATINUM WHITE PEARL MC.,089
PRECIOUS METAL,1L5
PRECIOUS SILVER,1J6
BLACK,202 ,2MR ,2MT ,2TB ,2VP ,2WC
EMOTIONAL RED 2,3U5
DK.BLUE MC.,8S6
PLATINUM WHITE PEARL MC.,089
HONG KONG SPEC&WITHOUT,PLATINUM WHITE PEARL MC.,089
NEW ZEALAND SPEC&WITHOUT,PLATINUM WHITE PEARL MC.,089
NEW ZEALAND SPEC&WITHOUT,PRECIOUS SILVER,1J6
HONG KONG SPEC&WITHOUT,PRECIOUS SILVER,1J6
PRECIOUS SILVER,1J6
HONG KONG SPEC&WITHOUT,PRECIOUS METAL,1L5
PRECIOUS METAL,1L5
NEW ZEALAND SPEC&WITHOUT,PRECIOUS METAL,1L5
HONG KONG SPEC&WITHOUT,BLACK,202 ,2MR ,2MT ,2TB ,2VP ,2WC
NEW ZEALAND SPEC&WITHOUT,BLACK,202 ,2MR ,2MT ,2TB ,2VP ,2WC
BLACK,202 ,2MR ,2MT ,2TB ,2VP ,2WC
EMOTIONAL RED 2,3U5
NEW ZEALAND SPEC&WITHOUT,EMOTIONAL RED 2,3U5
HONG KONG SPEC&WITHOUT,EMOTIONAL RED 2,3U5
NEW ZEALAND SPEC&WITHOUT,DK.BLUE MC.,8S6
HONG KONG SPEC&WITHOUT,DK.BLUE MC.,8S6
DK.BLUE MC.,8S6
86101CORD SUB-ASSY, ANTENNA
WINDSHIELD DEICER(W/HEADLAMP CLEANER)
86101DCORD SUB-ASSY, ANTENNA, NO.3
HONG KONG SPEC&WITHOUT
WINDSHIELD DEICER(W/HEADLAMP CLEANER)
86101QCORD SUB-ASSY, ANTENNA, NO.4
HONG KONG SPEC&WITHOUT
WINDSHIELD DEICER(W/HEADLAMP CLEANER)
86101RCORD SUB-ASSY, ANTENNA, NO.5
HONG KONG SPEC
86101VCORD SUB-ASSY, ANTENNA, NO.6
86300BANTENNA ASSY, AMPLIFIER, NO.1
86300JANTENNA ASSY, ROOF
NEW ZEALAND SPEC&WITHOUT
HONG KONG SPEC&WITHOUT
WINDSHIELD DEICER(W/HEADLAMP CLEANER)
86769HOUSING, ROOF ANTENNA
8271542T90BRACKET,WIRING HARNESS CLAMP
9011906A06
11 parts on this diagram · 1 diagram in section
