Toyota BZ4X (JPP) — REAR DOOR WINDOW REGULATOR & HINGE

6705

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-20122iXEAM10,YEAM15¥1,850202203-202411

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-20122iXEAM10,YEAM15¥1,850202203-202411

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-33050iXEAM10,YEAM15¥2,030202203-202411

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-33050iXEAM10,YEAM15¥2,030202203-202411

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-42070iXEAM10,YEAM15¥5,100202203-202305

sub69803-42071¥4,560

main69803-42071iXEAM10,YEAM15¥4,560202306-202411

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-42070iXEAM10,YEAM15¥5,100202203-202305

sub69804-42071¥4,560

main69804-42071iXEAM10,YEAM15¥4,560202306-202411

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-42170iXEAM10,YEAM15¥12,600202203-202411

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-42160iXEAM10,YEAM15¥12,600202203-202411

9010508448

main90105-08448¥80

9010508485

main90105-08485¥80

9011906984

main90119-06984¥60

9016850040

main90168-50040¥70

9415180600

main94151-80600¥60

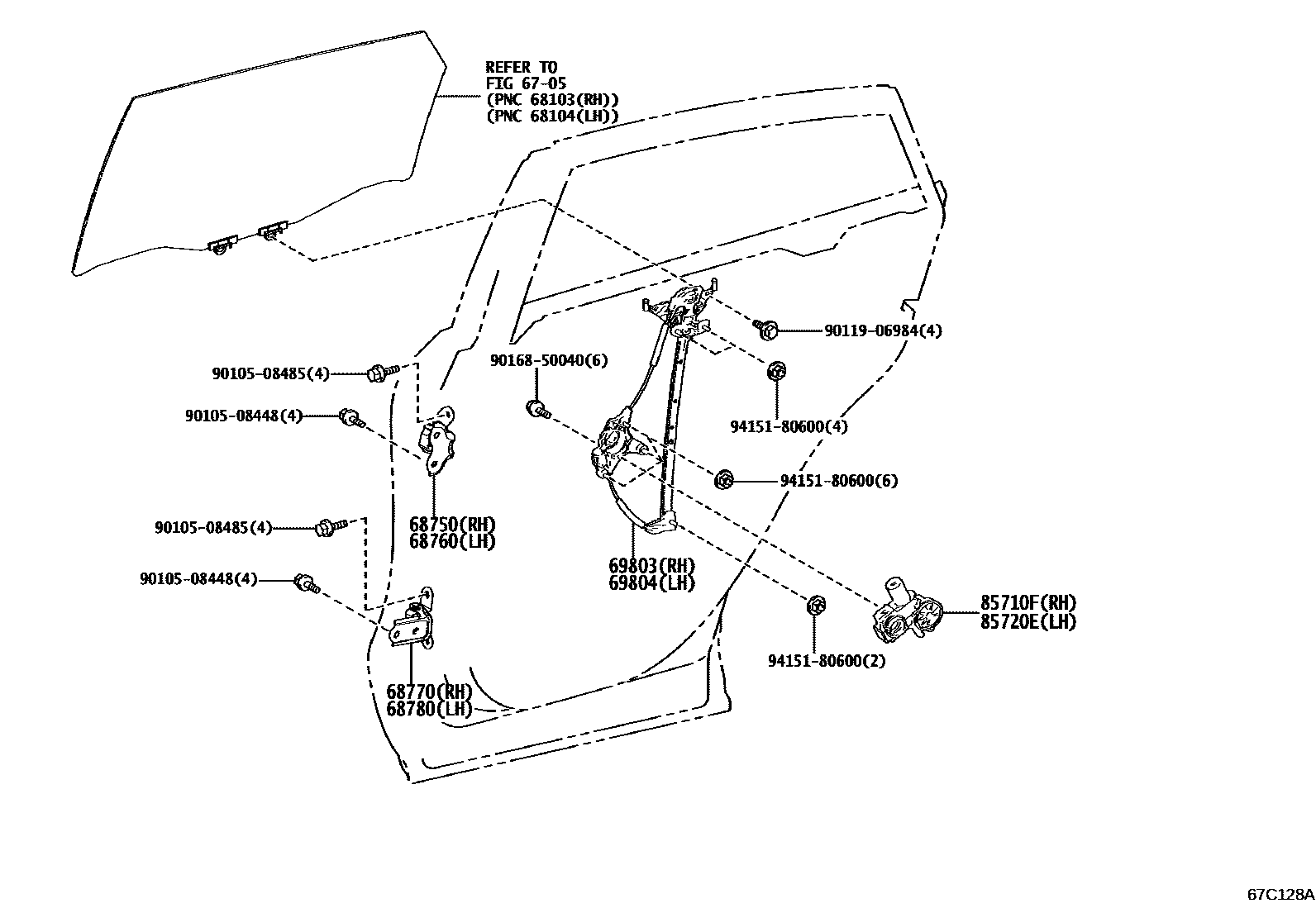

14 parts on this diagram · 1 diagram in section
