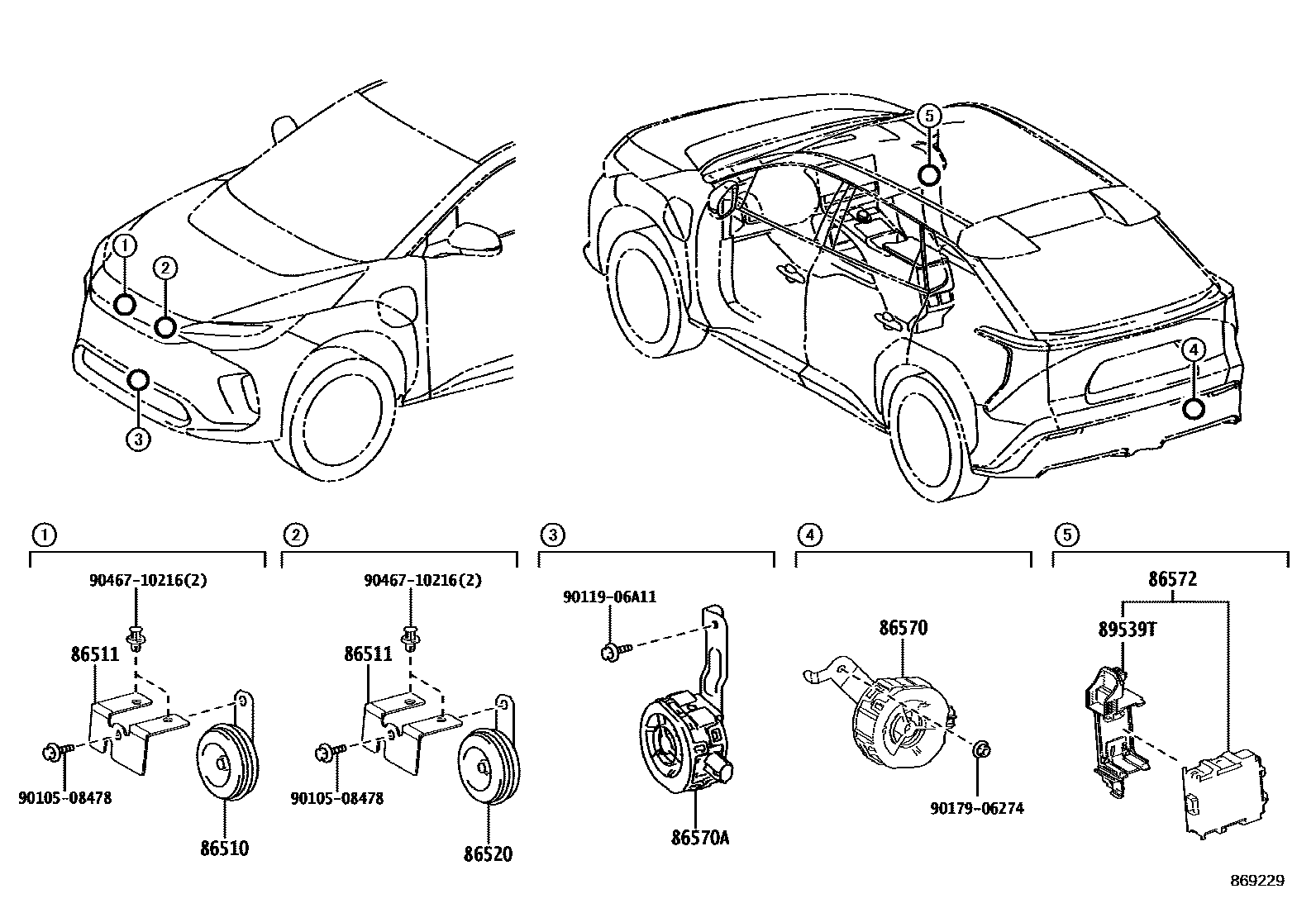

Toyota BZ4X (JPP) — HORN

86510HORN ASSY, HIGH PITCHED

main86510-48070iXEAM10,YEAM15¥2,020202203-202411

main86510-48070iXEAM10,YEAM15¥2,020202412

86511COVER, HIGH PITCHED HORN

main86511-42020iXEAM10,YEAM15¥1,010202412

main86511-42020iXEAM10,YEAM15¥1,010202203-202411

86520HORN ASSY, LOW PITCHED

main86520-47010iXEAM10,YEAM15¥2,190202412

main86520-47010iXEAM10,YEAM15¥2,190202203-202411

86570SPEAKER ASSY, VEHICLE APPROACHING

main86570-42050iXEAM10,YEAM15..EUR,TAIW202203-202411

main86570-42050iXEAM10,YEAM15..EUR,TAIW202412

86570ASPEAKER ASSY, VEHICLE APPROACHING, NO.2

main86570-42060iXEAM10,YEAM15..EUR,TAIW202412

main86570-42060iXEAM10,YEAM15..EUR,TAIW202203-202411

86572CONTROLLER, VEHICLE APPROACHING SPEAKER

main86572-42110iXEAM10,YEAM15202203-202310

sub86572-42380

main86572-42380iXEAM10,YEAM15..EUR,TAIW202412

main86572-42380iXEAM10,YEAM15..EUR,TAIW202311-202411

89539TBRACKET, COMPUTER

main89539-42100iXEAM10,YEAM15..EUR,TAIW¥990202412

main89539-42100iXEAM10,YEAM15..EUR,TAIW¥990202203-202411

9010508478

main90105-08478¥80

9011906A11

main90119-06A11¥60

9017906274

main90179-06274¥70

9046710216

main90467-10216¥100

11 parts on this diagram · 1 diagram in section
