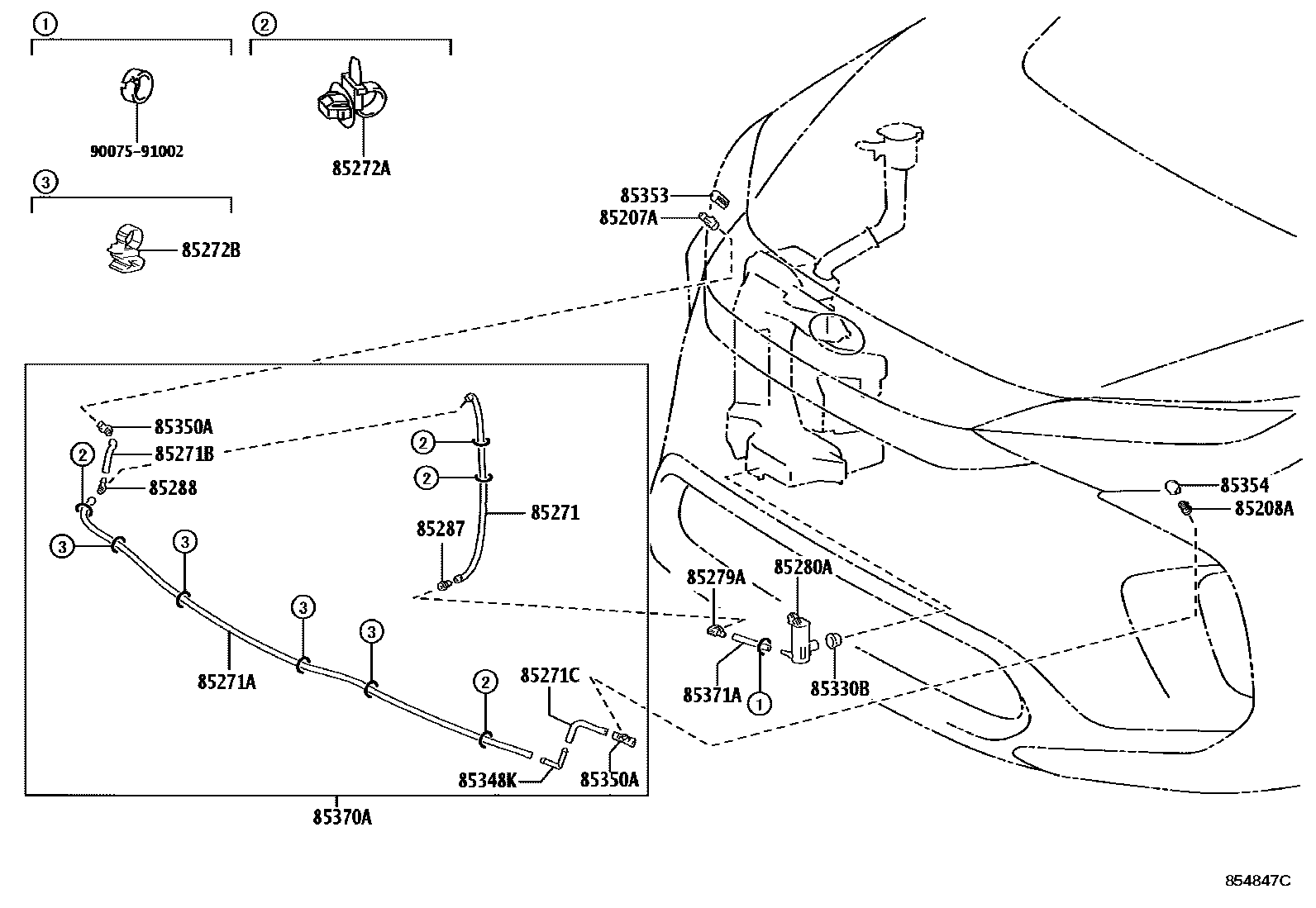

Toyota BZ4X (JPP) — HEADLAMP CLEANER
85207AACTUATOR SUB-ASSY, HEADLAMP WASHER, RH
HEADLAMP CLEANER-WITH
85208AACTUATOR SUB-ASSY, HEADLAMP WASHER, LH
HEADLAMP CLEANER-WITH
85271HOSE, HEADLAMP CLEANER, NO.1
L=500
L=500,HEADLAMP CLEANER-WITH
85271AHOSE, HEADLAMP CLEANER, NO.2
L=1500
L=1500,HEADLAMP CLEANER-WITH
85271BHOSE, HEADLAMP CLEANER, NO.3
L=120
L=120,HEADLAMP CLEANER-WITH
85271CHOSE, HEADLAMP CLEANER, NO.4
L=100
L=100,HEADLAMP CLEANER-WITH
85272ACLAMP, HEADLAMP CLEANER, NO.1
HEADLAMP CLEANER-WITH
85272BCLAMP, HEADLAMP CLEANER, NO.2
HEADLAMP CLEANER-WITH
85279AJOINT, HEADLAMP CLEANER HOSE
HEADLAMP CLEANER-WITH
85280AMOTOR AND PUMP ASSY, HEADLAMP CLEANER
HEADLAMP CLEANER-WITH
85287JOINT, HEADLAMP CLEANER HOSE, NO.1
HEADLAMP CLEANER-WITH
85288JOINT, HEADLAMP CLEANER HOSE NO.2
HEADLAMP CLEANER-WITH
85330BBUSH, HEADLAMP CLEANER WASHER JAR
HEADLAMP CLEANER-WITH
85348KJOINT, HEADLAMP CLEANER ELBOW, NO.1
HEADLAMP CLEANER-WITH
85350AJOINT, HEADLAMP CLEANER ELBOW, NO.3
HEADLAMP CLEANER-WITH
85353COVER, HEADLAMP WASHER, RH
HEADLAMP CLEANER-WITH
85354COVER, HEADLAMP WASHER, LH
HEADLAMP CLEANER-WITH
85370AHOSE ASSY, HEADLAMP CLEANER WASHER, NO.1
HEADLAMP CLEANER-WITH
85371AHOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT)
L=80
L=80,HEADLAMP CLEANER-WITH
9007591002
20 parts on this diagram · 1 diagram in section
