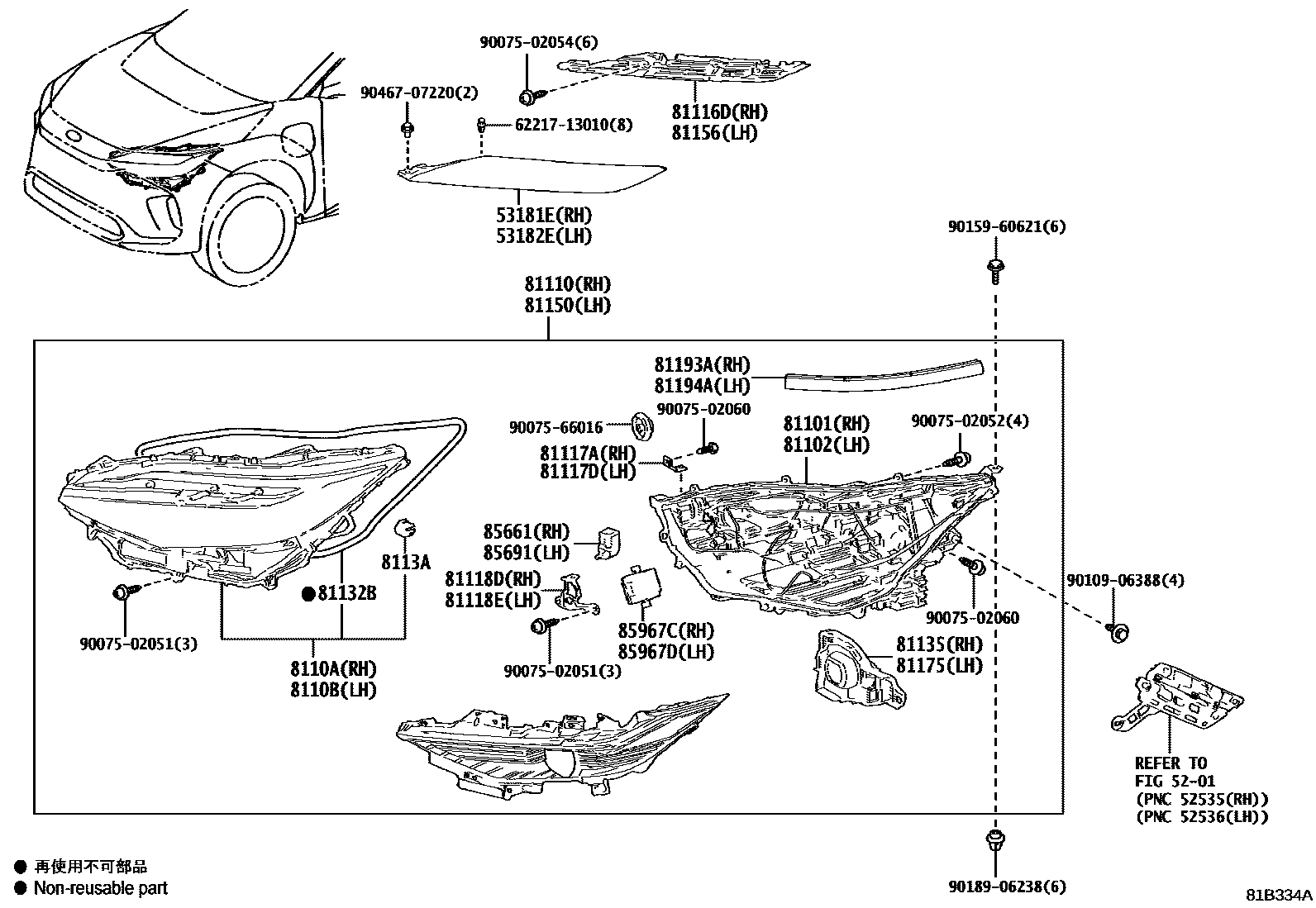

Toyota BZ4X (JPP) — HEADLAMP

0001 1SINGLE BEAM LED 0002 1TRINOCULAR FULL LED 0004 1

5201

53181ECOVER, HEADLAMP, RH

main52702-42010iXEAM10,YEAM15202203-202411

main52702-42010iXEAM10,YEAM15202412

53182ECOVER, HEADLAMP, LH

main52703-42010iXEAM10,YEAM15202203-202411

main52703-42010iXEAM10,YEAM15202412

81101HOUSING SUB-ASSY, HEADLAMP, RH

main8111B-42710iXEAM10..M;XEAM10..LHD..P;YEAM15..LHD..(M,P)202412

main8111B-42710iXEAM10,YEAM15..M;XEAM10,YEAM15..LHD..P202203-202411

main8111B-42C90iXEAM10,YEAM15..RHD..P..EUR¥19,400202203-202403

HEADLAMP-TRINOCULAR FULL LED & WITH(*AHS)

main8111B-42C90iXEAM10,YEAM15..H¥19,400202203-202311

main8111B-42F10iXEAM10,YEAM15..RHD..P..EUR¥17,600202403-202411

HEADLAMP-TRINOCULAR FULL LED & WITH(*AHS)

main8111B-42F10iXEAM10,YEAM15..LHD..H;XEAM10,YEAM15..RHD..(H,P)¥17,600202412

HEADLAMP-TRINOCULAR FULL LED & WITH(*AHS)

main8111B-42F10iXEAM10..ARL;XEAM10,YEAM15..H¥17,600202311-202411

81102HOUSING SUB-ASSY, HEADLAMP, LH

main8115B-42710iXEAM10,YEAM15..M;XEAM10,YEAM15..LHD..P202203-202411

main8115B-42710iXEAM10..M;XEAM10..LHD..P;YEAM15..LHD..(M,P)202412

main8115B-42C90iXEAM10,YEAM15..LHD..P..EUR¥19,400202203-202403

HEADLAMP-TRINOCULAR FULL LED & WITH(*AHS)

main8115B-42C90iXEAM10,YEAM15..H¥19,400202203-202311

main8115B-42F10iXEAM10,YEAM15..RHD..P..EUR¥17,600202403-202411

HEADLAMP-TRINOCULAR FULL LED & WITH(*AHS)

main8115B-42F10iXEAM10,YEAM15..LHD..H;XEAM10,YEAM15..RHD..(H,P)¥17,600202412

HEADLAMP-TRINOCULAR FULL LED & WITH(*AHS)

main8115B-42F10iXEAM10..ARL;XEAM10,YEAM15..H¥17,600202311-202411

8110ALENS SUB-ASSY, HEADLAMP, RH

main8110A-42710iXEAM10..RHD..M202412

main8110A-42710iXEAM10,YEAM15..RHD..M202203-202411

main8110A-42790iXEAM10,YEAM15..LHD..(M,P)202412

main8110A-42790iXEAM10,YEAM15..LHD..(M,P)202203-202411

main8110A-42C90iXEAM10,YEAM15..RHD..(H,P)¥25,000202412

main8110A-42C90iXEAM10,YEAM15..RHD..(H,P)¥25,000202203-202411

main8110A-42D00iXEAM10,YEAM15..LHD..P..EUR202203-202411

HEADLAMP-TRINOCULAR FULL LED & WITH(*AHS)

main8110A-42D00iXEAM10,YEAM15..LHD..H202412

HEADLAMP-TRINOCULAR FULL LED & WITH(*AHS)

8110BLENS SUB-ASSY, HEADLAMP, LH

main8110B-42710iXEAM10,YEAM15..RHD..M202203-202411

main8110B-42710iXEAM10..RHD..M202412

main8110B-42790iXEAM10,YEAM15..LHD..(M,P)202412

main8110B-42790iXEAM10,YEAM15..LHD..(M,P)202203-202411

main8110B-42C90iXEAM10,YEAM15..RHD..(H,P)¥25,000202203-202411

main8110B-42C90iXEAM10,YEAM15..RHD..(H,P)¥25,000202412

main8110B-42D00iXEAM10,YEAM15..LHD..H202412

HEADLAMP-TRINOCULAR FULL LED & WITH(*AHS)

main8110B-42D00iXEAM10,YEAM15..LHD..H202203-202411

HEADLAMP-TRINOCULAR FULL LED & WITH(*AHS)

81110HEADLAMP ASSY, RH

main81105-42710iXEAM10,YEAM15..RHD..M202203-202311

sub81105-42711

main81105-42711iXEAM10..RHD..M202311-202411

main81105-42711iXEAM10..RHD..M202412

main81105-42790iXEAM10,YEAM15..LHD..(M,P)202203-202311

sub81105-42791

main81105-42791iXEAM10,YEAM15..LHD..(M,P)202311-202411

main81105-42791iXEAM10,YEAM15..LHD..(M,P)202412

main81145-42C90iXEAM10,YEAM15..RHD..(H,P)¥180,000202203-202311

sub81145-42C91¥180,000

main81145-42C91iXEAM10,YEAM15..RHD..P..EUR¥180,000202311-202403

main81145-42D00iXEAM10,YEAM15..LHD..H202203-202311

HEADLAMP-TRINOCULAR FULL LED & WITH(*AHS)

sub81145-42D01

main81145-42F10iXEAM10,YEAM15..RHD..P..EUR¥163,000202403-202411

main81145-42F10iXEAM10,YEAM15..RHD..(H,P)¥163,000202412

main81145-42F10iXEAM10..ARL;XEAM10,YEAM15..RHD..H¥163,000202311-202411

main81145-42F20iXEAM10,YEAM15..LHD..H202311-202411

main81145-42F20iXEAM10,YEAM15..LHD..H202412

HEADLAMP-TRINOCULAR FULL LED & WITH(*AHS)

81116DRIM, HEAD LAMP, RH

main81116-42710iXEAM10,YEAM15¥2,700202412

main81116-42710iXEAM10,YEAM15¥2,700202203-202411

81117ABRACKET, HEADLAMP, RH

main81146-42710iXEAM10,YEAM15¥300202412

main81146-42710iXEAM10,YEAM15¥300202203-202411

81117DBRACKET, HEADLAMP, LH

main81186-42710iXEAM10,YEAM15¥300202412

main81186-42710iXEAM10,YEAM15¥300202203-202411

81118DBRACKET, HEADLAMP, RH NO.2

main81118-33J00iXEAM10,YEAM15..LHD..P..EUR¥2,000202203-202411

HEADLAMP-TRINOCULAR FULL LED & WITH(*AHS)

main81118-33J00iXEAM10,YEAM15..LHD..H;XEAM10,YEAM15..RHD..(H,P)¥2,000202412

HEADLAMP-TRINOCULAR FULL LED & WITH(*AHS)

main81118-42710iXEAM10..M;XEAM10..LHD..P;YEAM15..LHD..(M,P)202412

main81118-42710iXEAM10,YEAM15..M;XEAM10,YEAM15..LHD..P202203-202411

81118EBRACKET, HEADLAMP, LH NO.2

main81158-33J00iXEAM10,YEAM15..LHD..P..EUR¥2,000202203-202411

HEADLAMP-TRINOCULAR FULL LED & WITH(*AHS)

main81158-33J00iXEAM10,YEAM15..LHD..H;XEAM10,YEAM15..RHD..(H,P)¥2,000202412

HEADLAMP-TRINOCULAR FULL LED & WITH(*AHS)

main81158-42710iXEAM10,YEAM15..M;XEAM10,YEAM15..LHD..P202203-202411

main81158-42710iXEAM10..M;XEAM10..LHD..P;YEAM15..LHD..(M,P)202412

81132BGASKET, HEADLAMP LENS

main81132-48C30iXEAM10,YEAM15¥2,230202412

main81132-48C30iXEAM10,YEAM15¥2,230202203-202411

81135UNIT ASSY, HEADLAMP, RH

main81130-42710iXEAM10,YEAM15..RHD..M202203-202411

main81130-42710iXEAM10..RHD..M202412

main81130-42790iXEAM10,YEAM15..LHD..(M,P)202412

main81130-42790iXEAM10,YEAM15..LHD..(M,P)202203-202411

main81130-42C90iXEAM10,YEAM15..RHD..(H,P)¥70,200202412

main81130-42C90iXEAM10,YEAM15..RHD..(H,P)¥70,200202203-202411

main81130-42D00iXEAM10,YEAM15..LHD..H202412

HEADLAMP-TRINOCULAR FULL LED & WITH(*AHS)

main81130-42D00iXEAM10,YEAM15..LHD..P..EUR202203-202411

HEADLAMP-TRINOCULAR FULL LED & WITH(*AHS)

8113ALED, HEADLAMP FRONT TURN SIGNAL

main81536-12D30iXEAM10..M;XEAM10..LHD..P;YEAM15..LHD..(M,P)¥3,670202412

main81536-12D30iXEAM10,YEAM15..M;XEAM10,YEAM15..LHD..P¥3,670202203-202411

81150HEADLAMP ASSY, LH

main81106-42710iXEAM10,YEAM15..RHD..M202203-202311

sub81106-42711

main81106-42711iXEAM10..RHD..M202412

main81106-42711iXEAM10..RHD..M202311-202411

main81106-42790iXEAM10,YEAM15..LHD..(M,P)202203-202311

sub81106-42791

main81106-42791iXEAM10,YEAM15..LHD..(M,P)202311-202411

main81106-42791iXEAM10,YEAM15..LHD..(M,P)202412

main81185-42C90iXEAM10,YEAM15..RHD..(H,P)¥180,000202203-202311

sub81185-42C91¥180,000

main81185-42C91iXEAM10,YEAM15..RHD..P..EUR¥180,000202311-202403

main81185-42D00iXEAM10,YEAM15..LHD..P..EUR202203-202311

HEADLAMP-TRINOCULAR FULL LED & WITH(*AHS)

sub81185-42D01

main81185-42F10iXEAM10..ARL;XEAM10,YEAM15..RHD..H¥163,000202311-202411

main81185-42F10iXEAM10,YEAM15..RHD..(H,P)¥163,000202412

main81185-42F10iXEAM10,YEAM15..RHD..P..EUR¥163,000202403-202411

main81185-42F20iXEAM10,YEAM15..LHD..P..EUR202412

HEADLAMP-TRINOCULAR FULL LED & WITH(*AHS)

main81185-42F20iXEAM10,YEAM15..LHD..H202311-202411

81156RIM, HEADLAMP, LH

main81156-42710iXEAM10,YEAM15¥2,700202203-202411

main81156-42710iXEAM10,YEAM15¥2,700202412

81175UNIT ASSY, HEADLAMP, LH

main81170-42710iXEAM10..RHD..M202412

main81170-42710iXEAM10,YEAM15..RHD..M202203-202411

main81170-42790iXEAM10,YEAM15..LHD..(M,P)202412

main81170-42790iXEAM10,YEAM15..LHD..(M,P)202203-202411

main81170-42C90iXEAM10,YEAM15..RHD..(H,P)¥70,200202412

main81170-42C90iXEAM10,YEAM15..RHD..(H,P)¥70,200202203-202411

main81170-42D00iXEAM10,YEAM15..LHD..H202203-202411

HEADLAMP-TRINOCULAR FULL LED & WITH(*AHS)

main81170-42D00iXEAM10,YEAM15..LHD..H202412

HEADLAMP-TRINOCULAR FULL LED & WITH(*AHS)

81193APROTECTOR, HEADLAMP, RH

main81117-42710iXEAM10,YEAM15¥470202412

main81117-42710iXEAM10,YEAM15¥470202203-202411

81194APROTECTOR, HEADLAMP, LH

main81157-42710iXEAM10,YEAM15¥470202412

main81157-42710iXEAM10,YEAM15¥470202203-202411

85661MOTOR, HEADLAMP LEVELING, RH

main85661-45010iXEAM10,YEAM15..LHD..P..EUR¥10,500202412

HEADLAMP-TRINOCULAR FULL LED & WITH(*AHS)

main85661-45010iXEAM10,YEAM15..LHD..H;XEAM10,YEAM15..RHD..(H,P)¥10,500202203-202411

HEADLAMP-TRINOCULAR FULL LED & WITH(*AHS)

main85661-48050iXEAM10,YEAM15..LHD..(M,P)¥3,710202412

main85661-48050iXEAM10,YEAM15..M;XEAM10,YEAM15..LHD..P¥3,710202203-202411

85691MOTOR, HEADLAMP LEVELING, LH

main85661-48050iXEAM10,YEAM15..M;XEAM10,YEAM15..LHD..P¥3,710202203-202411

main85661-48050iXEAM10..RHD..M¥3,710202412

main85691-45010iXEAM10,YEAM15..LHD..H;XEAM10,YEAM15..RHD..(H,P)¥10,500202412

HEADLAMP-TRINOCULAR FULL LED & WITH(*AHS)

main85691-45010iXEAM10,YEAM15..LHD..H;XEAM10,YEAM15..RHD..(H,P)¥10,500202203-202411

HEADLAMP-TRINOCULAR FULL LED & WITH(*AHS)

85967CCOMPUTER, LIGHT CONTROL LED, RH

main85967-78070iXEAM10,YEAM15..LHD..H;XEAM10,YEAM15..RHD..(H,P)¥24,000202203-202307

HEADLAMP-TRINOCULAR FULL LED & WITH(*AHS)

main85967-78071iXEAM10,YEAM15..LHD..P..EUR¥23,900202307-202311

HEADLAMP-TRINOCULAR FULL LED & WITH(*AHS)

sub85967-78070¥24,000

main85967-78072iXEAM10,YEAM15..LHD..P..EUR¥21,700202311-202411

HEADLAMP-TRINOCULAR FULL LED & WITH(*AHS)

main85967-78072iXEAM10,YEAM15..LHD..H;XEAM10,YEAM15..RHD..(H,P)¥21,700202412

HEADLAMP-TRINOCULAR FULL LED & WITH(*AHS)

main8596A-42040iXEAM10,YEAM15..M;XEAM10,YEAM15..LHD..P202203-202311

sub8596A-42041

main8596A-42041iXEAM10..M;XEAM10..LHD..P;YEAM15..LHD..(M,P)202412

main8596A-42041iXEAM10..M;XEAM10..LHD..P;YEAM15..LHD..(M,P)202311-202411

85967DCOMPUTER, LIGHT CONTROL LED, LH

main85967-78060iXEAM10,YEAM15..LHD..P..EUR¥21,700202203-202307

HEADLAMP-TRINOCULAR FULL LED & WITH(*AHS)

main85967-78061iXEAM10,YEAM15..LHD..P..EUR¥23,900202307-202311

HEADLAMP-TRINOCULAR FULL LED & WITH(*AHS)

sub85967-78060¥21,700

main85967-78062iXEAM10,YEAM15..LHD..P..EUR¥21,700202412

HEADLAMP-TRINOCULAR FULL LED & WITH(*AHS)

main85967-78062iXEAM10,YEAM15..LHD..H;XEAM10,YEAM15..RHD..(H,P)¥21,700202311-202411

HEADLAMP-TRINOCULAR FULL LED & WITH(*AHS)

main8596A-42030iXEAM10,YEAM15..M;XEAM10,YEAM15..LHD..P202203-202311

sub8596A-42031

main8596A-42031iXEAM10..M;XEAM10..LHD..P;YEAM15..LHD..(M,P)202412

main8596A-42031iXEAM10..M;XEAM10..LHD..P;YEAM15..LHD..(M,P)202311-202411

6221713010COVER, RAIL ROOF SIDE, INNER CENTER

main62217-13010¥80

9007502051

main90075-02051¥60

9007502052

main90075-02052¥60

9007502054

main90075-02054¥70

9007502060

main90075-02060¥60

9007566016

main90075-66016¥610

9010906388

main90109-06388¥70

9015960621

main90159-60621¥60

9018906238

main90189-06238¥100

9046707220

main90467-07220¥80

35 parts on this diagram · 3 diagrams in section
