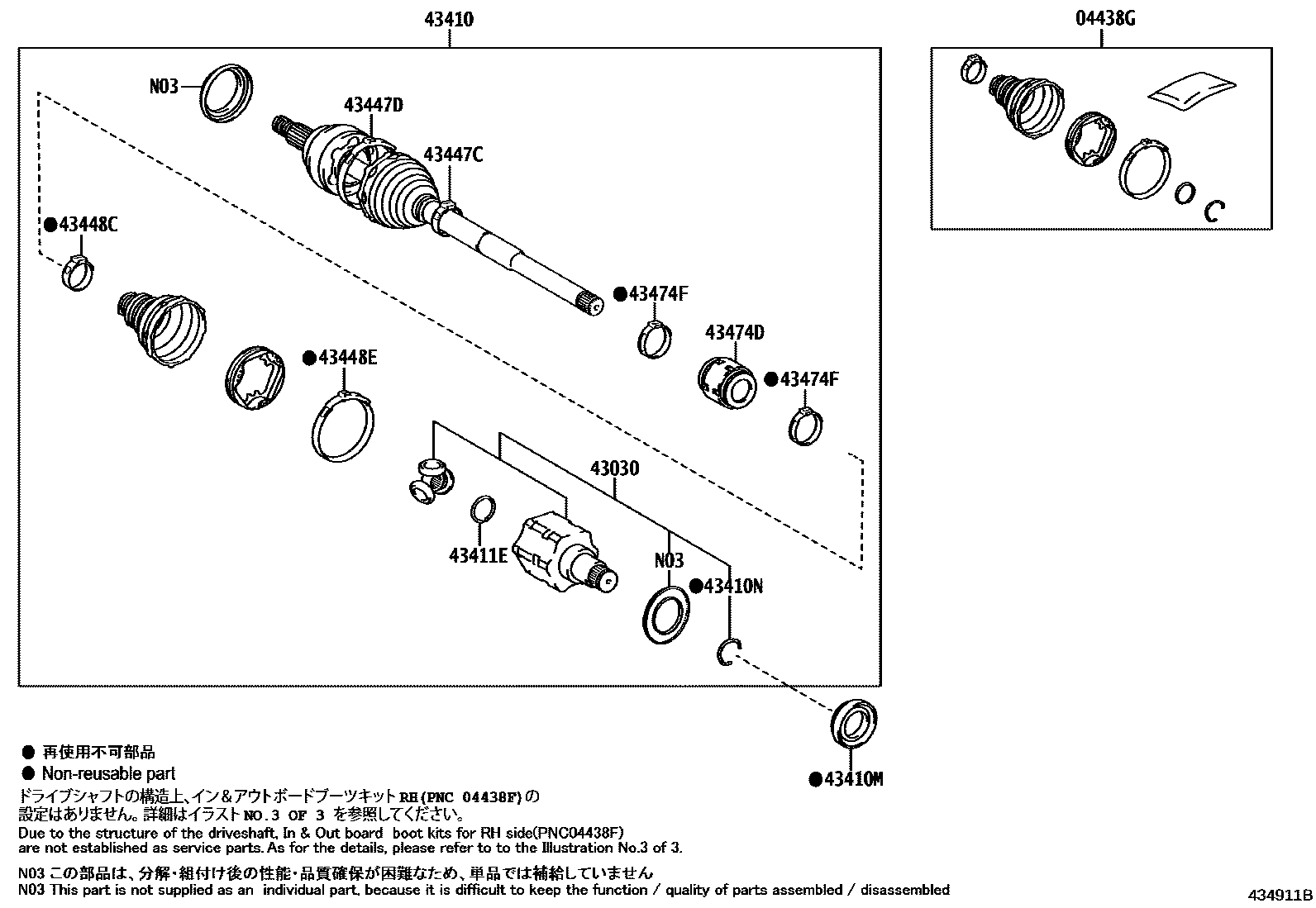

Toyota BZ4X (JPP) — FRONT DRIVE SHAFT

0001 1RH 0002 1LH 0003 1

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-42100iXEAM10,YEAM15¥5,100202203-202411

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43404-42020iXEAM10,YEAM15¥14,900202203-202411

43410SHAFT ASSY, FRONT DRIVE, RH

main43430-42010iXEAM10,YEAM15..EUR¥50,400202203-202411

main43430-42030iXEAM10,YEAM15..ARL,TAIW¥48,400202210-202411

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-50067iXEAM10,YEAM15¥610202203-202411

main90311-50071iXEAM10,YEAM15¥610202412

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90521-34003iXEAM10,YEAM15¥110202203-202411

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-24010iXEAM10,YEAM15¥40202203-202411

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-48140iXEAM10,YEAM15¥260202203-202411

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-42180iXEAM10,YEAM15¥700202203-202411

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-24020iXEAM10,YEAM15¥400202203-202411

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-42160iXEAM10,YEAM15¥700202203-202411

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-42100iXEAM10,YEAM15¥2,480202203-202411

43474FCLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)

main42345-78030iXEAM10,YEAM15¥200202203-202411

12 parts on this diagram · 3 diagrams in section
