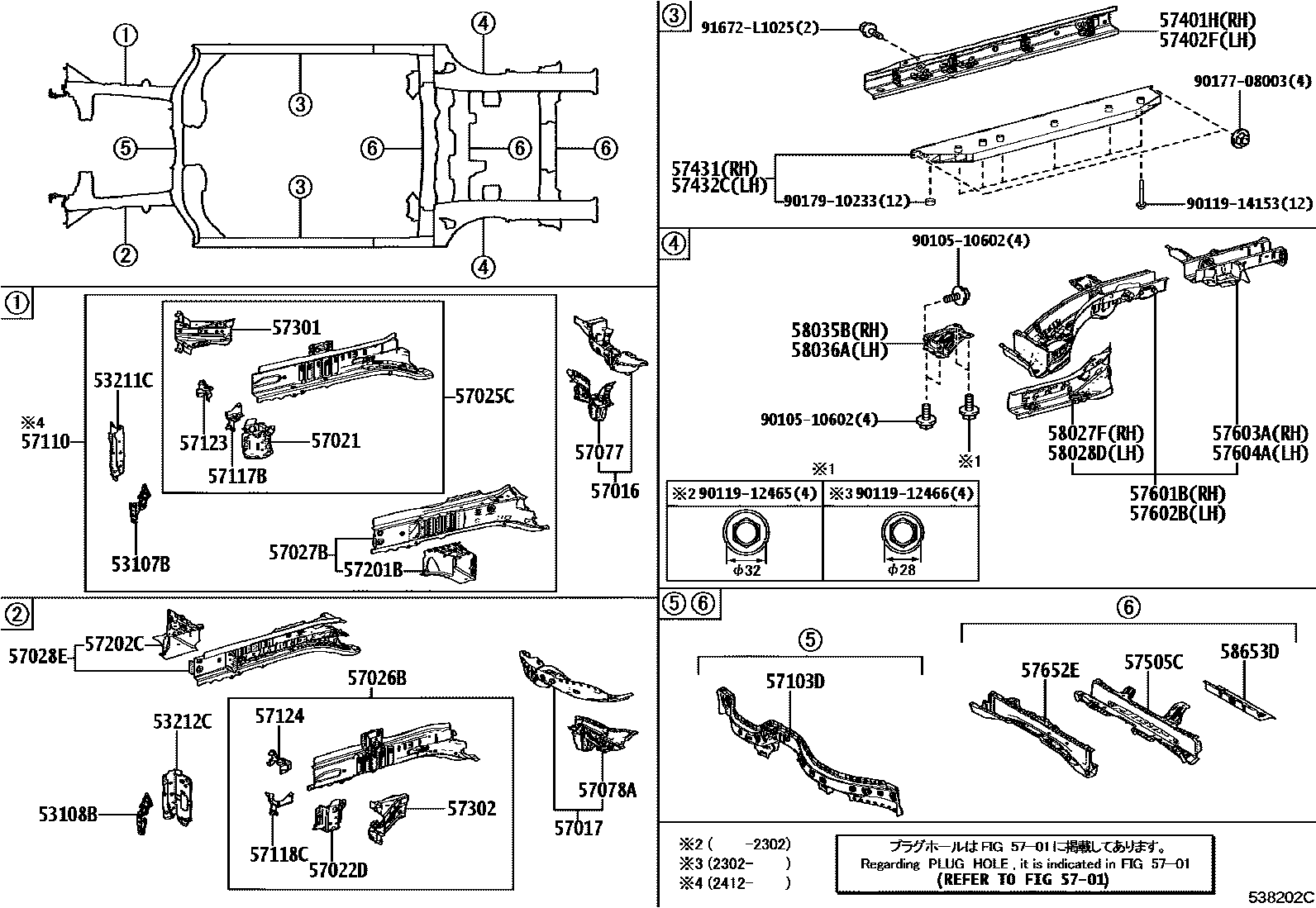

Toyota BZ4X (JPP) — FLOOR SIDE MEMBER
53107BBRACKET SUB-ASSY, RADIATOR GRILLE, LOWER RH
53108BBRACKET SUB-ASSY, RADIATOR GRILLE, LOWER LH
53211CSUPPORT, RADIATOR, RH
53212CSUPPORT, RADIATOR, LH
5701
57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH
57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH
57021BRACKET SUB-ASSY, BODY MOUNTING, NO.1 RH
57022DBRACKET SUB-ASSY, BODY MOUNTING, LH
57025CMEMBER SUB-ASSY, FRONT SIDE, OUTER RH
57026BMEMBER SUB-ASSY, FRONT SIDE, OUTER LH
57027BMEMBER SUB-ASSY, FRONT SIDE, INNER RH
57028EBRACKET SUB-ASSY, CONVERTER SUPPORT
57077BOX SUB-ASSY, TORQUE, FRONT RH
57078ABOX SUB-ASSY, TORQUE, FRONT LH
57103DCROSSMEMBER SUB-ASSY, FRONT SIDE MEMBER TO DASH PANEL
57110MEMBER ASSY, FRONT SIDE, RH
57117BREINFORCEMENT, FRONT BUMPER MOUNTING, RH
57118CRETAINER, FRONT BUMPER ARM, LH
57123SUPPORT, FRONT SIDE MEMBER, RH
57124SUPPORT, FRONT SIDE MEMBER, LH
57201BEXTENSION SUB-ASSY, FRONT SIDE MEMBER, RH
57202CEXTENSION SUB-ASSY, FRONT SIDE MEMBER, LH
57301OUTRIGGER SUB-ASSY, NO.1 RH
57302OUTRIGGER SUB-ASSY, NO.1, LH
57401HMEMBER SUB-ASSY, FLOOR SIDE, INNER RH
57402FMEMBER SUB-ASSY, FLOOR SIDE, INNER LH
57431REINFORCEMENT, CENTER FLOOR, NO.1 RH
57432CREINFORCEMENT, CENTER FLOOR, NO.1 LH
57505CREINFORCEMENT SUB-ASSY, FRONT FLOOR UNDER
57601BMEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT RH
57602BMEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT LH
57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH
57604AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH
57652EMEMBER, REAR FLOOR CROSS, NO.1
58027FPANEL SUB-ASSY, CENTER FLOOR SIDE, RH
58028DPANEL SUB-ASSY, CENTER FLOOR SIDE, LH
58035BBRACE SUB-ASSY, REAR FLOOR PANEL, RH
58036ABRACE SUB-ASSY, REAR FLOOR PANEL, LH
58653DSHEET, REAR FLOOR SILENCER, NO.2
9010510602
9011912465
9011912466
9011914153
9017708003
9017910233
91672L1025
47 parts on this diagram · 1 diagram in section
