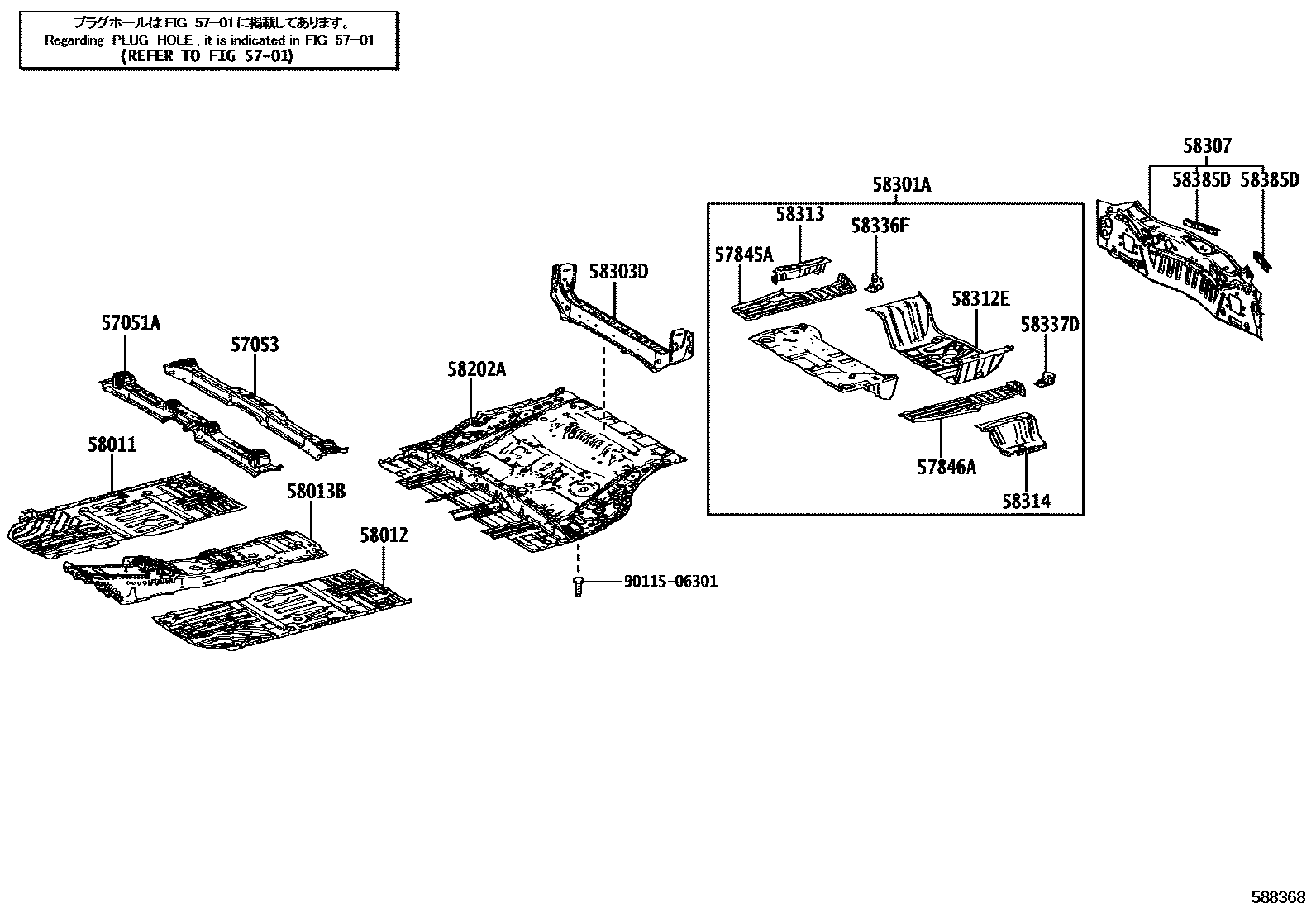

Toyota BZ4X (JPP) — FLOOR PAN & LOWER BACK PANEL

5701

57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-42060iXEAM10,YEAM15¥18,000202203-202411

57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH

main57053-42030iXEAM10,YEAM15¥10,700202203-202411

57845AREINFORCEMENT, REAR NO.2 SEAT LEG, REAR RH

main57845-42020iXEAM10,YEAM15¥4,030202203-202411

57846AREINFORCEMENT, REAR NO.2 SEAT LEG, REAR LH

main57846-42020iXEAM10,YEAM15¥4,030202203-202411

58011PANEL SUB-ASSY, FRONT FLOOR SIDE, RH

main58011-42100iXEAM10,YEAM15¥18,800202203-202411

58012PANEL SUB-ASSY, FRONT FLOOR SIDE, LH

main58012-42100iXEAM10,YEAM15¥18,800202203-202411

58013BPANEL SUB-ASSY, FRONT FLOOR, CENTER

main58013-42070iXEAM10,YEAM15¥36,100202203-202411

58202APAN SUB-ASSY, CENTER FLOOR, FRONT

main58202-42060iXEAM10,YEAM15¥43,500202203-202411

58301APANEL SUB-ASSY, REAR FLOOR

main58301-42330iXEAM10,YEAM15¥21,700202203-202411

58303DPANEL SUB-ASSY, REAR FLOOR PARTITION

main58303-42030iXEAM10,YEAM15¥9,300202203-202411

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-42060iXEAM10,YEAM15¥13,400202203-202411

58312EPANEL, REAR FLOOR, REAR

main58312-42020iXEAM10,YEAM15¥7,000202203-202411

58313PANEL, REAR FLOOR SIDE, RH

main58313-42090iXEAM10,YEAM15¥1,850202203-202411

58314PANEL, REAR FLOOR SIDE, LH

main58314-42080iXEAM10,YEAM15¥1,850202203-202411

58336FREINFORCEMENT, REAR FLOOR PAN, RH

main58336-42100iXEAM10,YEAM15¥1,290202203-202411

58337DREINFORCEMENT, REAR FLOOR PAN, LH

main58337-42010iXEAM10,YEAM15¥1,290202203-202411

58385DBRACKET, REAR BUMPER COVER

main58385-42030iXEAM10,YEAM15¥570202203-202411

9011506301

main90115-06301¥60

19 parts on this diagram · 1 diagram in section
