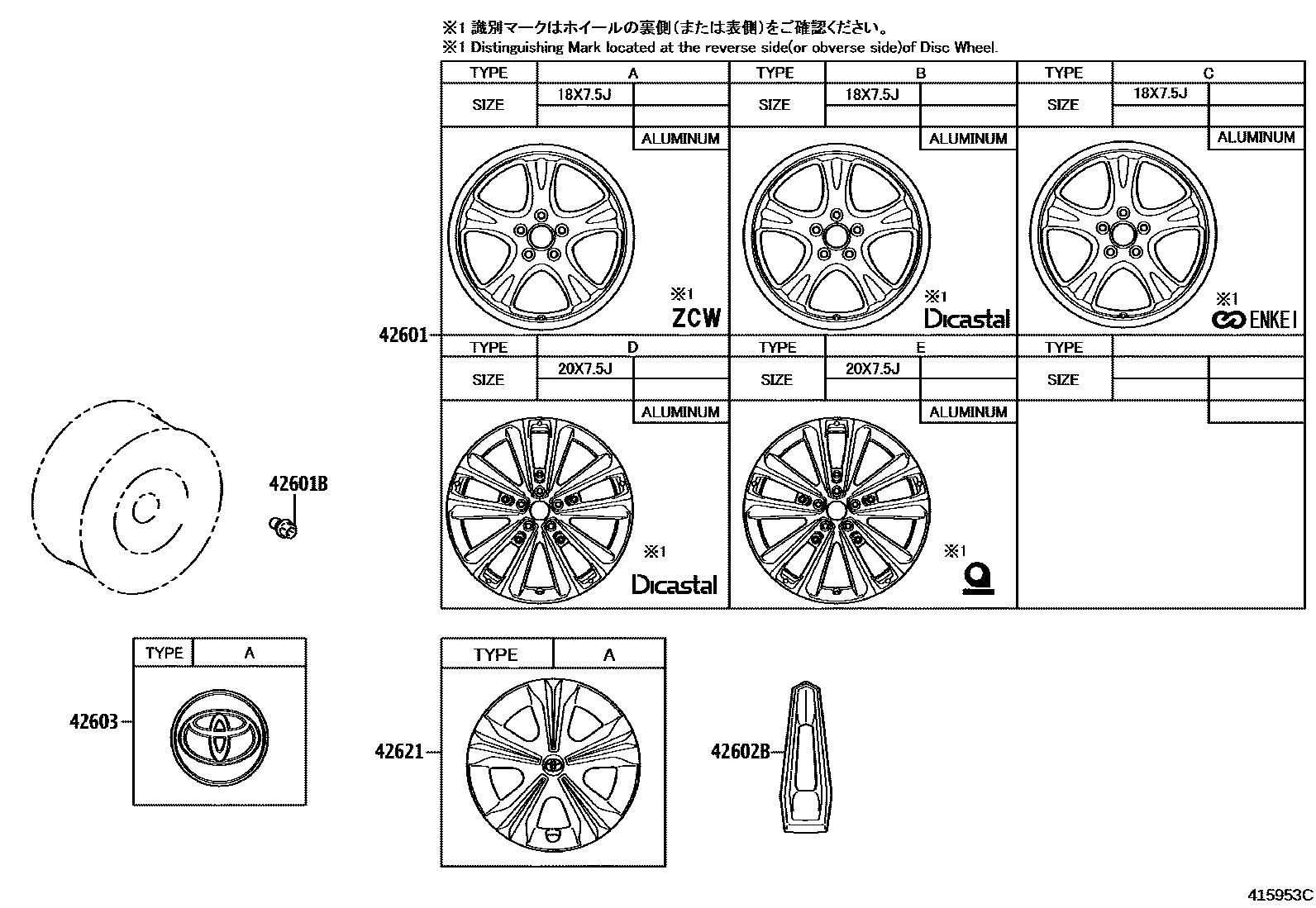

Toyota BZ4X (JPP) — DISC WHEEL & WHEEL CAP
42601WHEEL, DISC
20X7.5J,#,ISRAEL SPEC&TIRE & DISC WHEEL-235/50R20,SUMMER TIRE,ALUMINUM,7.5J,TYPE D:REFER ILLUST.
20X7.5J,#,TYPE D:REFER ILLUST.
20X7.5J,#,HONG KONG SPEC,TYPE D:REFER ILLUST.
18X7.5J,#,TIRE & DISC WHEEL-235/60R18,SUMMER TIRE,ALUMINUM,7.5J,TYPE C:REFER ILLUST.
18X7.5J,#,TYPE C:REFER ILLUST.
20X7.5J,#,TIRE & DISC WHEEL-235/50R20,SUMMER TIRE,ALUMINUM,7.5J,TYPE E:REFER ILLUST.
sub42611-42881
20X7.5J,#,TURKEY SPEC&TIRE & DISC WHEEL-235/50R20,SUMMER TIRE,ALUMINUM,7.5J,TYPE E:REFER ILLUST.
sub42611-42881
20X7.5J,#,TYPE E:REFER ILLUST.
sub42611-42881
20X7.5J,#,ISRAEL SPEC&TIRE & DISC WHEEL-235/50R20,SUMMER TIRE,ALUMINUM,7.5J,TYPE E:REFER ILLUST.
sub42611-42881
20X7.5J,#,TIRE & DISC WHEEL-235/50R20,SUMMER TIRE,ALUMINUM,7.5J,TYPE E:REFER ILLUST.
20X7.5J,#,TURKEY SPEC&TIRE & DISC WHEEL-235/50R20,SUMMER TIRE,ALUMINUM,7.5J,TYPE E:REFER ILLUST.
20X7.5J,#,TYPE E:REFER ILLUST.
42601BBOLT, HUB (FOR AXLE)
42602BCAP SUB-ASSY, WHEEL
TURKEY SPEC&TIRE & DISC WHEEL-235/50R20,SUMMER TIRE,ALUMINUM,7.5J
ISRAEL SPEC&TIRE & DISC WHEEL-235/50R20,SUMMER TIRE,ALUMINUM,7.5J
TIRE & DISC WHEEL-235/50R20,SUMMER TIRE,ALUMINUM,7.5J
42603ORNAMENT SUB-ASSY, WHEEL HUB
*ALU,TIRE & DISC WHEEL-235/50R20,SUMMER TIRE,ALUMINUM,7.5J,TYPE A:REFER ILLUST.
*ALU,TYPE A:REFER ILLUST.
42621CAP, WHEEL
TIRE & DISC WHEEL-235/60R18,SUMMER TIRE,ALUMINUM,7.5J,TYPE A:REFER ILLUST.
TYPE A:REFER ILLUST.
5 parts on this diagram · 3 diagrams in section
