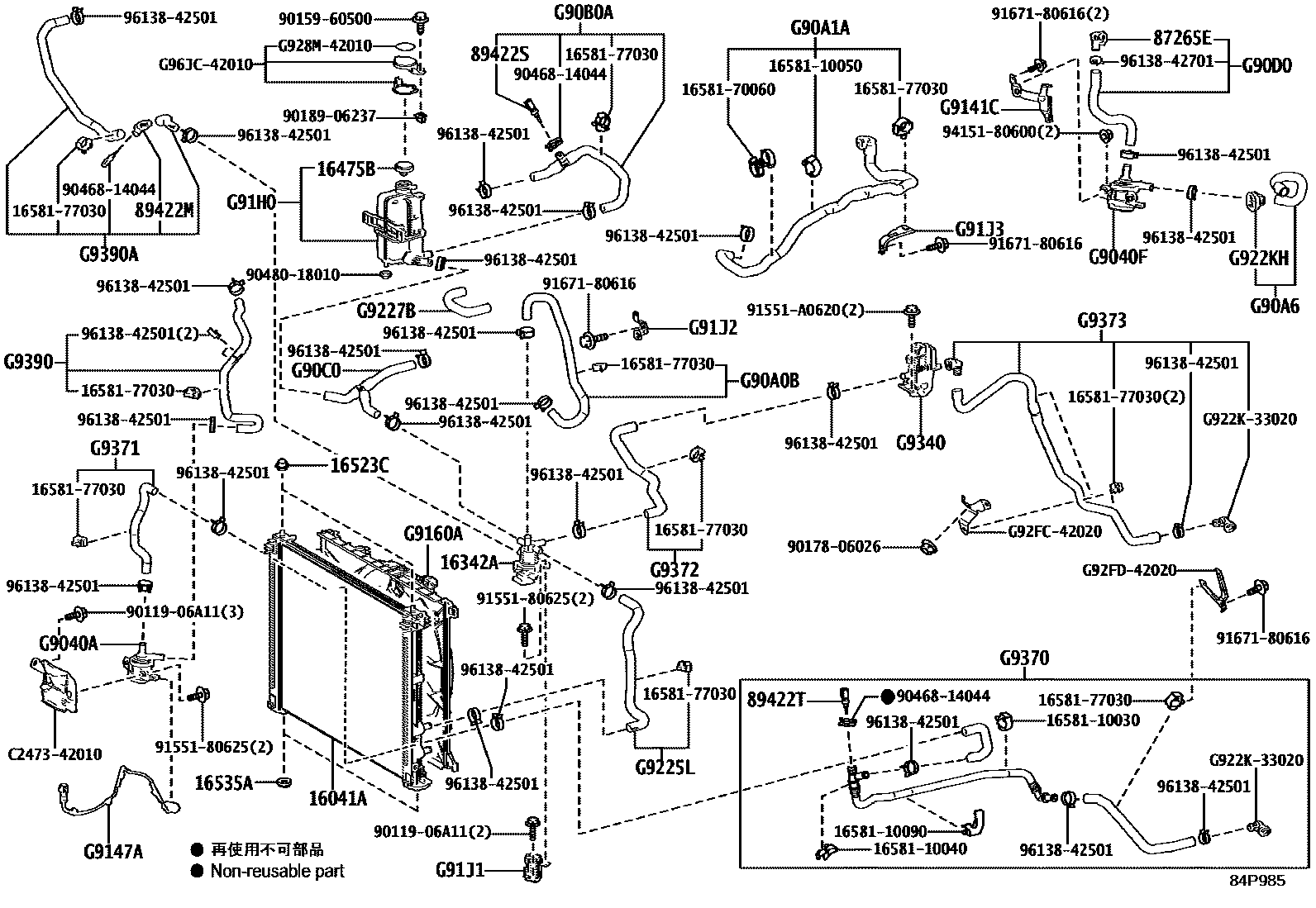

Toyota BZ4X (JPP) — BEV COOLING
16041ARADIATOR SUB-ASSY, L/CAP
16342AVALVE, WATER CONTROL
16475BCAP, RESERVE TANK
16523CCUSHION, RADIATOR SUPPORT
16535ASUPPORT, RADIATOR, LOWER
87265ECONNECTOR, WATER HOSE
89422MSENSOR, WATER TEMPERATURE
89422SSENSOR, WATER TEMPERATURE, NO.2
89422TSENSOR, WATER TEMPERATURE, NO.3
G9040APUMP ASSY, WATER W/MOTOR
G9040FPUMP ASSY, WATER W/MOTOR, NO.2
G90A0BHOSE ASSY, INVERTER COOLING, NO.1
G90A1AHOSE SUB-ASSY, INVERTER COOLING, NO.1
G90A6HOSE SUB-ASSY, INVERTER COOLING, NO.6
G90B0AHOSE ASSY, INVERTER COOLING, NO.2
G90C0HOSE ASSY, INVERTER COOLING, NO.3
G90D0HOSE ASSY, INVERTER COOLING, NO.4
G9141CBRACKET, EV WATER PUMP
G9160AFAN ASSY, INVERTER COOLING W/MOTOR
G91H0TANK ASSY, BATTERY RESERVE
G91J1BRACKET, INVERTER COOLING, NO.1
G91J2BRACKET, INVERTER COOLING, NO.2
G91J3BRACKET, INVERTER COOLING, NO.3
G9225LHOSE, INVERTER COOLING, NO.1
G9227BHOSE, INVERTER COOLING, NO.3
G922KHCONNECTOR, WATER HOSE, NO.1
G9340HEATER ASSY, BATTERY COOLANT
G9370HOSE ASSY, EV WATER BY-PASS
G9371HOSE, EV WATER BY-PASS, NO.1
G9372HOSE, EV WATER BY-PASS, NO.2
G9373HOSE, EV WATER BY-PASS, NO.3
G9390HOSE ASSY, EV WATER PUMP, NO.1
G9390AHOSE ASSY, EV WATER PUMP, NO.2
1658110030CLAMP, HOSE(FOR WATER HOSE)
1658110040CLAMP, HOSE(FOR WATER HOSE)
1658110050CLAMP, HOSE(FOR WATER HOSE)
1658110090CLAMP, HOSE(FOR WATER HOSE)
1658170060CLAMP, HOSE(FOR WATER HOSE)
1658177030CLAMP, HOSE(FOR WATER HOSE)
9011906A11
9015960500
9017806026
9018906237
9046814044
9048018010
9155180625
91551A0620
9167180616
9415180600
9613842501
9613842701
C247342010
G922K33020CONNECTOR, HYBRID WATER HOSE
G928M42010LABEL, BATTERY COOLANT CAUTION
G92FC42020BRACKET, BATTERY COOLING, NO.1
G92FD42020BRACKET, BATTERY COOLING, NO.2
G96JC42010
58 parts on this diagram · 7 diagrams in section
