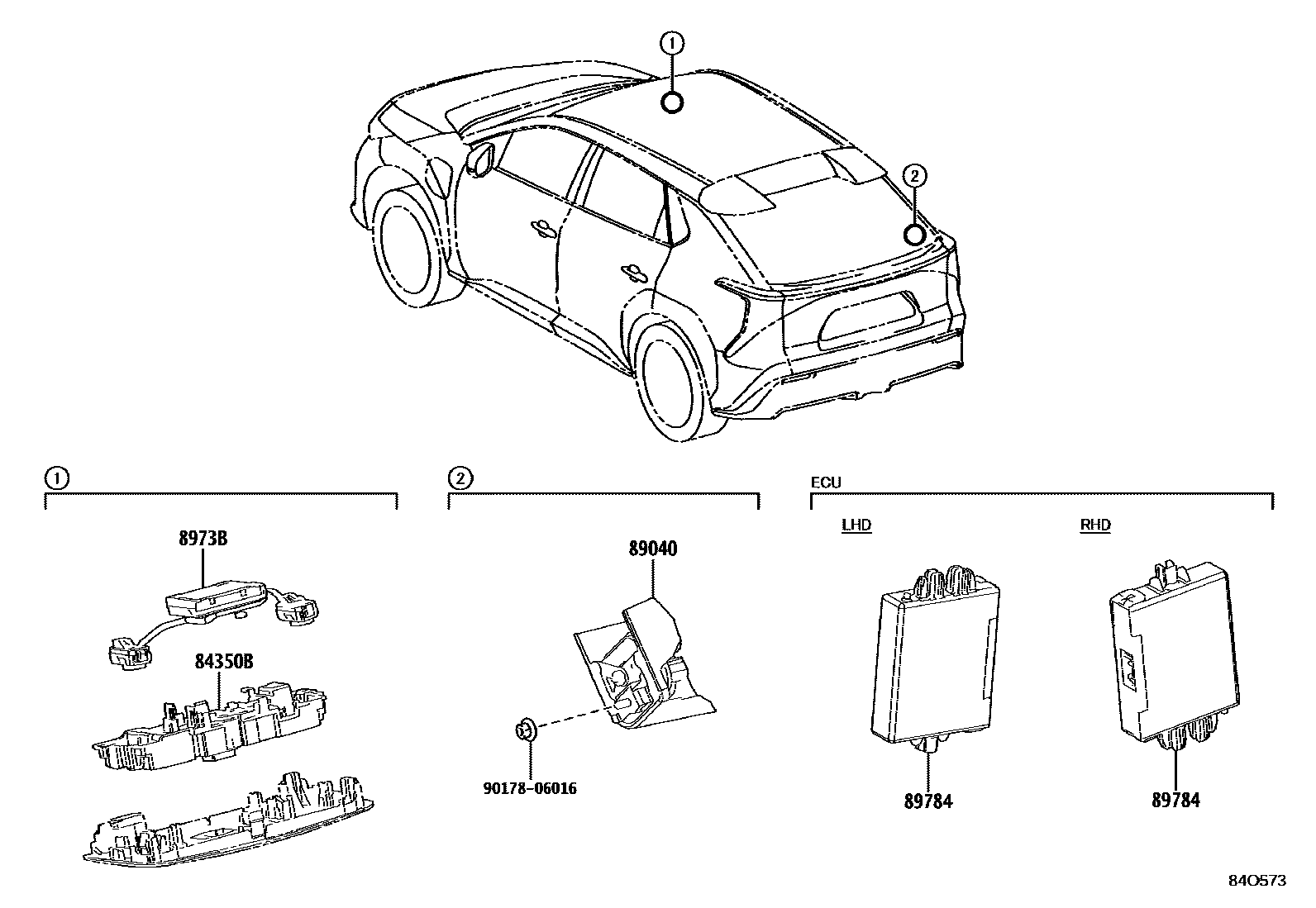

Toyota BZ4X (JPP) — ANTI-THEFT DEVICE

84350BSWITCH ASSY, THEFT WARNING SENSOR

main84350-42020iXEAM10,YEAM15..RHD..EUR¥2,320202412

ANTI-THEFT SYSTEM-ALARM, DOUBLE-LOCK

main84350-42020iXEAM10,YEAM15..RHD..EUR¥2,320202412

ANTI-THEFT SYSTEM-ALARM, DOUBLE-LOCK, GLASS SENSOR

main84350-42020iXEAM10,YEAM15..RHD..EUR¥2,320202203-202411

ANTI-THEFT SYSTEM-ALARM, DOUBLE-LOCK

main84350-42020iXEAM10,YEAM15..RHD..EUR¥2,320202203-202411

ANTI-THEFT SYSTEM-ALARM, DOUBLE-LOCK, GLASS SENSOR

89040SIREN ASSY, THEFT WARNING

main89040-42060iXEAM10,YEAM15..RHD..EUR¥19,900202412

ANTI-THEFT SYSTEM-ALARM, DOUBLE-LOCK

main89040-42060iXEAM10,YEAM15..RHD..EUR¥19,900202412

ANTI-THEFT SYSTEM-ALARM, DOUBLE-LOCK, GLASS SENSOR

main89040-42060iXEAM10,YEAM15..RHD..EUR¥19,900202203-202411

ANTI-THEFT SYSTEM-ALARM, DOUBLE-LOCK

main89040-42060iXEAM10,YEAM15..RHD..EUR¥19,900202203-202411

ANTI-THEFT SYSTEM-ALARM, DOUBLE-LOCK, GLASS SENSOR

8973BSENSOR, THEFT WARNING ULTRASONIC & TILT

main8973B-42030iXEAM10,YEAM15..RHD..EUR¥20,700202412

ANTI-THEFT SYSTEM-ALARM, DOUBLE-LOCK

main8973B-42030iXEAM10,YEAM15..RHD..EUR¥20,700202412

ANTI-THEFT SYSTEM-ALARM, DOUBLE-LOCK, GLASS SENSOR

main8973B-42030iXEAM10,YEAM15..RHD..EUR¥20,700202203-202411

ANTI-THEFT SYSTEM-ALARM, DOUBLE-LOCK

main8973B-42030iXEAM10,YEAM15..RHD..EUR¥20,700202203-202411

ANTI-THEFT SYSTEM-ALARM, DOUBLE-LOCK, GLASS SENSOR

89784COMPUTER, IMMOBILIZER CODE

main89784-60210iXEAM10,YEAM15..RHD..EUR202412

main89784-60220iXEAM10,YEAM15..ARL,TAIW;XEAM10,YEAM15..LHD..EUR¥4,190202412

main89784-K0021iXEAM10,YEAM15..RHD..EUR¥4,190202203-202411

main89784-V1010iXEAM10,YEAM15..ARL,TAIW;XEAM10,YEAM15..LHD..EUR¥4,190202203-202411

9017806016

main90178-06016¥60

5 parts on this diagram · 1 diagram in section
