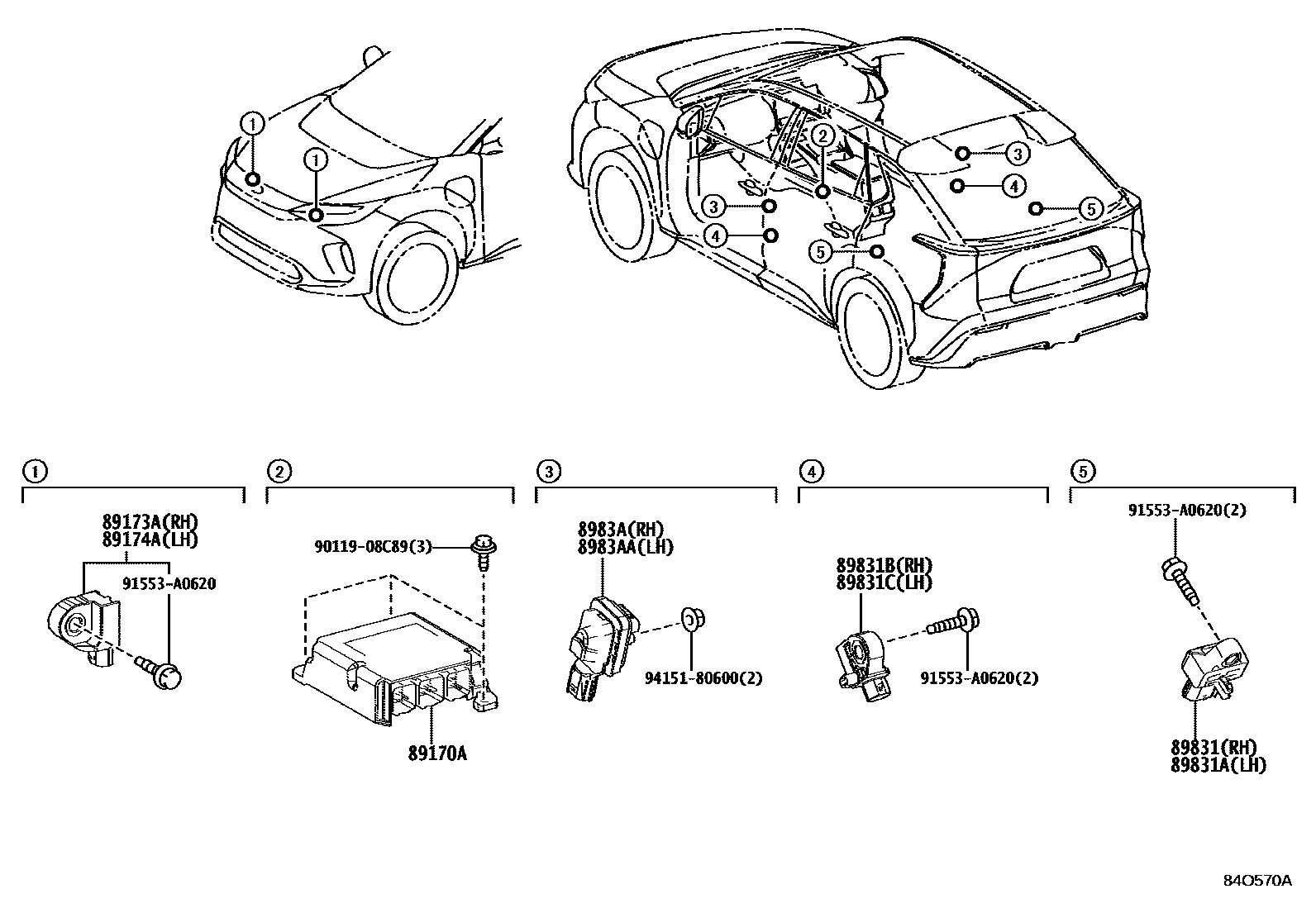

Toyota BZ4X (JPP) — AIR BAG

89170ACOMPUTER ASSY, AIRBAG

main89170-42C70iXEAM10..TAIW¥25,400202412

*614

main89170-42C70iXEAM10..TAIW¥25,400202311-202411

*614

main89170-42E00iXEAM10,YEAM15..ARL,EUR¥25,400202311-202411

*614

main89170-42E00iXEAM10,YEAM15..ARL,EUR¥25,400202412

*614

main89170-42E50iXEAM10,YEAM15¥37,200202203-202311

*614

89173ASENSOR, AIRBAG, FRONT RH

main89173-59415iXEAM10,YEAM15¥4,110202412

main89173-59415iXEAM10,YEAM15¥4,110202203-202411

89174ASENSOR, AIRBAG, FRONT LH

main89173-59415iXEAM10,YEAM15¥4,110202412

main89173-59415iXEAM10,YEAM15¥4,110202203-202411

89831SENSOR, SIDE AIRBAG, RH, NO.1

main89831-52130iXEAM10,YEAM15¥4,110202203-202311

89831ASENSOR, SIDE AIRBAG, LH, NO.1

main89831-52130iXEAM10,YEAM15¥4,110202203-202311

89831BSENSOR, SIDE AIRBAG, RH, NO.2

main89831-52100iXEAM10,YEAM15¥4,110202412

main89831-52100iXEAM10,YEAM15¥4,110202203-202411

89831CSENSOR, SIDE AIRBAG, LH, NO.2

main89831-52100iXEAM10,YEAM15¥4,110202412

main89831-52100iXEAM10,YEAM15¥4,110202203-202411

8983ASENSOR, SIDE AIRBAG PRESSURE, RH

main8983A-52011iXEAM10,YEAM15¥4,110202412

main8983A-52011iXEAM10,YEAM15¥4,110202203-202411

8983AASENSOR, SIDE AIRBAG PRESSURE, LH

main8983A-52011iXEAM10,YEAM15¥4,110202412

main8983A-52011iXEAM10,YEAM15¥4,110202203-202411

9011908C89

main90119-08C89¥80

91553A0620

main91553-A0620¥60

9415180600

main94151-80600¥60

12 parts on this diagram · 1 diagram in section
