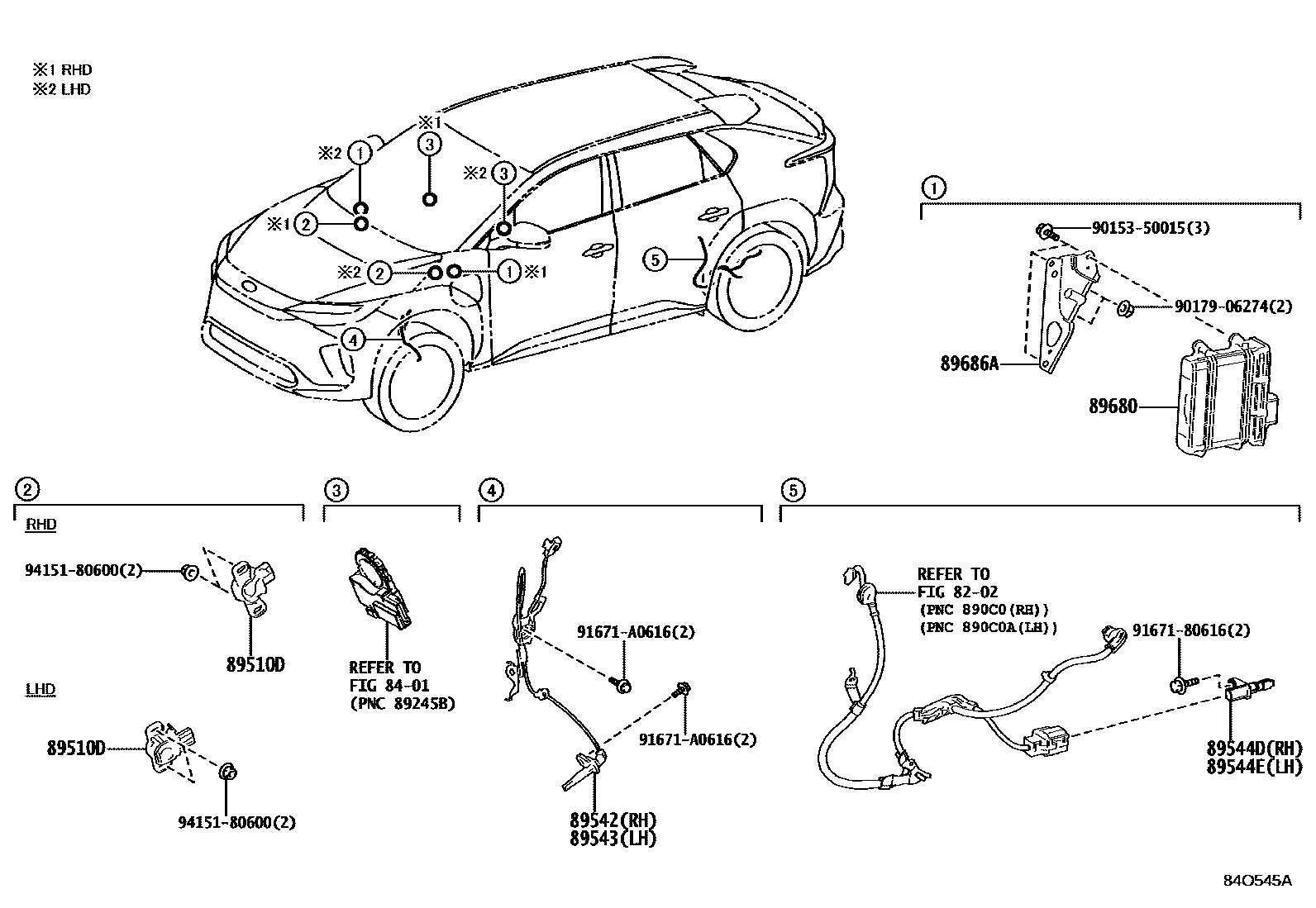

Toyota BZ4X (JPP) — ABS & VSC

8202

8401

89510DSENSOR ASSY, BRAKE PEDAL STROKE

main89510-42010iXEAM10,YEAM15..LHD¥7,900202203-202411

main89510-42020iXEAM10,YEAM15..RHD¥7,900202203-202411

89542SENSOR, SPEED, FRONT RH

main89542-42090iXEAM10,YEAM15¥8,100202203-202411

89543SENSOR, SPEED, FRONT LH

main89543-42090iXEAM10,YEAM15¥8,100202203-202411

89544DSENSOR, SKID CONTROL, REAR RH

main89544-52050iYEAM15¥8,400202203-202411

89544ESENSOR, SKID CONTROL, REAR LH

main89544-52050iYEAM15¥8,400202203-202411

89680SUPPLY ASSY, BRAKE CONTROL POWER

main89680-48020iXEAM10,YEAM15..H..EUR¥24,900202203-202411

main89680-48030iXEAM10,YEAM15..RHD..H..EUR¥24,900202412

HONG KONG SPEC

main89680-48030iYEAM15..ARL;XEAM10,YEAM15..M,P¥24,900202203-202411

89686ABRACKET, BRAKE CONTROL POWER SUPPLY, NO.1

main89686-42010iXEAM10,YEAM15¥910202203-202411

9015350015

main90153-50015¥60

9017906274

main90179-06274¥70

9167180616

main91671-80616¥60

91671A0616

main91671-A0616¥60

9415180600

main94151-80600¥60

14 parts on this diagram · 1 diagram in section
