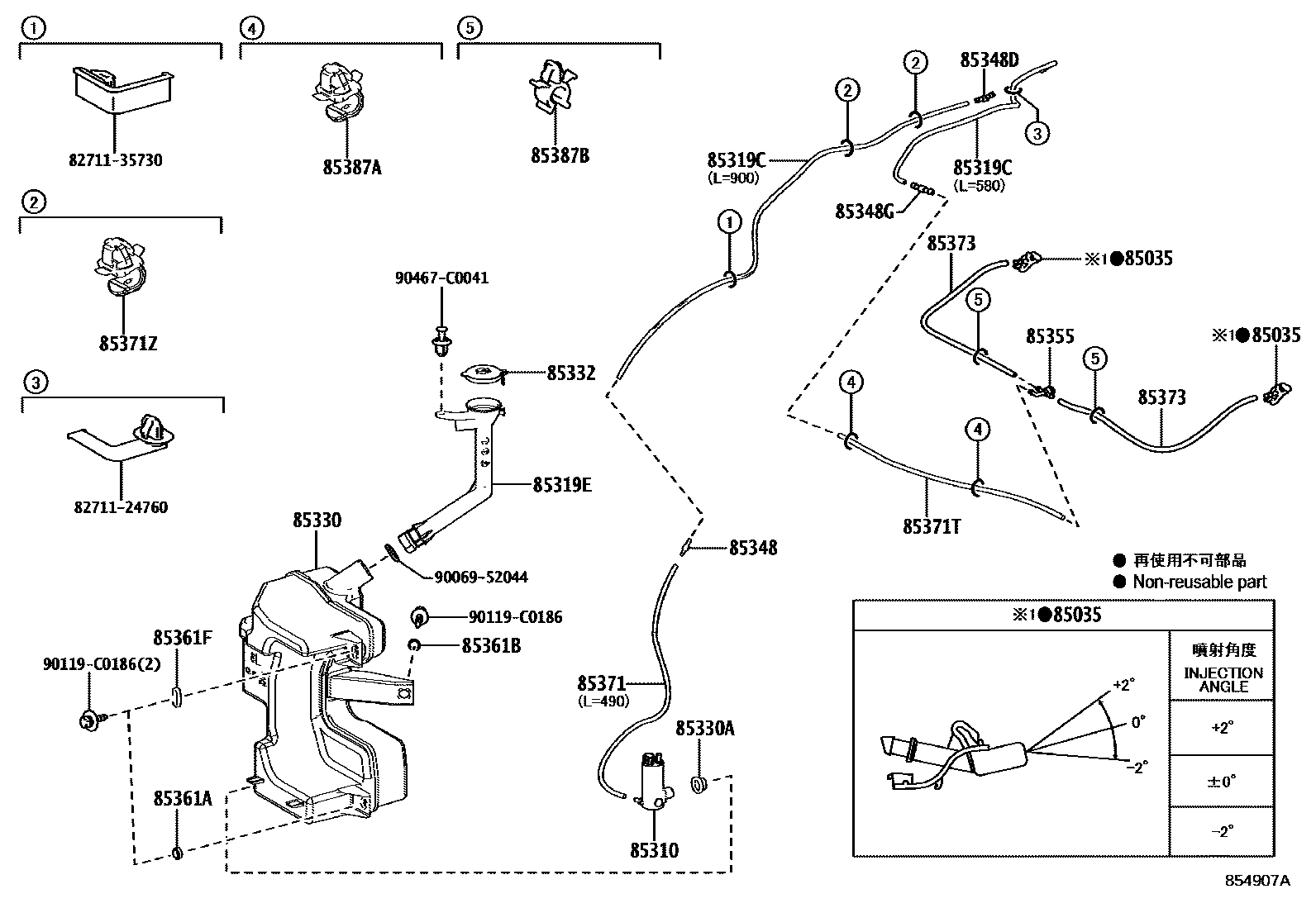

Toyota BZ4X (GTMC) — WINDSHIELD WASHER
85035NOZZLE SUB-ASSY, WASHER
ANGLE 0
ANGLE +2
ANGLE -2
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85319CHOSE, WASHER
TYPE A
TYPE B
85319EINLET WASHER
85330JAR ASSY, WINDSHIELD WASHER
85330ABUSH, WINDSHIELD WASHER JAR
85332CAP, WINDSHIELD WASHER JAR
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1
85348GJOINT, WINDSHIELD WASHER HOSE, NO.2
85355VALVE, WINDSHIELD WASHER HOSE
85361ABRACKET, WINDSHIELD WASHER, NO.1
85361BBRACKET, WINDSHIELD WASHER, NO.2
85361FBRACKET, WINDSHIELD WASHER, NO.3
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
L=490
85371THOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT)
L=490
85371ZCLAMP, WASHER HOSE
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
L=470
85387ACLAMP, WASHER, NO.2
TYPE A
TYPE B
85387BCLAMP, WASHER, NO.3
8271124760WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
8271135730WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
9006952044
main90069-52044
90119C0186
main90119-C0186
90467C0041
main90467-C0041
25 parts on this diagram · 1 diagram in section
