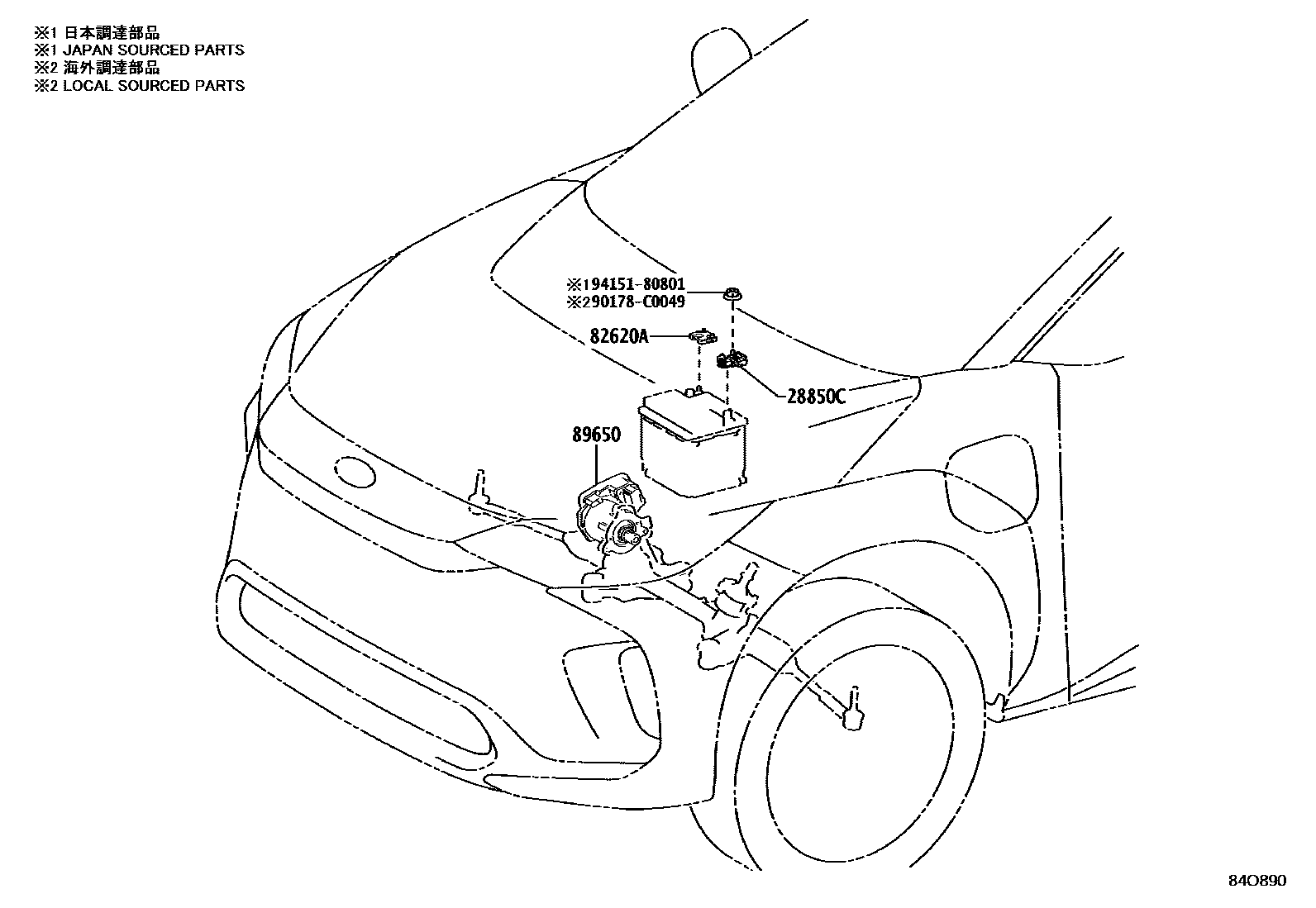

Toyota BZ4X (GTMC) — SWITCH & RELAY & COMPUTER

0001 1MOTOR COMPARTMENT 0002 1MOTOR COMPARTMENT RELAY BLOCK0003 1MOTOR COMPARTMENT RELAY BLOCK0004 1COWL 0005 1INSTRUMENT PANEL 0006 1CONSOLE BOX 0007 1STEERING(ELECTRIC POWER STEER0008 1STEERING(STEER BY WIRE) 0009 1SEAT 0010 1DOOR & ROOF 0011 1FLOOR & BACK DOOR

28850CSENSOR ASSY, BATTERY STATE

main28850-0Z040iEM..XEAM10,YEAM15202411

main28850-0Z040iEM..XEAM10,YEAM15202211-202411

82620ABLOCK ASSY, FUSIBLE LINK

main82620-42070iXEAM10,YEAM15¥990202411

main82620-42070iXEAM10,YEAM15¥990202211-202411

89650COMPUTER ASSY, POWER STEERING

main89650-0R110iXEAM10,YEAM15..L,M202211-202311

BOSCH,*614

main89650-0R160iXEAM10,YEAM15..L,M202312-202411

BOSCH,*614

main89650-0R160iXEAM10,YEAM15..L,M202411

BOSCH,*614

main89650-0R170iYEAM15..H202411

BOSCH,*614

main89650-0R170iYEAM15..H202312-202411

BOSCH,*614

90178C0049

main90178-C0049

9415180801

main94151-80801¥80

5 parts on this diagram · 11 diagrams in section
