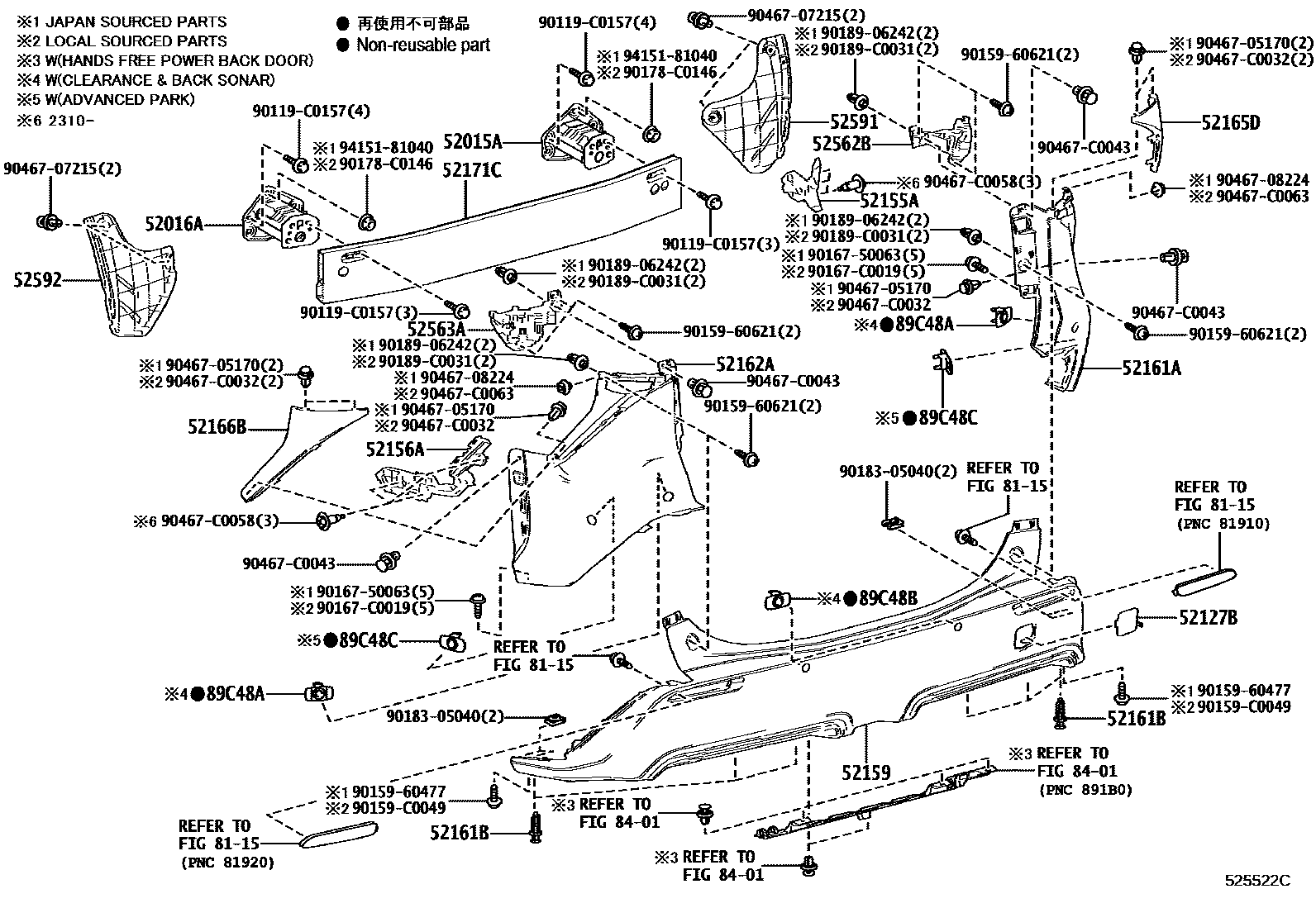

Toyota BZ4X (GTMC) — REAR BUMPER & BUMPER STAY
52015AARM SUB-ASSY, REAR BUMPER, RH
52016AARM SUB-ASSY, REAR BUMPER, LH
52127BCOVER, REAR BUMPER HOLE, RH
52155ASUPPORT, REAR BUMPER SIDE, RH
52156ASUPPORT, REAR BUMPER SIDE, LH
52159COVER, REAR BUMPER
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-PANORAMIC VIEW MONITOR(ANALOG)W/SW
NO PAINT REQ.
NO PAINT REQ.
52161APIECE, REAR BUMPER, RH
52161BPIECE, REAR BUMPER
52162APIECE, REAR BUMPER, LH
52165DEXTENSION, REAR BUMPER CORNER, RH
52166BEXTENSION, REAR BUMPER CORNER, LH
52171CREINFORCEMENT, REAR BUMPER
52562BRETAINER, REAR BUMPER, UPPER RH
52563ARETAINER, REAR BUMPER, UPPER LH
52591SEAL, REAR BUMPER SIDE, RH
52592SEAL, REAR BUMPER SIDE, LH
8115
8401
89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER
PLATINUM WHITE PEARL MC.,089 ,2PU,RH
BACK MONITOR-PANORAMIC VIEW MONITOR(ANALOG)W/SW,PLATINUM WHITE PEARL MC.,089 ,2PU,RH
BACK MONITOR-WITH(*PVM) & WITHOUT(ADVANCED PARK),PLATINUM WHITE PEARL MC.,089 ,2PU,RH
PLATINUM WHITE PEARL MC.,089 ,2PU,RH
DK.GRAY ME.,1L9 ,2WX,RH
BACK MONITOR-WITH(*PVM) & WITHOUT(ADVANCED PARK),DK.GRAY ME.,1L9 ,2WX,RH
DK.GRAY ME.,1L9 ,2WX,RH
BACK MONITOR-PANORAMIC VIEW MONITOR(ANALOG)W/SW,DK.GRAY ME.,1L9 ,2WX,RH
BLACK MC.,209,RH
BACK MONITOR-PANORAMIC VIEW MONITOR(ANALOG)W/SW,BLACK MC.,209,RH
BLACK MC.,209,RH
BACK MONITOR-WITH(*PVM) & WITHOUT(ADVANCED PARK),BLACK MC.,209,RH
BACK MONITOR-PANORAMIC VIEW MONITOR(ANALOG)W/SW,EMOTIONAL RED 2,2SZ ,3U5,RH
EMOTIONAL RED 2,2SZ ,3U5,RH
EMOTIONAL RED 2,2SZ ,3U5,RH
BACK MONITOR-WITH(*PVM) & WITHOUT(ADVANCED PARK),EMOTIONAL RED 2,2SZ ,3U5,RH
BACK MONITOR-PANORAMIC VIEW MONITOR(ANALOG)W/SW,STEEL BLONDE ME.,2TL ,4X1,RH
BACK MONITOR-WITH(*PVM) & WITHOUT(ADVANCED PARK),STEEL BLONDE ME.,2TL ,4X1,RH
STEEL BLONDE ME.,2TL ,4X1,RH
STEEL BLONDE ME.,2TL ,4X1,RH
BEIGE M.M.,2WW ,587,RH
BACK MONITOR-WITH(*PVM) & WITHOUT(ADVANCED PARK),BEIGE M.M.,2WW ,587,RH
BACK MONITOR-PANORAMIC VIEW MONITOR(ANALOG)W/SW,PLATINUM WHITE PEARL MC.,089 ,2PU,LH
BACK MONITOR-WITH(*PVM) & WITHOUT(ADVANCED PARK),PLATINUM WHITE PEARL MC.,089 ,2PU,LH
PLATINUM WHITE PEARL MC.,089 ,2PU,LH
PLATINUM WHITE PEARL MC.,089 ,2PU,LH
BACK MONITOR-WITH(*PVM) & WITHOUT(ADVANCED PARK),DK.GRAY ME.,1L9 ,2WX,LH
BACK MONITOR-PANORAMIC VIEW MONITOR(ANALOG)W/SW,DK.GRAY ME.,1L9 ,2WX,LH
DK.GRAY ME.,1L9 ,2WX,LH
DK.GRAY ME.,1L9 ,2WX,LH
BACK MONITOR-WITH(*PVM) & WITHOUT(ADVANCED PARK),BLACK MC.,209,LH
BLACK MC.,209,LH
BACK MONITOR-PANORAMIC VIEW MONITOR(ANALOG)W/SW,BLACK MC.,209,LH
BLACK MC.,209,LH
BACK MONITOR-PANORAMIC VIEW MONITOR(ANALOG)W/SW,EMOTIONAL RED 2,2SZ ,3U5,LH
EMOTIONAL RED 2,2SZ ,3U5,LH
EMOTIONAL RED 2,2SZ ,3U5,LH
BACK MONITOR-WITH(*PVM) & WITHOUT(ADVANCED PARK),EMOTIONAL RED 2,2SZ ,3U5,LH
STEEL BLONDE ME.,2TL ,4X1,LH
BACK MONITOR-WITH(*PVM) & WITHOUT(ADVANCED PARK),STEEL BLONDE ME.,2TL ,4X1,LH
STEEL BLONDE ME.,2TL ,4X1,LH
BACK MONITOR-PANORAMIC VIEW MONITOR(ANALOG)W/SW,STEEL BLONDE ME.,2TL ,4X1,LH
BACK MONITOR-WITH(*PVM) & WITHOUT(ADVANCED PARK),BEIGE M.M.,2WW ,587,LH
BEIGE M.M.,2WW ,587,LH
89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER
DUMMY-MAT BLACK
DUMMY-MAT BLACK
BACK MONITOR-PANORAMIC VIEW MONITOR(ANALOG)W/SW,DUMMY-MAT BLACK
BACK MONITOR-WITH(*PVM) & WITHOUT(ADVANCED PARK),DUMMY-MAT BLACK
89C48CRETAINER, ULTRASONIC SENSOR, REAR SIDE
PLATINUM WHITE PEARL MC.,089 ,2PU,RH
PLATINUM WHITE PEARL MC.,089 ,2PU,RH
FRONT SEAT SLIDE-*DRS:POWER WITH MEMORY & *PAS:POWER&BACK MONITOR-WITH(*PVM) & WITH(ADVANCED PARK)&ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION),PLATINUM WHITE PEARL
DK.GRAY ME.,1L9 ,2WX,RH
FRONT SEAT SLIDE-*DRS:POWER WITH MEMORY & *PAS:POWER&BACK MONITOR-WITH(*PVM) & WITH(ADVANCED PARK)&ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION),DK.GRAY ME.,1L9 ,2WX,
DK.GRAY ME.,1L9 ,2WX,RH
FRONT SEAT SLIDE-*DRS:POWER WITH MEMORY & *PAS:POWER&BACK MONITOR-WITH(*PVM) & WITH(ADVANCED PARK)&ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION),BLACK MC.,209,RH
BLACK MC.,209,RH
BLACK MC.,209,RH
EMOTIONAL RED 2,2SZ ,3U5,RH
FRONT SEAT SLIDE-*DRS:POWER WITH MEMORY & *PAS:POWER&BACK MONITOR-WITH(*PVM) & WITH(ADVANCED PARK)&ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION),EMOTIONAL RED 2,2SZ ,
EMOTIONAL RED 2,2SZ ,3U5,RH
FRONT SEAT SLIDE-*DRS:POWER WITH MEMORY & *PAS:POWER&BACK MONITOR-WITH(*PVM) & WITH(ADVANCED PARK)&ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION),STEEL BLONDE ME.,2TL
STEEL BLONDE ME.,2TL ,4X1,RH
STEEL BLONDE ME.,2TL ,4X1,RH
BEIGE M.M.,2WW ,587,RH
FRONT SEAT SLIDE-*DRS:POWER WITH MEMORY & *PAS:POWER&BACK MONITOR-WITH(*PVM) & WITH(ADVANCED PARK)&ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION),BEIGE M.M.,2WW ,587,R
PLATINUM WHITE PEARL MC.,089 ,2PU,LH
FRONT SEAT SLIDE-*DRS:POWER WITH MEMORY & *PAS:POWER&BACK MONITOR-WITH(*PVM) & WITH(ADVANCED PARK)&ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION),PLATINUM WHITE PEARL
PLATINUM WHITE PEARL MC.,089 ,2PU,LH
DK.GRAY ME.,1L9 ,2WX,LH
FRONT SEAT SLIDE-*DRS:POWER WITH MEMORY & *PAS:POWER&BACK MONITOR-WITH(*PVM) & WITH(ADVANCED PARK)&ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION),DK.GRAY ME.,1L9 ,2WX,
DK.GRAY ME.,1L9 ,2WX,LH
BLACK MC.,209,LH
BLACK MC.,209,LH
FRONT SEAT SLIDE-*DRS:POWER WITH MEMORY & *PAS:POWER&BACK MONITOR-WITH(*PVM) & WITH(ADVANCED PARK)&ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION),BLACK MC.,209,LH
FRONT SEAT SLIDE-*DRS:POWER WITH MEMORY & *PAS:POWER&BACK MONITOR-WITH(*PVM) & WITH(ADVANCED PARK)&ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION),EMOTIONAL RED 2,2SZ ,
EMOTIONAL RED 2,2SZ ,3U5,LH
EMOTIONAL RED 2,2SZ ,3U5,LH
STEEL BLONDE ME.,2TL ,4X1,LH
STEEL BLONDE ME.,2TL ,4X1,LH
FRONT SEAT SLIDE-*DRS:POWER WITH MEMORY & *PAS:POWER&BACK MONITOR-WITH(*PVM) & WITH(ADVANCED PARK)&ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION),STEEL BLONDE ME.,2TL
FRONT SEAT SLIDE-*DRS:POWER WITH MEMORY & *PAS:POWER&BACK MONITOR-WITH(*PVM) & WITH(ADVANCED PARK)&ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION),BEIGE M.M.,2WW ,587,L
BEIGE M.M.,2WW ,587,LH
90119C0157
main90119-C0157
9015960477
9015960621
90159C0049
main90159-C0049
9016750063
90167C0019
main90167-C0019
90178C0146
main90178-C0146
9018305040
9018906242
90189C0031
main90189-C0031
9046705170
9046707215
9046708224
90467C0032
main90467-C0032
90467C0043
main90467-C0043
90467C0058
main90467-C0058
90467C0063
main90467-C0063
9415181040
39 parts on this diagram · 1 diagram in section
