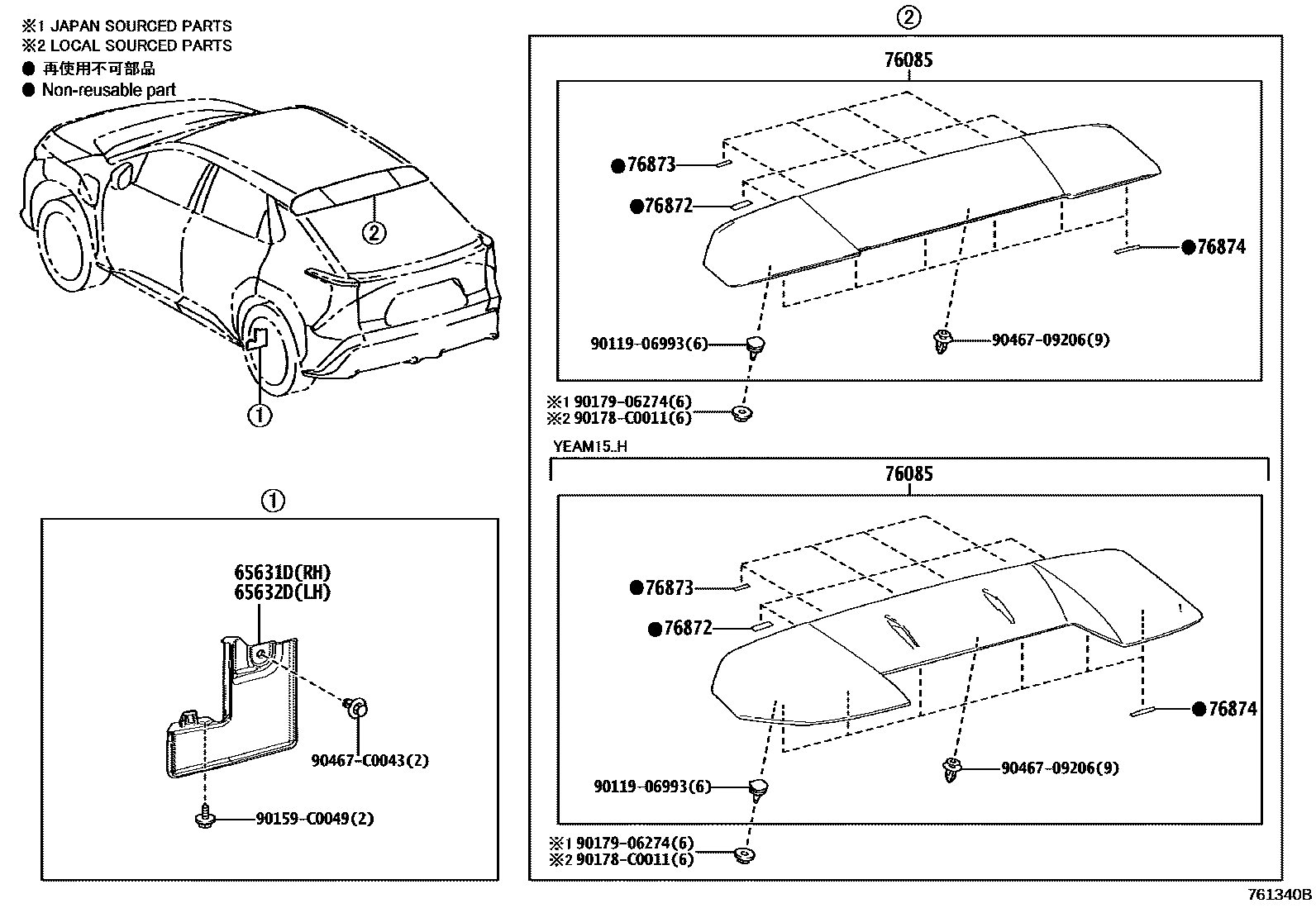

Toyota BZ4X (GTMC) — MUDGUARD & SPOILER

65631DPLATE, REAR WHEEL HOUSE, FRONT RH

main65631-0R120iXEAM10,YEAM15202211-202411

65632DPLATE, REAR WHEEL HOUSE, FRONT LH

main65632-0R120iXEAM10,YEAM15202211-202411

76085SPOILER SUB-ASSY, REAR

main75607-0R020-A0iXEAM10,YEAM15..L,M202211-202411

PLATINUM WHITE PEARL MC.,089

main75607-0R020-B1iXEAM10,YEAM15..L,M202211-202411

DK.GRAY ME.,1L9

main75607-0R020-C0iXEAM10202211-202411

BLACK MC.,209 ,2PU ,2SZ ,2TL ,2WW ,2WX ,2YV

main75607-0R020-C0iXEAM10,YEAM15..L,M202411

BLACK MC.,209 ,2PU ,2SZ ,2TL ,2WX

main75607-0R020-C0iXEAM10202211-202411

BLACK MC.,209 ,2PU ,2SZ ,2TL ,2WF ,2WG ,2WW ,2WX ,2YV

main75607-0R020-D0iXEAM10,YEAM15..L,M202211-202411

EMOTIONAL RED 2,3U5

main75607-0R020-E1iXEAM10,YEAM15..L,M202211-202411

STEEL BLONDE ME.,4X1

main75607-0R020-F0iXEAM10,YEAM15..L,M202211-202312

BEIGE M.M.,587

main76085-0R110-A0iYEAM15..H202211-202411

PLATINUM WHITE PEARL MC.,089

main76085-0R110-B0iYEAM15..H202211-202411

DK.GRAY ME.,1L9

main76085-0R110-C0iYEAM15..H202411

BLACK MC.,209 ,2PU ,2SZ ,2TL ,2WX

main76085-0R110-C0iYEAM15..H202211-202411

BLACK MC.,209 ,2PU ,2SZ ,2TL ,2WW ,2WX ,2YV

main76085-0R110-D0iYEAM15..H202211-202411

EMOTIONAL RED 2,3U5

main76085-0R110-E0iYEAM15..H202211-202411

STEEL BLONDE ME.,4X1

main76085-0R110-F0iYEAM15..H202211-202312

BEIGE M.M.,587

76872PROTECTOR, REAR SPOILER, NO.1

main76872-0R130iXEAM10,YEAM15202211-202411

76873PROTECTOR, REAR SPOILER, NO.2

main76873-0R130iXEAM10,YEAM15202211-202411

76874PROTECTOR, REAR SPOILER, NO.3

main76874-0R100iXEAM10,YEAM15202211-202411

9011906993

main90119-06993¥80

90159C0049

main90159-C0049

90178C0011

main90178-C0011

9017906274

main90179-06274¥70

9046709206

main90467-09206¥80

90467C0043

main90467-C0043

12 parts on this diagram · 1 diagram in section
