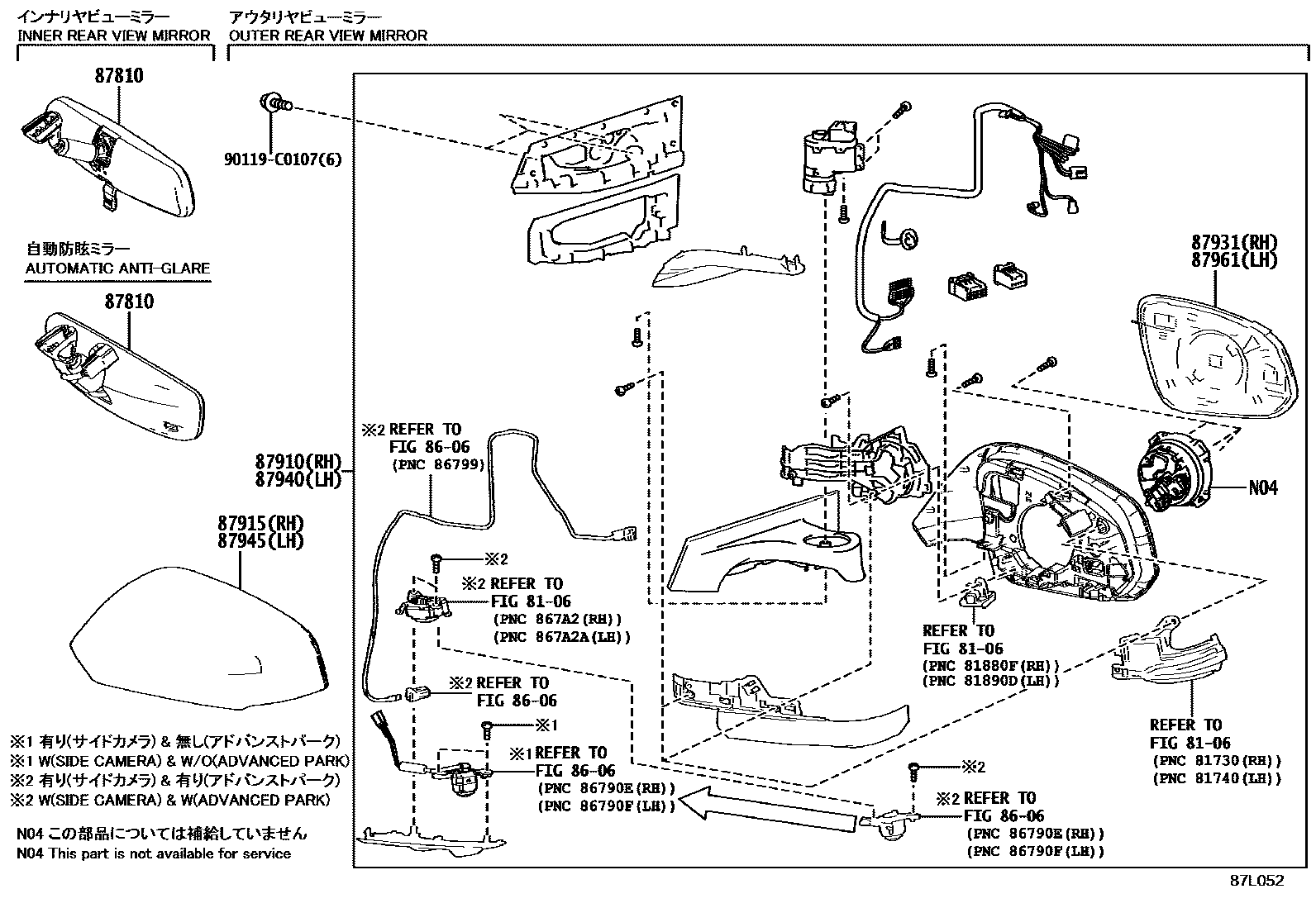

Toyota BZ4X (GTMC) — MIRROR

8106

8606

87810MIRROR ASSY, INNER REAR VIEW

main87810-06240i202211-202411

main87810-0E270i202211-202411

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-0R410i202211-202411

NO PAINT REQ.

main87910-0R420i202211-202305

NO PAINT REQ.,FRONT SEAT SLIDE-*DRS:POWER WITH MEMORY & *PAS:POWER&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)&BACK MONITOR-WITH(*PVM) & WITH(AD

main87910-0R420i202211-202305

NO PAINT REQ.

main87910-0R421i202306-202411

NO PAINT REQ.

main87910-0R421i202306-202411

NO PAINT REQ.,FRONT SEAT SLIDE-*DRS:POWER WITH MEMORY & *PAS:POWER&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)&BACK MONITOR-WITH(*PVM) & WITH(AD

main87910-0R430i202211-202306

NO PAINT REQ.,AUDIO-AVN&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE)&BACK MONITOR-WITH(*PVM) & WITHOUT(ADVANCED PARK)

main87910-0R430i202211-202306

NO PAINT REQ.

main87910-0R600i202306-202411

AUDIO-AVN&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(*PVM) & WITHOUT(ADVANCED PARK)&REAR & REAR SIDE MONITOR-WITH(*ARFHL& SAFE EXI

87915COVER, OUTER MIRROR, RH

main87915-0R907i202211-202411

PAINT REQ.

87931OUTER MIRROR, RH

main87931-0R440i202211-202411

main87931-0R460i202306-202411

AUDIO-AVN&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(*PVM) & WITHOUT(ADVANCED PARK)&REAR & REAR SIDE MONITOR-WITH(*ARFHL& SAFE EXI

main87931-0R460i202411

BACK MONITOR-PANORAMIC VIEW MONITOR(ANALOG)W/SW&REAR & REAR SIDE MONITOR-WITH(*BSM& *ARFHL & SAFE EXIT ASSIST)

main87931-0R460i202211-202411

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-0R410i202211-202411

NO PAINT REQ.

main87940-0R420i202211-202305

NO PAINT REQ.

main87940-0R420i202211-202305

NO PAINT REQ.,FRONT SEAT SLIDE-*DRS:POWER WITH MEMORY & *PAS:POWER&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)&BACK MONITOR-WITH(*PVM) & WITH(AD

main87940-0R421i202306-202411

NO PAINT REQ.

main87940-0R421i202306-202411

NO PAINT REQ.,FRONT SEAT SLIDE-*DRS:POWER WITH MEMORY & *PAS:POWER&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)&BACK MONITOR-WITH(*PVM) & WITH(AD

main87940-0R430i202211-202306

NO PAINT REQ.

main87940-0R430i202211-202306

NO PAINT REQ.,AUDIO-AVN&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE)&BACK MONITOR-WITH(*PVM) & WITHOUT(ADVANCED PARK)

main87940-0R590i202306-202411

AUDIO-AVN&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(*PVM) & WITHOUT(ADVANCED PARK)&REAR & REAR SIDE MONITOR-WITH(*ARFHL& SAFE EXI

87945COVER, OUTER MIRROR, LH

main87945-0R908i202211-202411

PAINT REQ.

87961MIRROR OUTER, LH

main87961-0R440i202211-202411

main87961-0R460i202306-202411

AUDIO-AVN&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(*PVM) & WITHOUT(ADVANCED PARK)&REAR & REAR SIDE MONITOR-WITH(*ARFHL& SAFE EXI

main87961-0R460i202211-202411

main87961-0R460i202411

BACK MONITOR-PANORAMIC VIEW MONITOR(ANALOG)W/SW&REAR & REAR SIDE MONITOR-WITH(*BSM& *ARFHL & SAFE EXIT ASSIST)

90119C0107

main90119-C0107

10 parts on this diagram · 1 diagram in section
