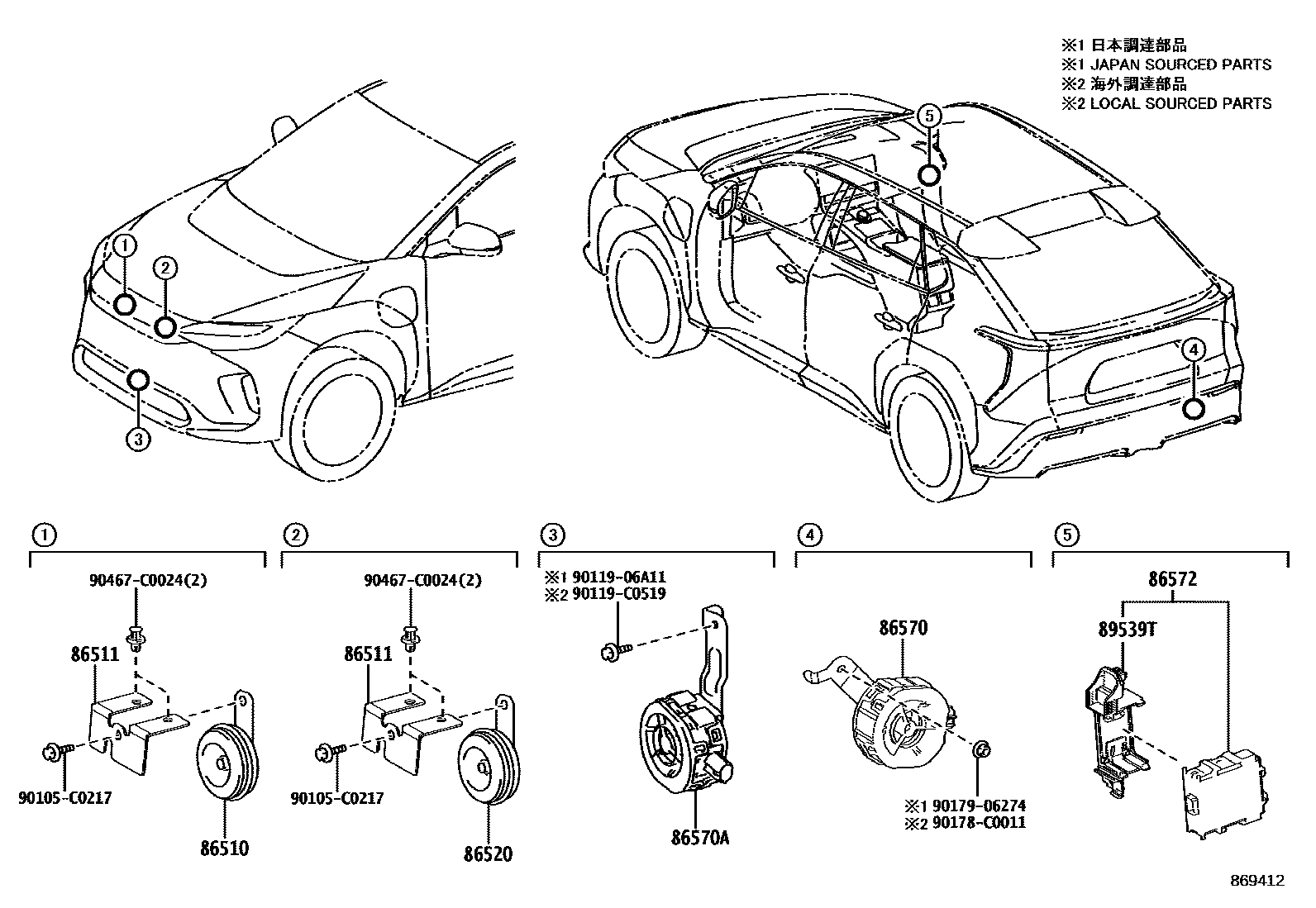

Toyota BZ4X (GTMC) — HORN

86510HORN ASSY, HIGH PITCHED

main86510-02231iXEAM10,YEAM15202211-202312

main86510-42080iXEAM10,YEAM15¥2,190202312-202411

86511COVER, HIGH PITCHED HORN

main86511-0R010iXEAM10,YEAM15202211-202411

86520HORN ASSY, LOW PITCHED

main86520-02361iXEAM10,YEAM15202211-202312

main86520-42120iXEAM10,YEAM15¥2,190202312-202411

86570SPEAKER ASSY, VEHICLE APPROACHING

main86570-0R070iXEAM10,YEAM15202211-202411

86570ASPEAKER ASSY, VEHICLE APPROACHING, NO.2

main86570-0R050iXEAM10,YEAM15202211-202411

86572CONTROLLER, VEHICLE APPROACHING SPEAKER

main86572-0R050iXEAM10,YEAM15202211-202312

main86572-0R180iXEAM10,YEAM15202312-202411

89539TBRACKET, COMPUTER

main89539-0R030iXEAM10,YEAM15202211-202411

90105C0217

main90105-C0217

9011906A11

main90119-06A11¥60

90119C0519

main90119-C0519

90178C0011

main90178-C0011

9017906274

main90179-06274¥70

90467C0024

main90467-C0024

13 parts on this diagram · 1 diagram in section
