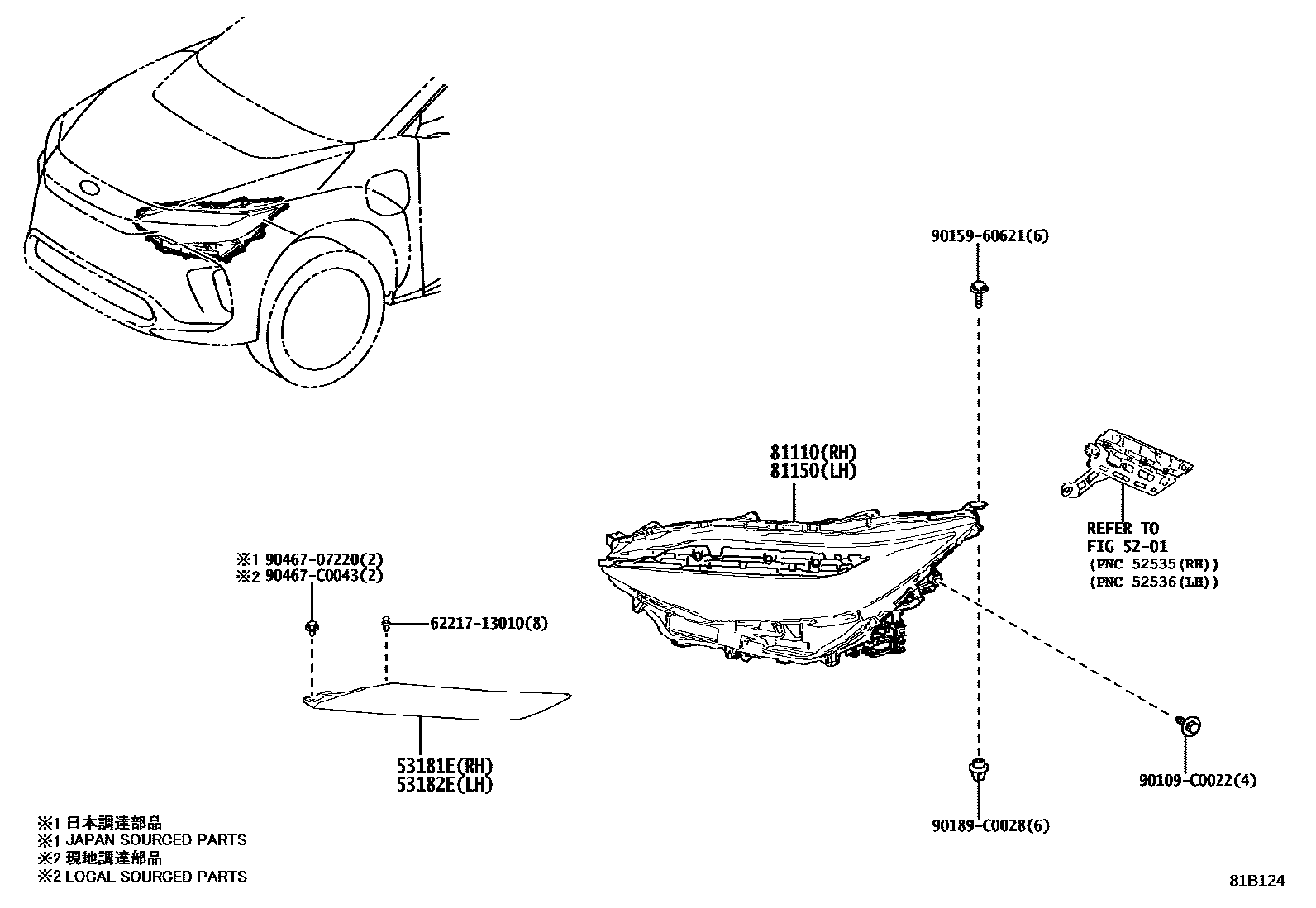

Toyota BZ4X (GTMC) — HEADLAMP

5201

53181ECOVER, HEADLAMP, RH

main52702-0R901iXEAM10,YEAM15202211-202411

53182ECOVER, HEADLAMP, LH

main52703-0R901iXEAM10,YEAM15202211-202411

81110HEADLAMP ASSY, RH

main81110-0R290iXEAM10..L202211-202411

main81110-0R300iXEAM10,YEAM15..H,M202211-202312

main81110-0R450iXEAM10,YEAM15..H,M202312-202411

81150HEADLAMP ASSY, LH

main81150-0R120iXEAM10,YEAM15..H,M202312-202411

main81150-0R280iXEAM10,YEAM15..H,M202211-202312

main81150-0R290iXEAM10..L202211-202411

6221713010COVER, RAIL ROOF SIDE, INNER CENTER

main62217-13010¥80

90109C0022

main90109-C0022

9015960621

main90159-60621¥60

90189C0028

main90189-C0028

9046707220

main90467-07220¥80

90467C0043

main90467-C0043

11 parts on this diagram · 1 diagram in section
