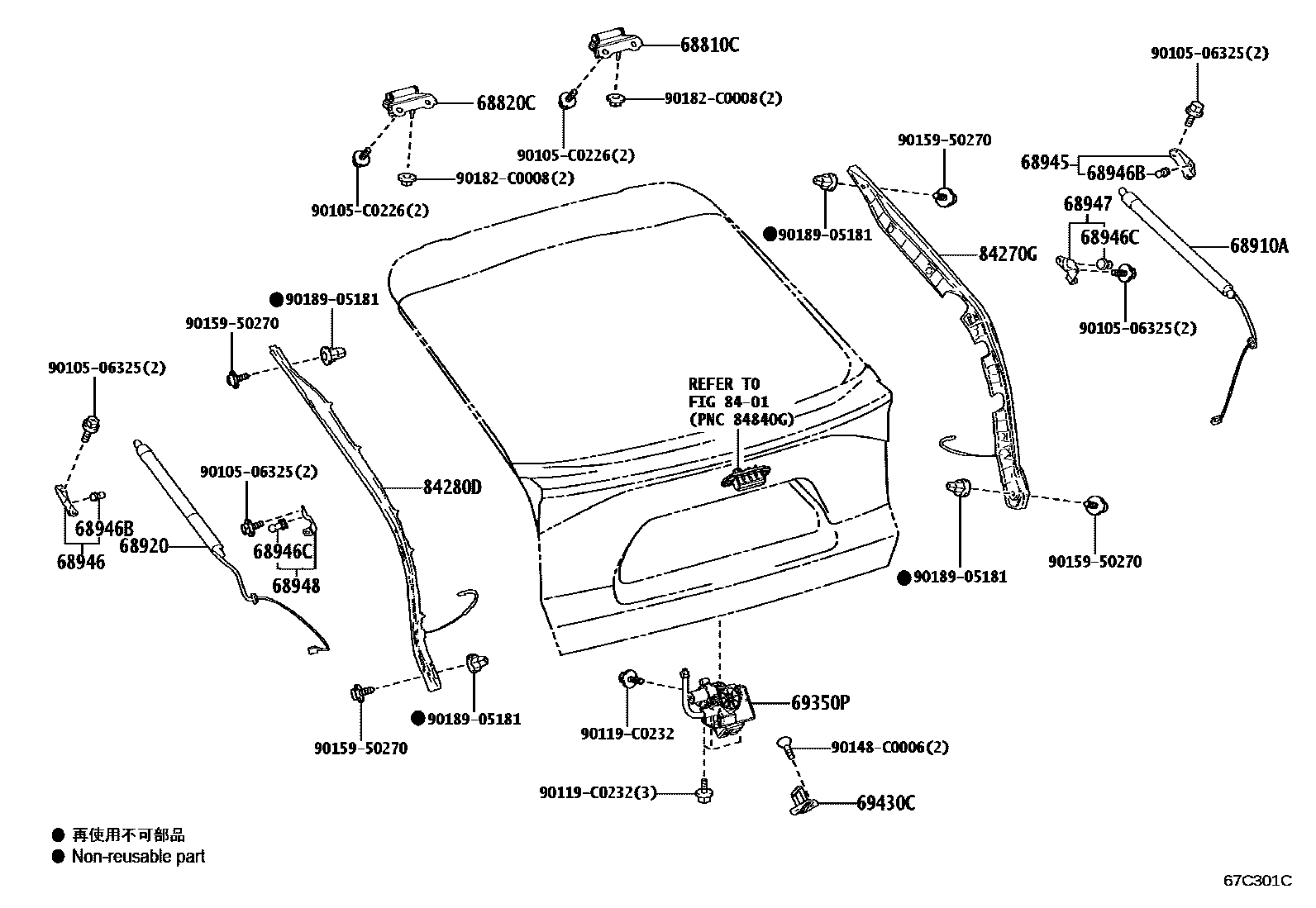

Toyota BZ4X (GTMC) — BACK DOOR LOCK & HANDLE

0001 1 0002 1

68810CHINGE ASSY, BACK DOOR, RH

main68810-0E400iXEAM10,YEAM15202211-202411

PAD T=1.0

main68810-0E410iXEAM10,YEAM15202211-202411

PAD T=1.5

main68810-0E420iXEAM10,YEAM15202211-202411

PAD T=2.0

68820CHINGE ASSY, BACK DOOR, LH

main68810-0E400iXEAM10,YEAM15202211-202411

PAD T=1.0

main68810-0E410iXEAM10,YEAM15202211-202411

PAD T=1.5

main68810-0E420iXEAM10,YEAM15202211-202411

PAD T=2.0

68910AUNIT ASSY SET, POWER BACK DOOR, RH

main68910-0R120iXEAM10,YEAM15..M202211-202411

68920UNIT ASSY SET, POWER BACK DOOR, LH

main68920-0R110iXEAM10,YEAM15..H,M202211-202411

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-0R110iXEAM10..L202211-202411

main68945-0R120iXEAM10,YEAM15..H,M202211-202411

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68946-0R110iXEAM10..L202211-202411

main68946-0R120iXEAM10,YEAM15..M202211-202411

68946BJOINT, BACK DOOR STAY, UPR

main68961-0R090iXEAM10,YEAM15..M202211-202411

main68961-0R110iXEAM10,YEAM15..H,M202211-202411

68946CJOINT, BACK DOOR STAY, LWR

main68961-0R100iXEAM10,YEAM15202211-202411

68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH

main68947-0R040iXEAM10,YEAM15202211-202411

68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH

main68948-0R040iXEAM10,YEAM15202211-202411

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-0R080iXEAM10,YEAM15..H,M202211-202411

main69350-0R110iXEAM10..L202211-202411

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-0E060iXEAM10,YEAM15202211-202411

8401

84270GSENSOR ASSY, POWER BACK DOOR, RH

main84270-0R060iXEAM10,YEAM15..H,M202211-202411

84280DSENSOR ASSY, POWER BACK DOOR, LH

main84280-0R060iXEAM10,YEAM15..H,M202211-202411

9010506325

main90105-06325¥80

90105C0226

main90105-C0226

90119C0232

main90119-C0232

90148C0006

main90148-C0006

9015950270

main90159-50270¥70

90182C0008

main90182-C0008

9018905181

main90189-05181¥70

22 parts on this diagram · 2 diagrams in section
