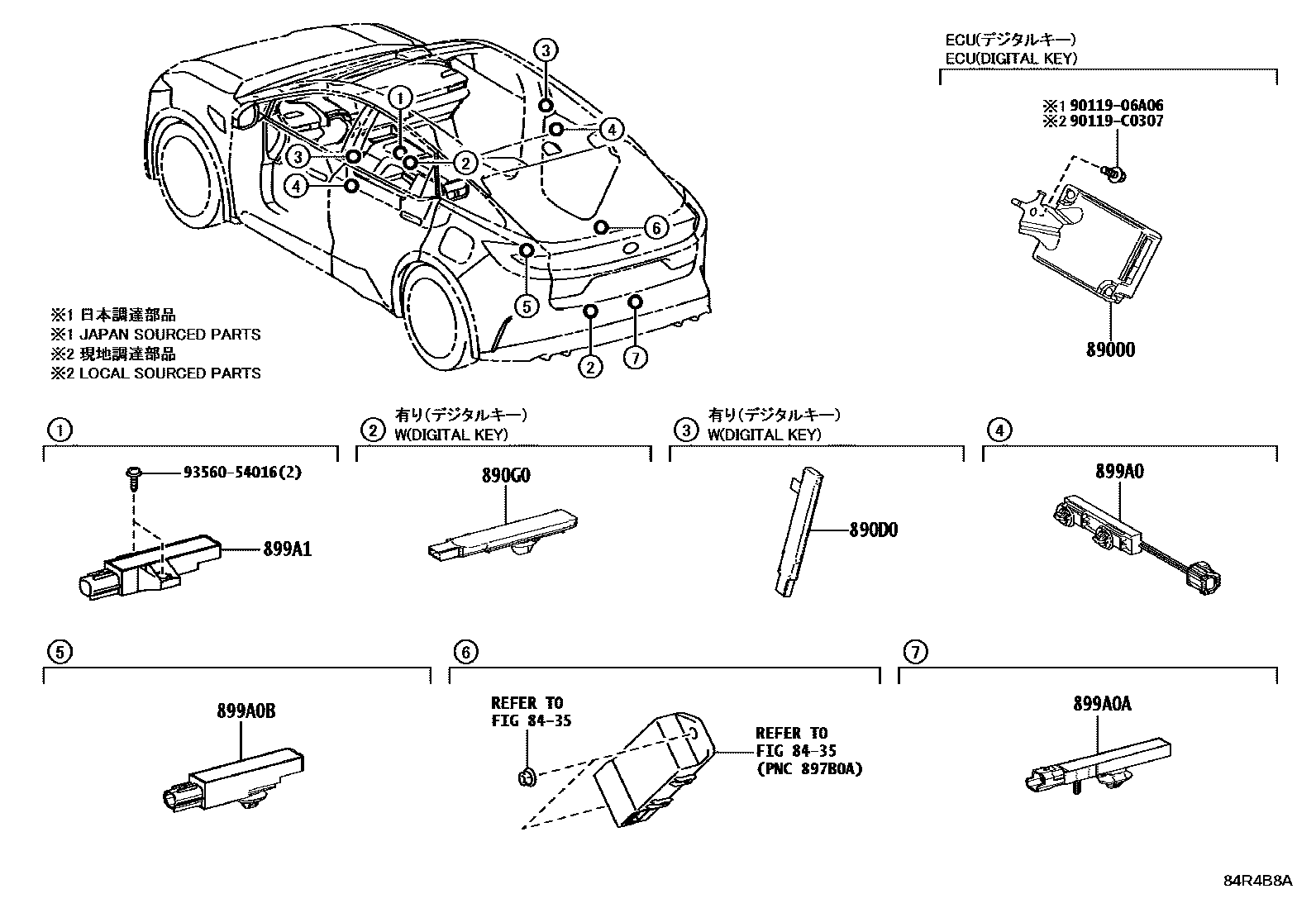

Toyota BZ3C — WIRELESS DOOR LOCK

8435

89000COMPUTER ASSY, DIGITAL KEY

main89000-03030iBEAG11..F,G,L202412

890D0RECEIVER ASSY, BLE DOOR DIGITAL KEY

main890E0-F4010iBEAG11..F,G,L202412

890G0RECEIVER ASSY, BLE INDOOR DIGITAL KEY

main890E0-02010iBEAG11..F,G,L202412

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-03040iBEAG11202412

899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2

main899A0-03050iBEAG11202412

899A0BANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3

main899A0-03070iBEAG11202412

899A1ANTENNA, INDOOR ELECTRICAL KEY

main899A0-03060iBEAG11202412

9011906A06

main90119-06A06¥60

90119C0307

main90119-C0307

9356054016

main93560-54016¥60

11 parts on this diagram · 1 diagram in section
