Toyota BZ3C — TIRE PRESSURE WARNING SYSTEM

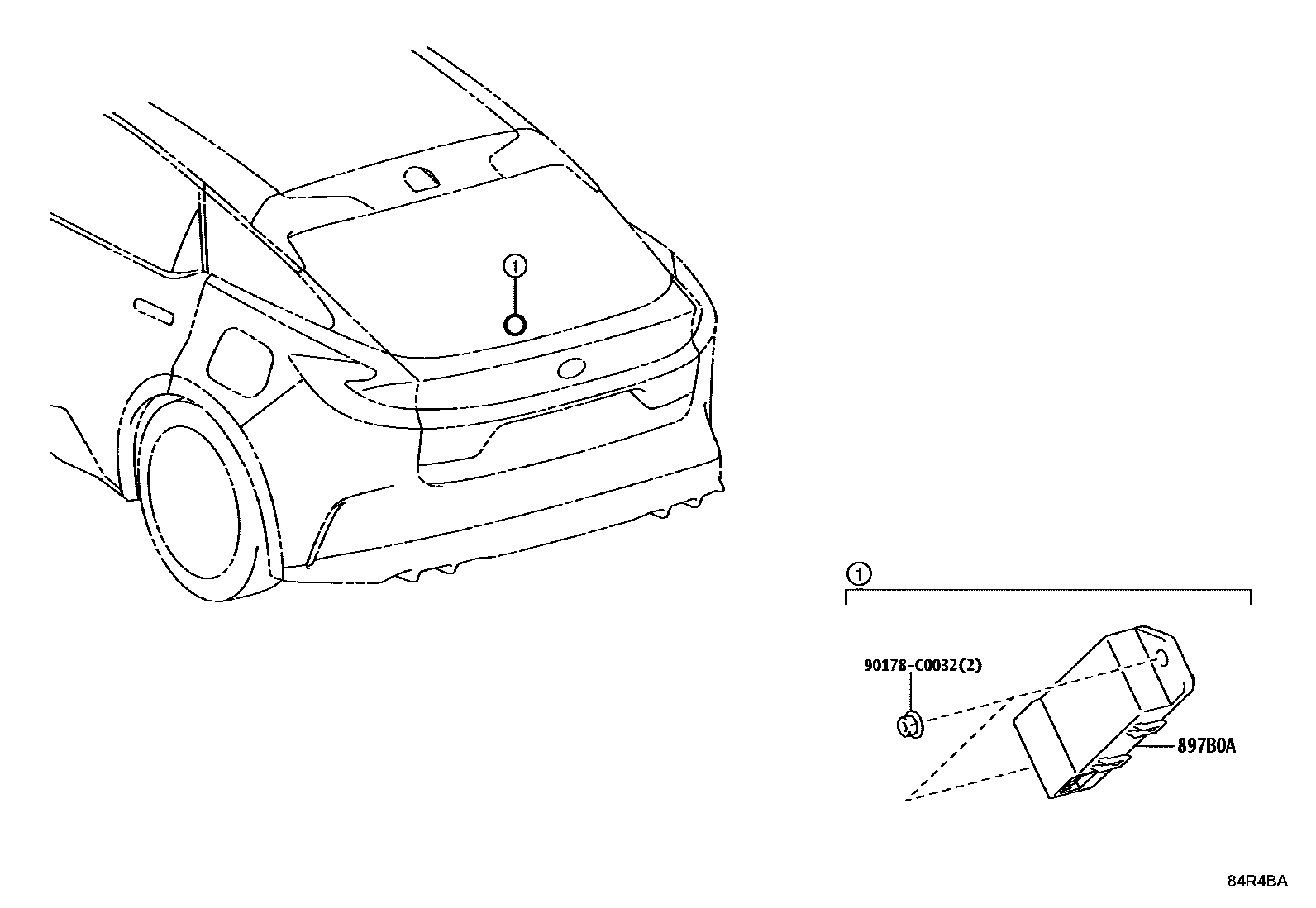

Parts diagram

897B0ARECEIVER ASSY, ELECTRICAL KEY & TPMS

main897B0-03030i202412

90178C0032

main90178-C0032

2 parts on this diagram · 1 diagram in section
