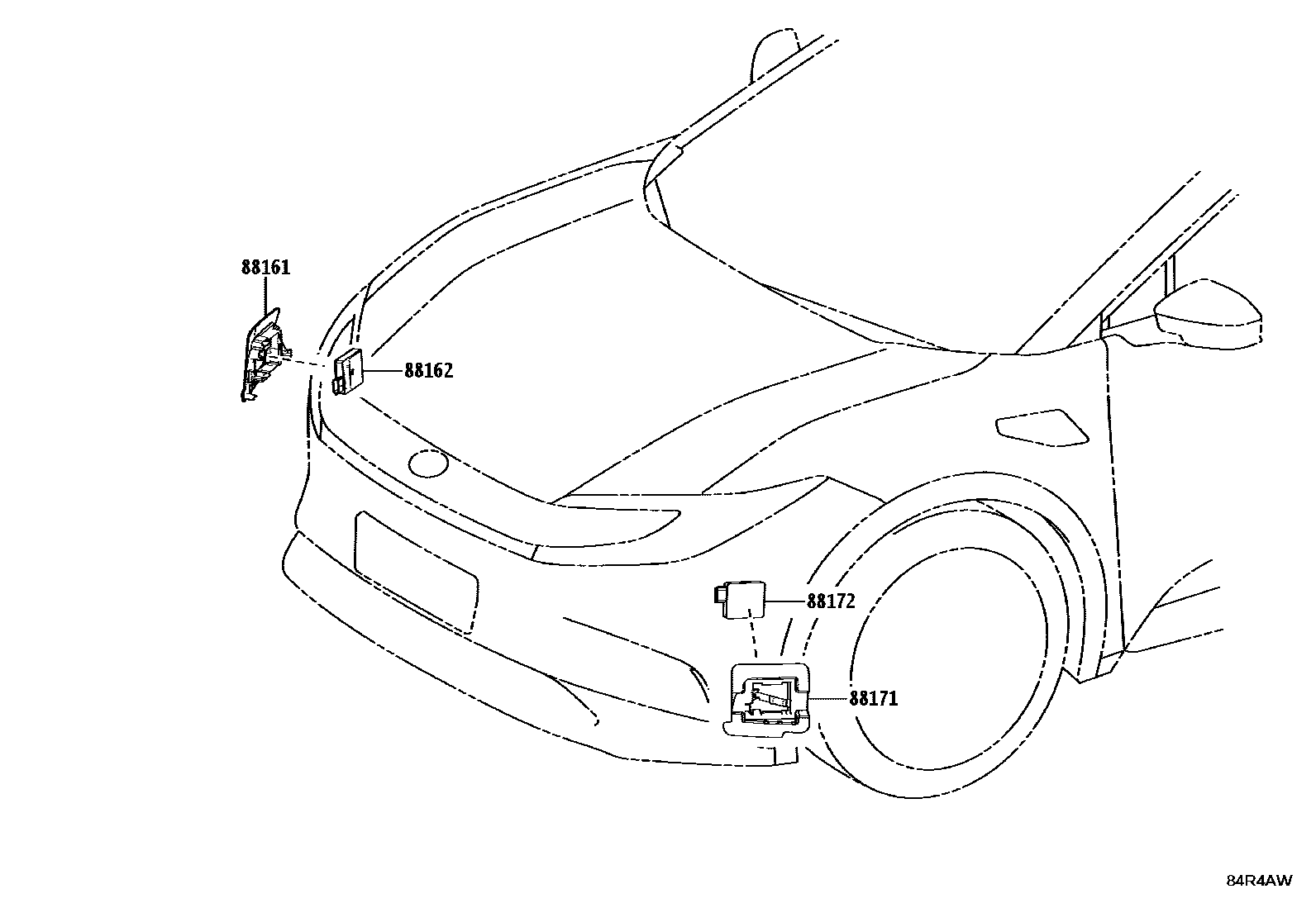

88161BRACKET, BLIND SPOT MONITOR, RH

main88161-03020iBEAG11..F,G,L202412

FOR REAR

main88161-03030iBEAG11..F,G,L202412

FOR FRONT

88162SENSOR, BLIND SPOT MONITOR, RH

main88162-03030iBEAG11..F,G,L202412

88171BRACKET, BLIND SPOT MONITOR, LH

main88171-03020iBEAG11..F,G,L202412

FOR REAR

main88171-03030iBEAG11..F,G,L202412

FOR FRONT

88172SENSOR, BLIND SPOT MONITOR, LH

main88162-03030iBEAG11..F,G,L202412

4 parts on this diagram · 9 diagrams in section
