Toyota BZ3C — NAVIGATION & FRONT MONITOR DISPLAY

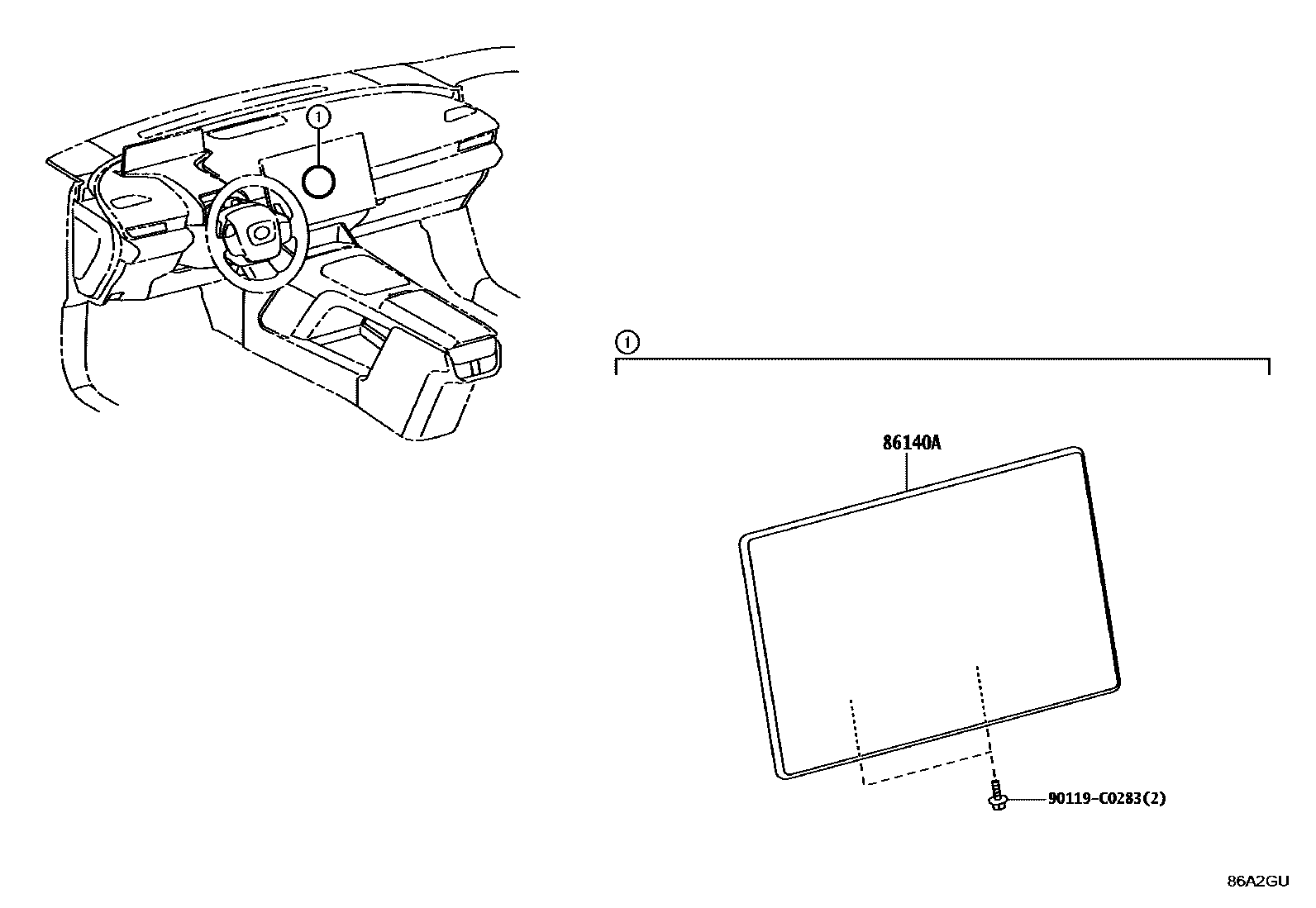

Parts diagram

86140ARECEIVER ASSY, RADIO & DISPLAY

main86110-03030i202412

90119C0283

main90119-C0283

2 parts on this diagram · 1 diagram in section
