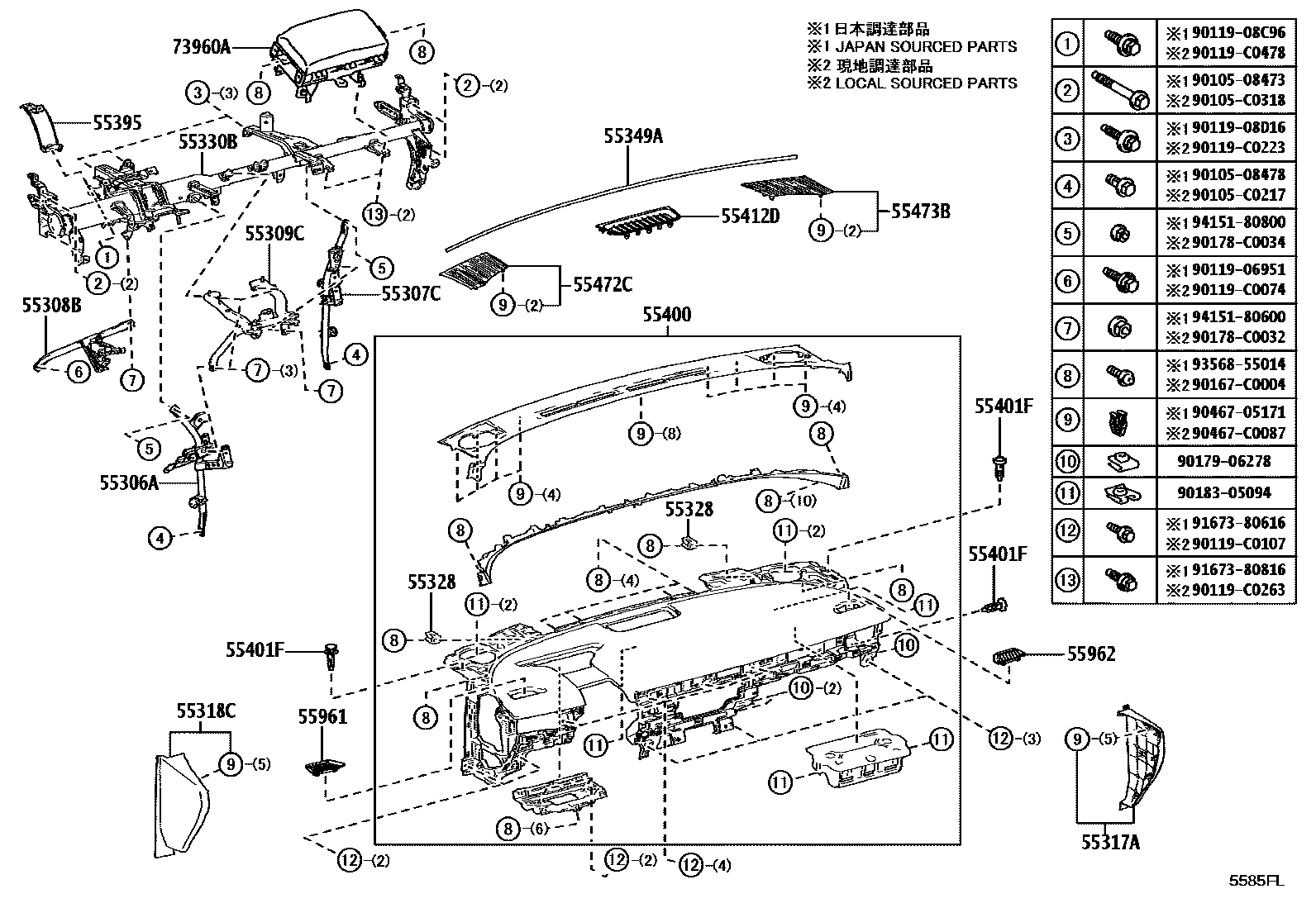

Toyota BZ3C — INSTRUMENT PANEL & GLOVE COMPARTMENT
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
55308BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3
55309CREINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, CENTER
55317APANEL, INSTRUMENT SIDE, RH
BLACK,TRIM0#,2#,3#
BLACK,TRIM2#
55318CPANEL, INSTRUMENT SIDE, LH
BLACK,TRIM0#,2#,3#
BLACK,TRIM2#
55328PIN, INSTRUMENT PANEL, NO.1
55330BREINFORCEMENT ASSY, INSTRUMENT PANEL
55349ACUSHION, INSTRUMENT PANEL
55395BRACKET, INSTRUMENT PANEL TO PEDAL
55400PAD ASSY, INSTRUMENT PANEL SAFETY
BLACK/WHITE,TRIM0#
BLACK/RED BLUSH,TRIM3#
BLACK/BLACK,TRIM2#
55401FCLIP(FOR SAFETY PAD)
(L)
55412DPANEL, INSTRUMENT CLUSTER FINISH, CENTER
BLACK,TRIM0#,2#,3#
BLACK,TRIM2#
55472CPANEL, INSTRUMENT PANEL SPEAKER, NO.1
BLACK,TRIM0#,2#,3#
BLACK,TRIM2#
55473BPANEL, INSTRUMENT PANEL SPEAKER, NO.2
BLACK,TRIM0#,2#,3#
BLACK,TRIM2#
55961NOZZLE, SIDE DEFROSTER, NO.1
BLACK,TRIM0#,2#,3#
BLACK,TRIM2#
55962NOZZLE, SIDE DEFROSTER, NO.2
BLACK,TRIM0#,2#,3#
BLACK,TRIM2#
73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR
9010508473
9010508478
90105C0217
main90105-C0217
90105C0318
main90105-C0318
9011906951
9011908C96
9011908D16
90119C0074
main90119-C0074
90119C0107
main90119-C0107
90119C0223
main90119-C0223
90119C0263
main90119-C0263
90119C0478
main90119-C0478
90167C0004
main90167-C0004
90178C0032
main90178-C0032
90178C0034
main90178-C0034
9017906278
9018305094
9046705171
90467C0087
main90467-C0087
9167380616
9167380816
9356855014
9415180600
9415180800
42 parts on this diagram · 4 diagrams in section
