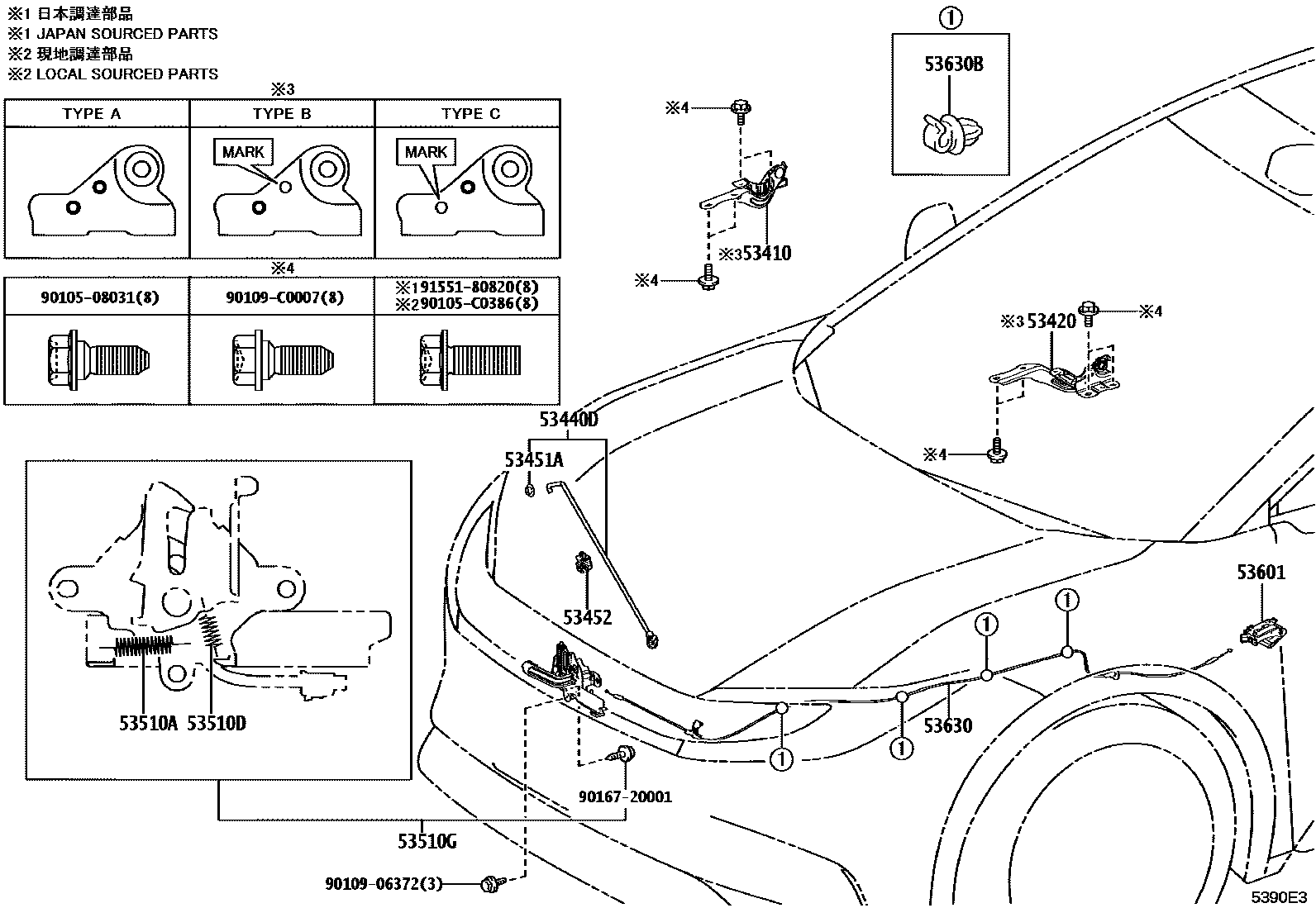

Toyota BZ3C — HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-03040iBEAG11202412

TYPE A:REFER ILLUST.

main53410-03050iBEAG11202412

TYPE B:REFER ILLUST.

main53410-03060iBEAG11202412

TYPE C:REFER ILLUST.

53420HINGE ASSY, HOOD, LH

main53420-03040iBEAG11202412

TYPE A:REFER ILLUST.

main53420-03050iBEAG11202412

TYPE B:REFER ILLUST.

main53420-03060iBEAG11202412

TYPE C:REFER ILLUST.

53440DSUPPORT ASSY, HOOD

main53440-03020iBEAG11202412

53451AGROMMET(FOR HOOD SUPPORT ROD)

main90480-15025iBEAG11¥220202412

(J)

main90480-C0005iBEAG11202412

(L)

53452HOLDER, HOOD STAY

main53452-0R030iBEAG11202412

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09055iBEAG11¥90202412

WD=0.9,CW=21

53510DSPRING, TENSION(FOR HOOD LOCK)

main90506-12063iBEAG11¥90202412

WD=1.2,CW=8.5

53510GLOCK ASSY, HOOD, W/COURTESY LAMP SWITCH

main53510-03030iBEAG11202412

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-0D011-C1iBEAG11..F,G,L202412

BLACK,TRIM0#,2#,3#

main53601-0D011-C1iBEAG11..F,G,L202412

BLACK,TRIM2#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-03020iBEAG11202412

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main90469-C0004iBEAG11202412

9010508031

main90105-08031¥110

90105C0386

main90105-C0386

9010906372

main90109-06372¥60

90109C0007

main90109-C0007

9016720001

main90167-20001¥70

9155180820

main91551-80820¥80

17 parts on this diagram · 1 diagram in section
