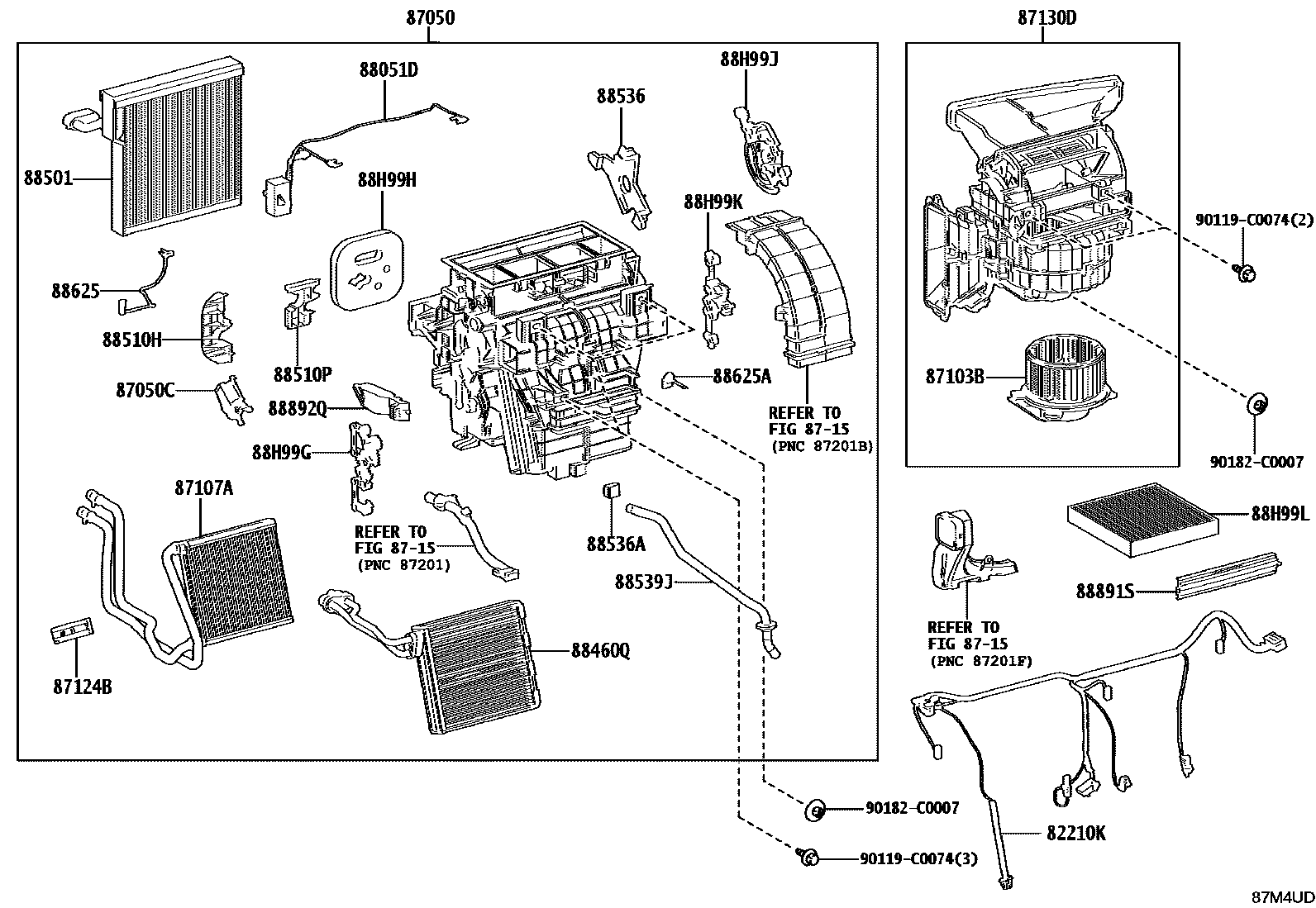

Toyota BZ3C — HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1

82210KHARNESS ASSY, AIR CONDITIONER

main82212-03010iBEAG11..G,L,N202412

main82212-03020iBEAG11..F202412

87050RADIATOR ASSY, AIR CONDITIONER

main87050-03010iBEAG11..G,L,N202412

main87050-03020iBEAG11..F202412

87050CDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1

main87106-03040iBEAG11202412

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-03020iBEAG11202412

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-03020iBEAG11202412

87124BCLAMP, HEATER

main87124-03010iBEAG11202412

87130DBLOWER ASSY

main87130-03030iBEAG11202412

8715

88051DGENERATOR SUB-ASSY, ION

main88051-03010iBEAG11..F202412

88460QCONDENSER ASSY

main88460-03040iBEAG11202412

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-03020iBEAG11202412

88510HPLATE, COOLER UNIT, NO.1

main88899-03040iBEAG11202412

88510PPLATE, COOLER UNIT, NO.2

main88899-03060iBEAG11202412

88536BRACKET, COOLING UNIT, NO.1

main88899-03090iBEAG11202412

88536ABRACKET, COOLING UNIT, NO.2

main88899-03110iBEAG11202412

88539JHOSE, DRAIN COOLER

main88539-03030iBEAG11202412

88625THERMISTOR, COOLER, NO.1

main88620-03020iBEAG11202412

88625ATHERMISTOR, COOLER NO.2

main88625-03020iBEAG11202412

88891SCOVER, COOLER, NO.1

main88899-03120iBEAG11202412

88892QPLATE, COOLER

main88899-03030iBEAG11202412

88H99GPARTS, COOLING UNIT, NO.1

main88899-03050iBEAG11202412

88H99HPARTS, COOLING UNIT, NO.2

main88899-03070iBEAG11202412

88H99JPARTS, COOLING UNIT, NO.3

main88899-03080iBEAG11202412

88H99KPARTS, COOLING UNIT, NO.4

main88899-03100iBEAG11202412

88H99LPARTS, COOLING UNIT, NO.5

main88899-03020iBEAG11202412

90119C0074

main90119-C0074

90182C0007

main90182-C0007

27 parts on this diagram · 2 diagrams in section
