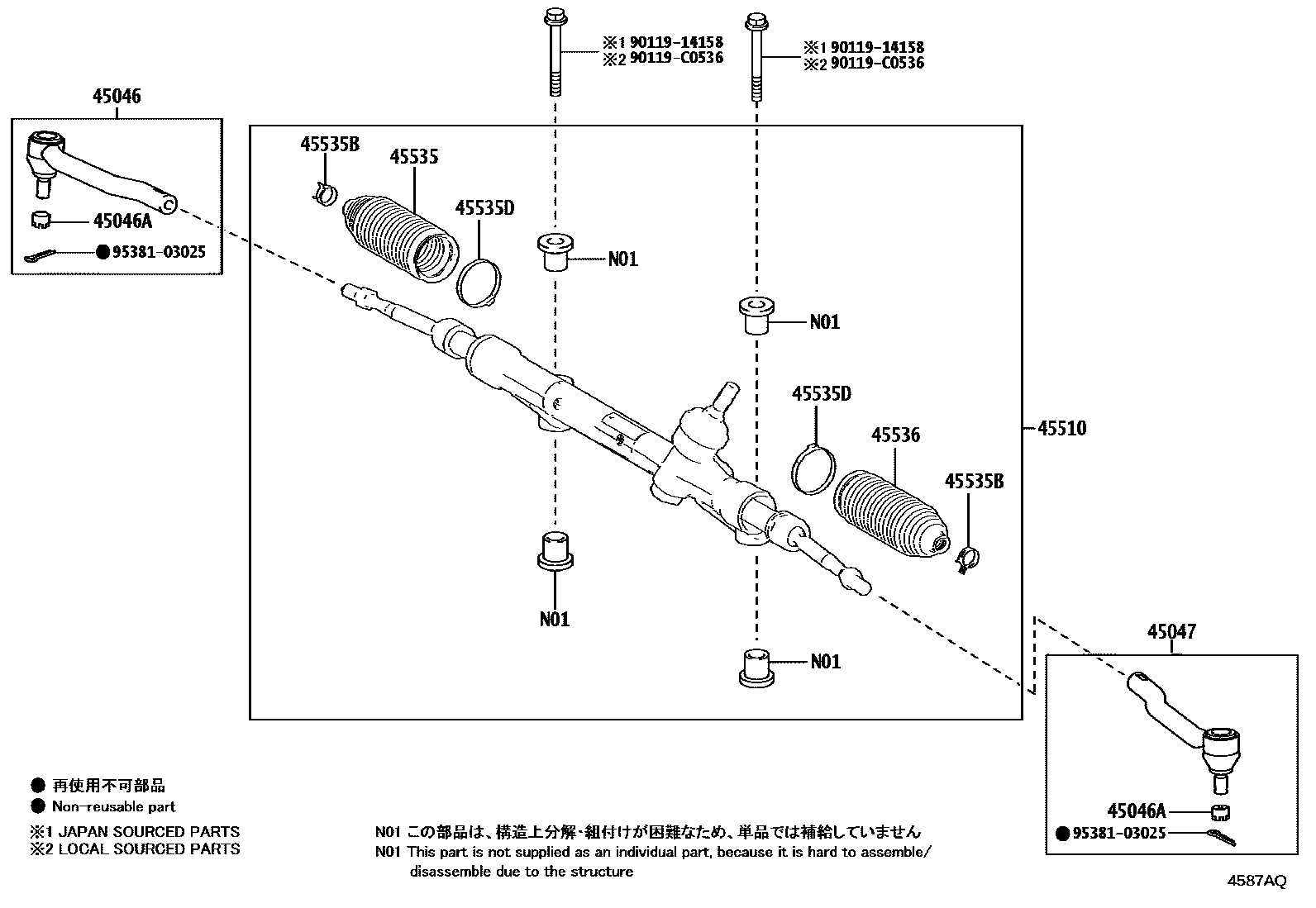

Toyota BZ3C — FRONT STEERING GEAR & LINK

45046END SUB-ASSY, TIE ROD, RH

main45046-09A40iBEAG11202412

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iBEAG11¥130202412

(J)

main90171-C0001iBEAG11202412

(L)

45047END SUB-ASSY, TIE ROD, LH

main45047-09470iBEAG11202412

45510GEAR ASSY, STEERING

main45510-03020iBEAG11202412

45535BOOT, STEERING RACK, NO.1

main45535-09780iBEAG11202412

45535BCLIP(FOR STEERING RACK BOOT)

main45537-03010iBEAG11202412

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main45538-03010iBEAG11202412

45536BOOT, STEERING RACK, NO.2

main45535-09780iBEAG11202412

9011914158

main90119-14158¥430

90119C0536

main90119-C0536

9538103025

main95381-03025¥130

11 parts on this diagram · 1 diagram in section
