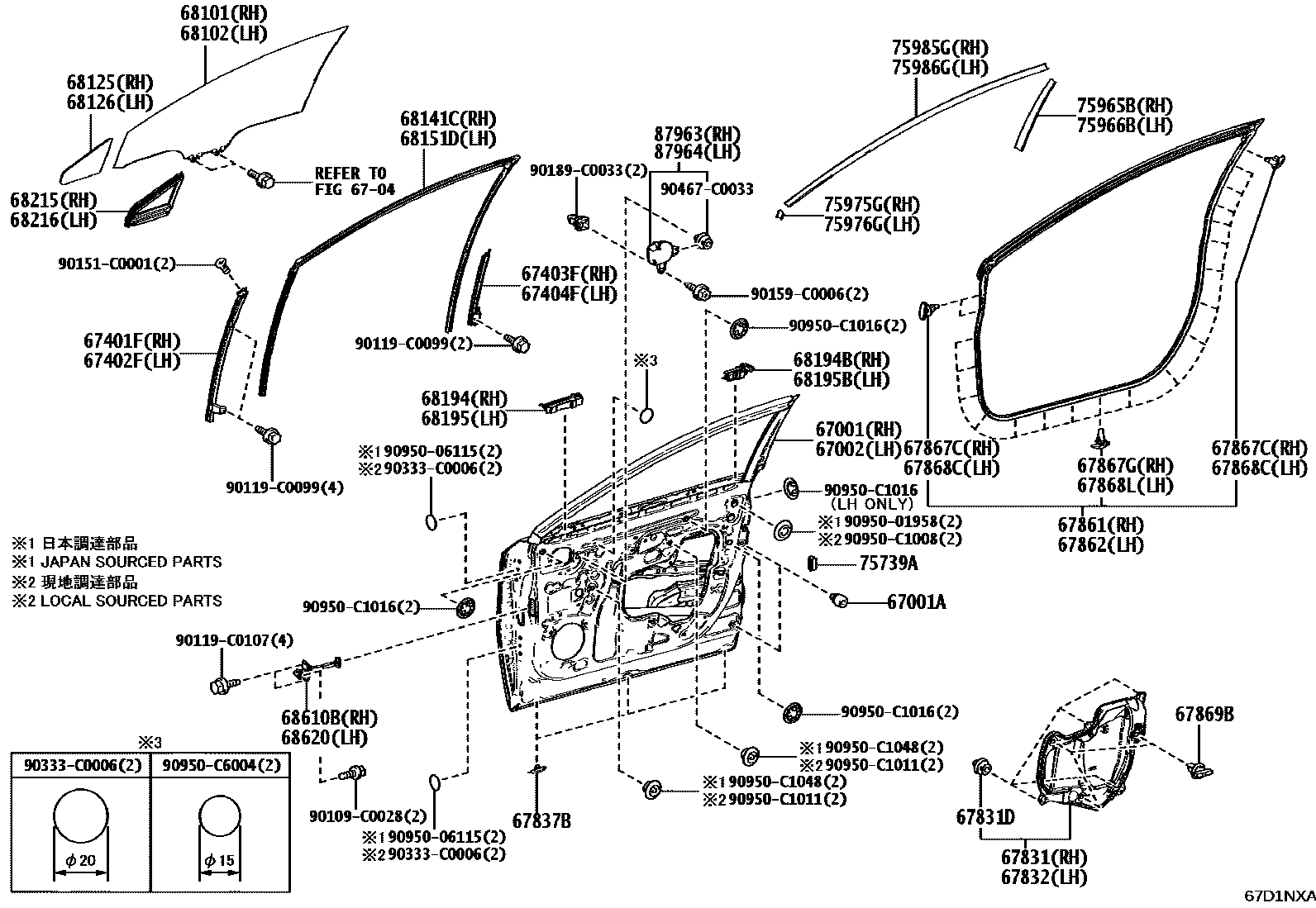

Toyota BZ3C — FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-03100iBEAG11202412

67001ACUSHION, FRONT DOOR PANEL

main90541-09124iBEAG11¥100202412

(J)

main90541-C0003iBEAG11202412

(L)

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-03040iBEAG11202412

6704

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-03030iBEAG11202412

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-03030iBEAG11202412

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-03020iBEAG11202412

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-03020iBEAG11202412

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-03030iBEAG11202412

67831DCLIP(FOR FRONT DOOR SERVICE HOLE COVER)

main90467-C0033iBEAG11202412

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-03030iBEAG11202412

67837BSEAL, FRONT DOOR DUST PROOF

main67837-02150iBEAG11202412

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-03030iBEAG11202412

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-03030iBEAG11202412

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-0D070iBEAG11202412

67867GRETAINER, DOOR WEATHERSTRIP, RH

main67868-0D040iBEAG11202412

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-0D070iBEAG11202412

67868LRETAINER, DOOR WEATHERSTRIP, LH

main67867-12150iBEAG11¥100202412

67869BCLIP, FRONT DOOR WEATHERSTRIP

main67869-F4020iBEAG11202412

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-03040iBEAG11..G,L,N202412

main68101-03050iBEAG11..F202412

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-03040iBEAG11..G,L,N202412

main68102-03050iBEAG11..F202412

68125GLASS, FRONT DOOR FIX WINDOW, RH

main68125-03020iBEAG11202412

68126GLASS, FRONT DOOR FIX WINDOW, LH

main68126-03020iBEAG11202412

68141CRUN, FRONT DOOR GLASS, RH

main68141-03020iBEAG11202412

68151DRUN, FRONT DOOR GLASS, LH

main68151-03020iBEAG11202412

68194SEAL, FRONT DOOR BELT, RH

main681A1-03010iBEAG11202412

68194BSEAL, FRONT DOOR BELT, REAR RH

main681A3-03010iBEAG11202412

68195SEAL, FRONT DOOR BELT, LH

main681A2-03010iBEAG11202412

68195BSEAL, FRONT DOOR BELT, REAR LH

main681A4-03010iBEAG11202412

68215WEATHERSTRIP, FRONT DOOR FIX WINDOW, RH

main68215-03020iBEAG11202412

68216WEATHERSTRIP, FRONT DOOR FIX WINDOW, LH

main68216-03020iBEAG11202412

68610BCHECK ASSY, FRONT DOOR, RH

main68610-03020iBEAG11202412

68620CHECK ASSY, FRONT DOOR, LH

main68610-03020iBEAG11202412

75739AMOULDING DOOR EDGE

main75739-02010iBEAG11202412

RH

main75739-12011iBEAG11¥130202412

LH

75965BSTRIPE, FRONT DOOR NO.4 RH

main75965-03020iBEAG11202412

75966BSTRIPE, FRONT DOOR NO.4 LH

main75966-03020iBEAG11202412

75975GSTRIPE, FRONT DOOR, NO.2 RH

main75975-03020iBEAG11202412

75976GSTRIPE, FRONT DOOR, NO.2 LH

main75976-03020iBEAG11202412

75985GSTRIPE, FRONT DOOR OUTSIDE, RH

main75985-03020iBEAG11202412

75986GSTRIPE, FRONT DOOR OUTSIDE, LH

main75986-03020iBEAG11202412

87963COVER, OUTER MIRROR INSTALL HOLE, RH

main87963-03020iBEAG11202412

87964COVER, OUTER MIRROR INSTALL HOLE, LH

main87964-03020iBEAG11202412

90109C0028

main90109-C0028

90119C0099

main90119-C0099

90119C0107

main90119-C0107

90151C0001

main90151-C0001

90159C0006

main90159-C0006

90189C0033

main90189-C0033

90333C0006

main90333-C0006

90467C0033

main90467-C0033

9095001958

main90950-01958¥120

9095006115

main90950-06115¥110

90950C1008

main90950-C1008

90950C1011

main90950-C1011

90950C1016

main90950-C1016

90950C1048

main90950-C1048

90950C6004

main90950-C6004

57 parts on this diagram · 2 diagrams in section
