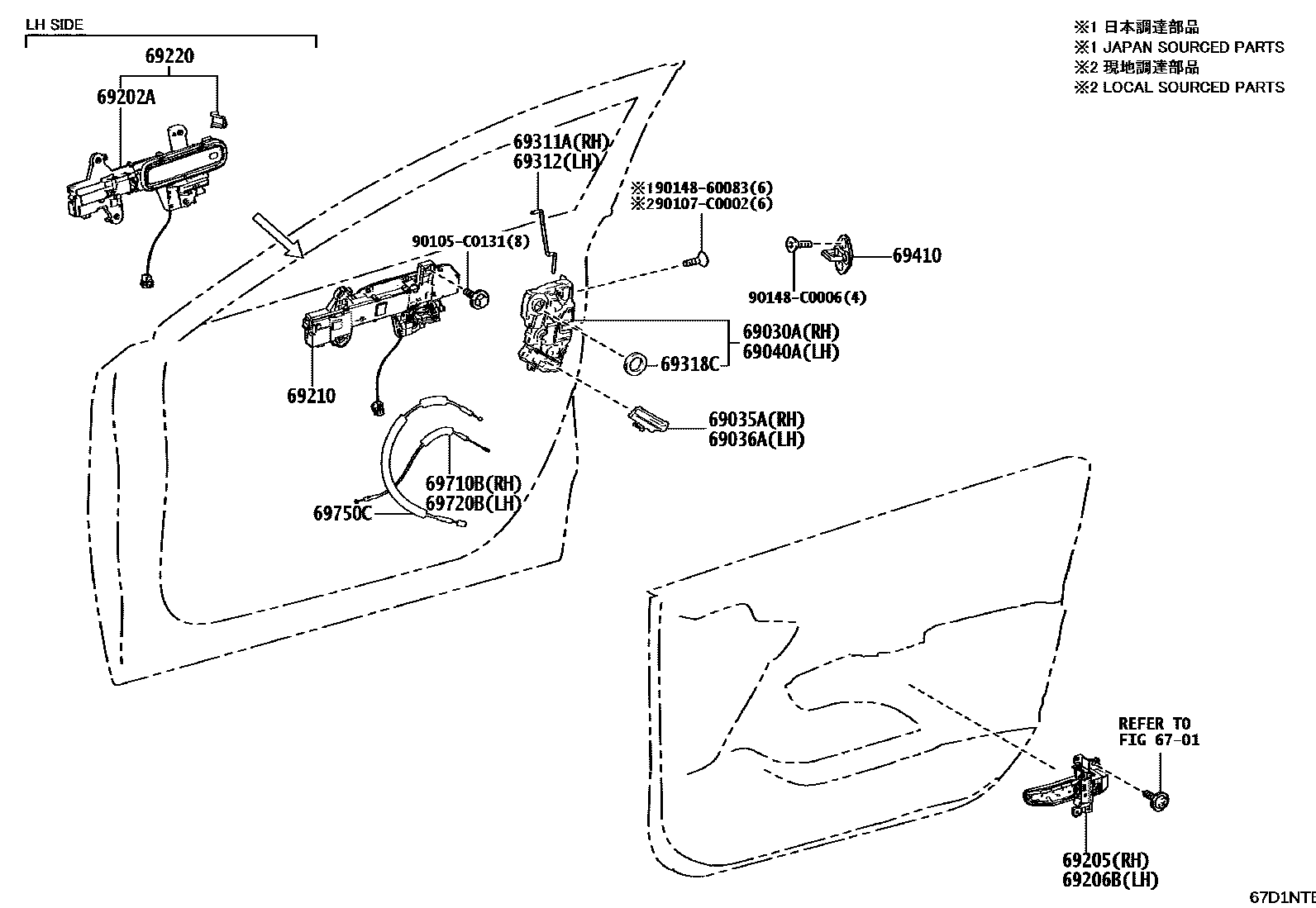

Toyota BZ3C — FRONT DOOR LOCK & HANDLE
6701
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH
69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
PLATINUM WHITE PEARL MC.,089 ,2PU
METAL STREAM ME,1K0 ,2UY
PRECIOUS METAL,1L5 ,2YV
BLACK MC.,209
EMOTIONAL RED 2,2SZ ,3U5
SULFUR ME.,5C7 ,M46
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
PLATINUM WHITE PEARL MC.,089 ,2PU
METAL STREAM ME,1K0 ,2UY
PRECIOUS METAL,1L5 ,2YV
BLACK MC.,209
EMOTIONAL RED 2,2SZ ,3U5
SULFUR ME.,5C7 ,M46
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
PLATINUM WHITE PEARL MC.,089 ,2PU
METAL STREAM ME,1K0 ,2UY
PRECIOUS METAL,1L5 ,2YV
BLACK MC.,209
EMOTIONAL RED 2,2SZ ,3U5
SULFUR ME.,5C7 ,M46
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
90105C0131
main90105-C0131
90107C0002
main90107-C0002
9014860083
90148C0006
main90148-C0006
21 parts on this diagram · 1 diagram in section
