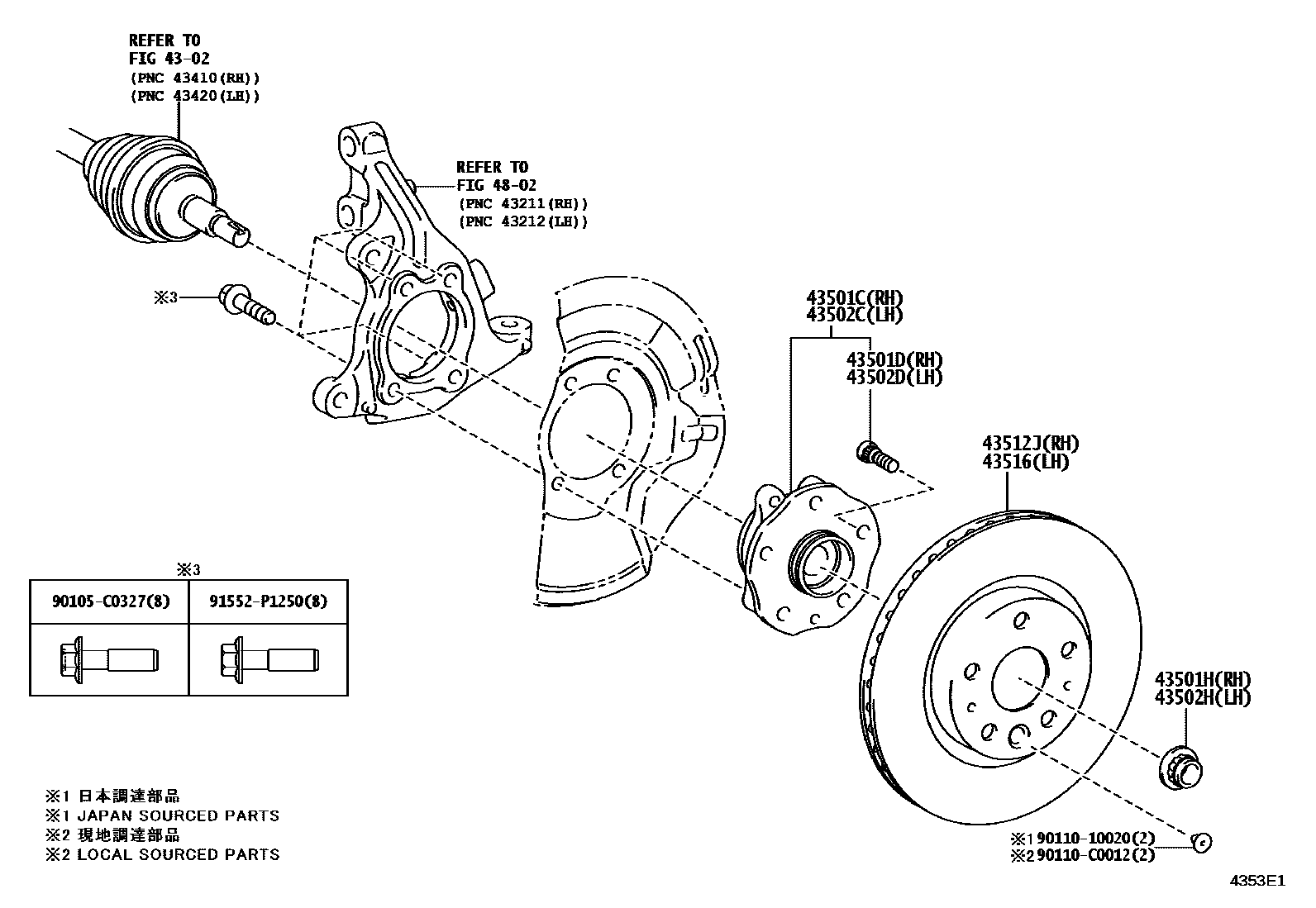

Toyota BZ3C — FRONT AXLE HUB

4302

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-03020iBEAG11202412

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02079iBEAG11¥220202412

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-26001iBEAG11¥260202412

(J)

main90177-C0014iBEAG11202412

(L)

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-03020iBEAG11202412

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02079iBEAG11¥220202412

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-26001iBEAG11¥260202412

(J)

main90177-C0014iBEAG11202412

(L)

43512JDISC, FRONT RH

main43512-03030iBEAG11..L,N202412

main43512-03040iBEAG11..F,G202412

43516DISC, FRONT LH

main43512-03030iBEAG11..L,N202412

main43512-03040iBEAG11..F,G202412

4802

90105C0327

main90105-C0327

9011010020

main90110-10020¥60

90110C0012

main90110-C0012

91552P1250

main91552-P1250¥190

14 parts on this diagram · 1 diagram in section
