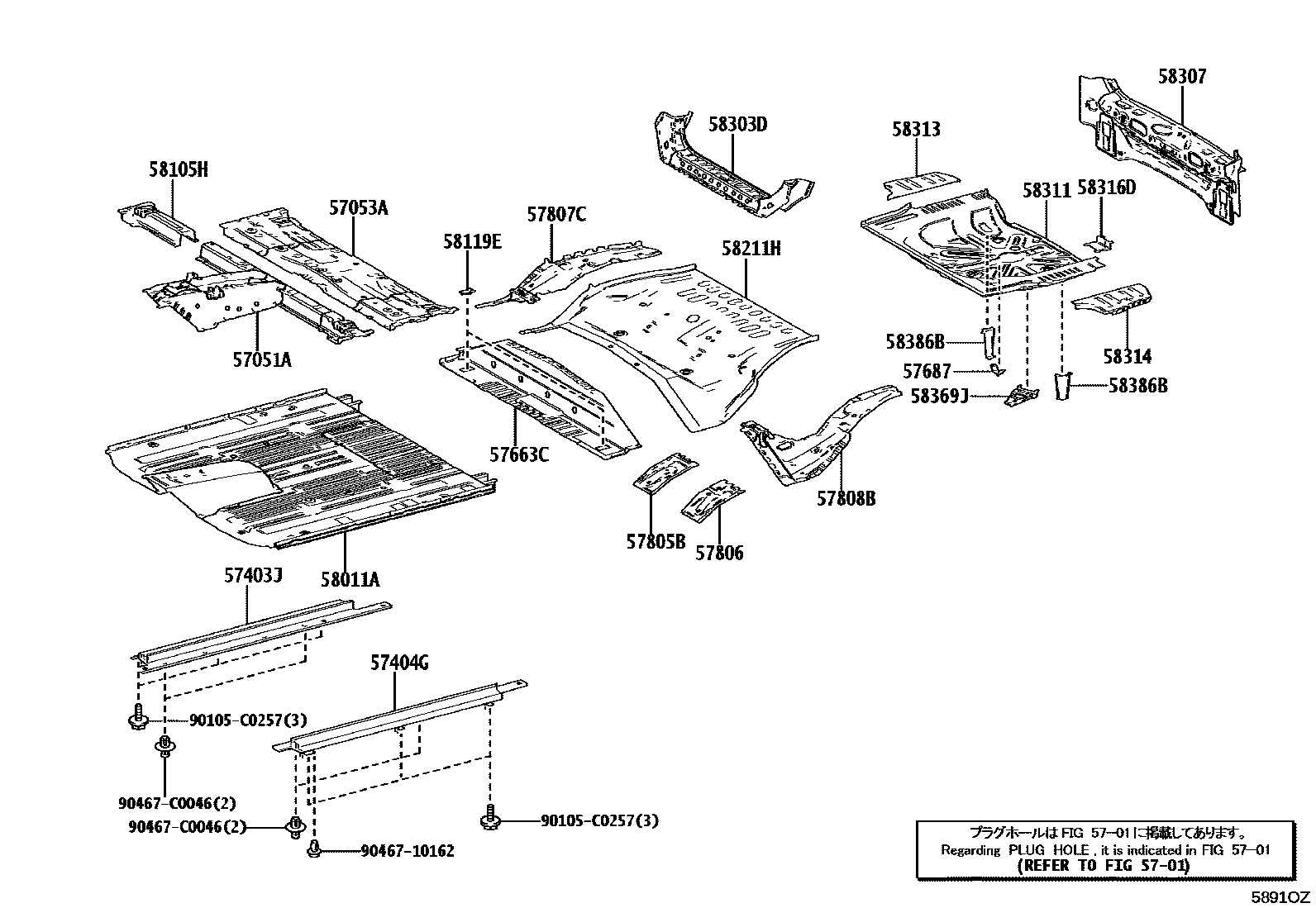

Toyota BZ3C — FLOOR PAN & LOWER BACK PANEL

5701

57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-03040iBEAG11202412

57053AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER

main57053-03031iBEAG11202412

57403JREINFORCE SUB-ASSY, FLOOR SIDE, INNER RH

main57403-03020iBEAG11202412

57404GREINFORCE SUB-ASSY, FLOOR SIDE, INNER LH

main57404-03020iBEAG11202412

57663CMEMBER, REAR FLOOR CROSS, CENTER

main57663-03020iBEAG11202412

57687BRACKET, FUEL TANK MOUNTING, NO.4

main57687-03020iBEAG11202412

57805BREINFORCEMENT SUB-ASSY, BELT ANCHOR, RH

main57805-03021iBEAG11202412

57806REINFORCEMENT SUB-ASSY, BELT ANCHOR, LH

main57806-03021iBEAG11202412

57807CREINFORCE SUB-ASSY, REAR FLOOR SIDE MEMBER, FRONT NO.2 RH

main57807-03010iBEAG11202412

57808BREINFORCE SUB-ASSY, REAR FLOOR SIDE MEMBER, FRONT NO.2 LH

main57808-03010iBEAG11202412

58011APANEL SUB-ASSY, FLOOR PANEL SIDE, RH

main58011-03051iBEAG11202412

58105HBRACKET SUB-ASSY, FRONT SEAT MOUNTING, OUTSIDE RH

main58105-03010iBEAG11202412

58119ECOVER, FRONT FLOOR SIDE, FRONT

main58119-03010iBEAG11202412

58211HPAN, CENTER FLOOR

main58211-03051iBEAG11202412

58303DPANEL SUB-ASSY, REAR FLOOR PARTITION

main58303-03010iBEAG11202412

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-03050iBEAG11202412

58311PAN, REAR FLOOR

main58311-03020iBEAG11202412

58313PANEL, REAR FLOOR SIDE, RH

main58313-03020iBEAG11202412

58314PANEL, REAR FLOOR SIDE, LH

main58314-03020iBEAG11202412

58316DEXTENSION, REAR FLOOR PAN, LH

main58316-03010iBEAG11202412

58369JBRACKET, REAR FLOOR BRACE

main58369-03010iBEAG11202412

58386BBRACKET, REAR BUMPER COVER, NO.2

main58386-03020iBEAG11202412

90105C0257

main90105-C0257

9046710162

main90467-10162¥90

90467C0046

main90467-C0046

26 parts on this diagram · 1 diagram in section
