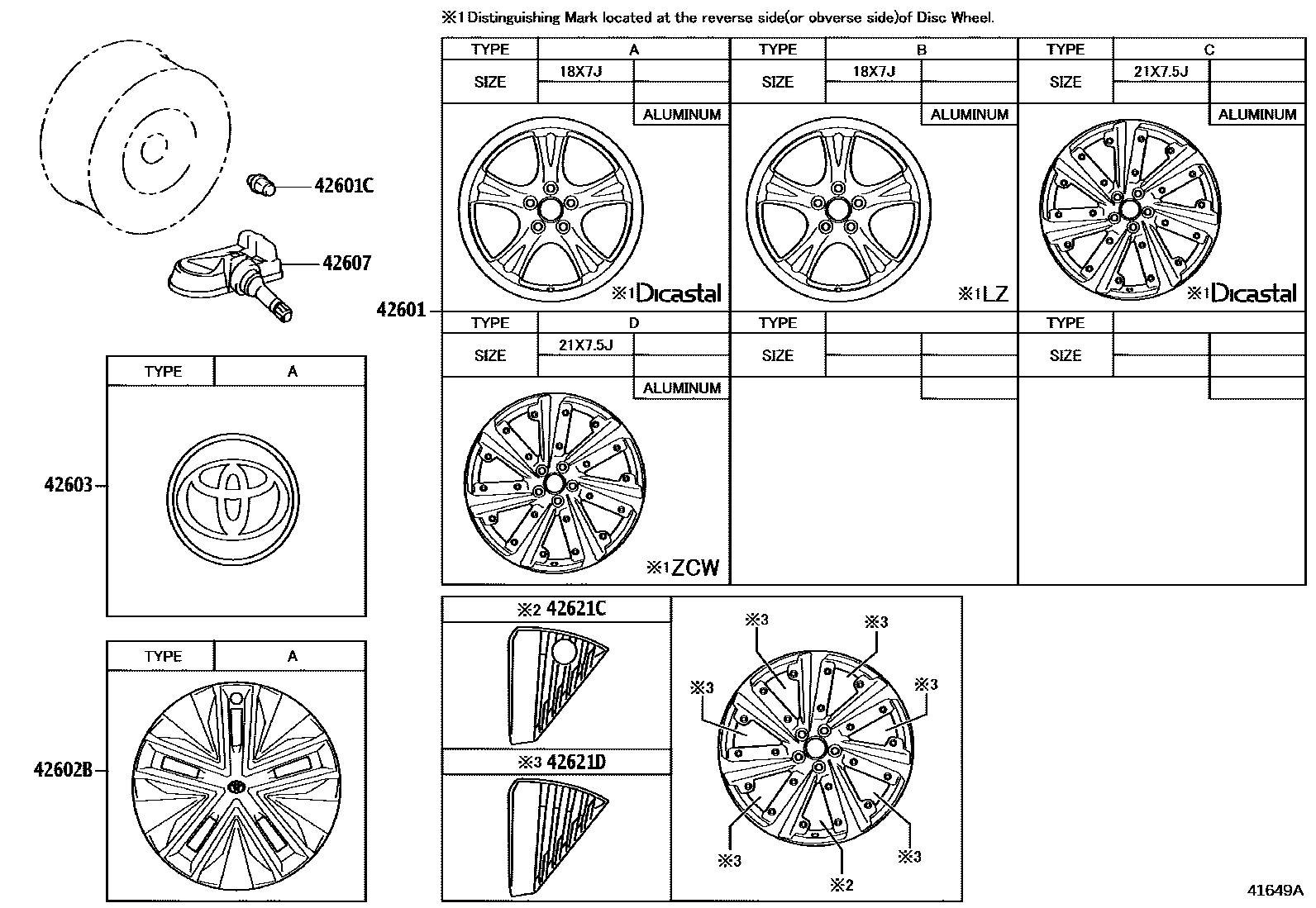

Toyota BZ3C — DISC WHEEL & WHEEL CAP

0001 1 0002 1

42601WHEEL, DISC

main42611-03102iBEAG11..F,G,L202412

21X7.5J,#,TYPE C:REFER ILLUST.

main42611-03110iBEAG11..N202412

18X7J,#,TYPE A:REFER ILLUST.

main42611-03110iBEAG11..N202412

18X7J,#,TIRE & DISC WHEEL-225/60R18, ALUMINUM,TYPE A:REFER ILLUST.

main42611-03122iBEAG11..F,G,L202412

21X7.5J,#,TYPE D:REFER ILLUST.

main42611-03130iBEAG11..N202412

18X7J,#,TYPE B:REFER ILLUST.

main42611-03130iBEAG11..N202412

18X7J,#,TIRE & DISC WHEEL-225/60R18, ALUMINUM,TYPE B:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main90942-01115iBEAG11..F,G,L¥340202412

(J)

main90942-C1001iBEAG11..N202412

TIRE & DISC WHEEL-225/60R18, ALUMINUM

main90942-C1003iBEAG11..F,G,L202412

(L)

42602BCAP SUB-ASSY, WHEEL

main42602-03060iBEAG11..N202412

TYPE A:REFER ILLUST.

main42602-03060iBEAG11..N202412

TIRE & DISC WHEEL-225/60R18, ALUMINUM,TYPE A:REFER ILLUST.

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-0R020iBEAG11..F,G,L202412

*ALU,TYPE A:REFER ILLUST.

42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR

main42607-03011iBEAG11202412

42621CCAP, WHEEL, W/VALVE HOLE

main42602-03051iBEAG11..F,G,L202412

42621DCAP, WHEEL, W/O VALVE HOLE

main42602-03041iBEAG11..F,G,L202412

7 parts on this diagram · 2 diagrams in section
