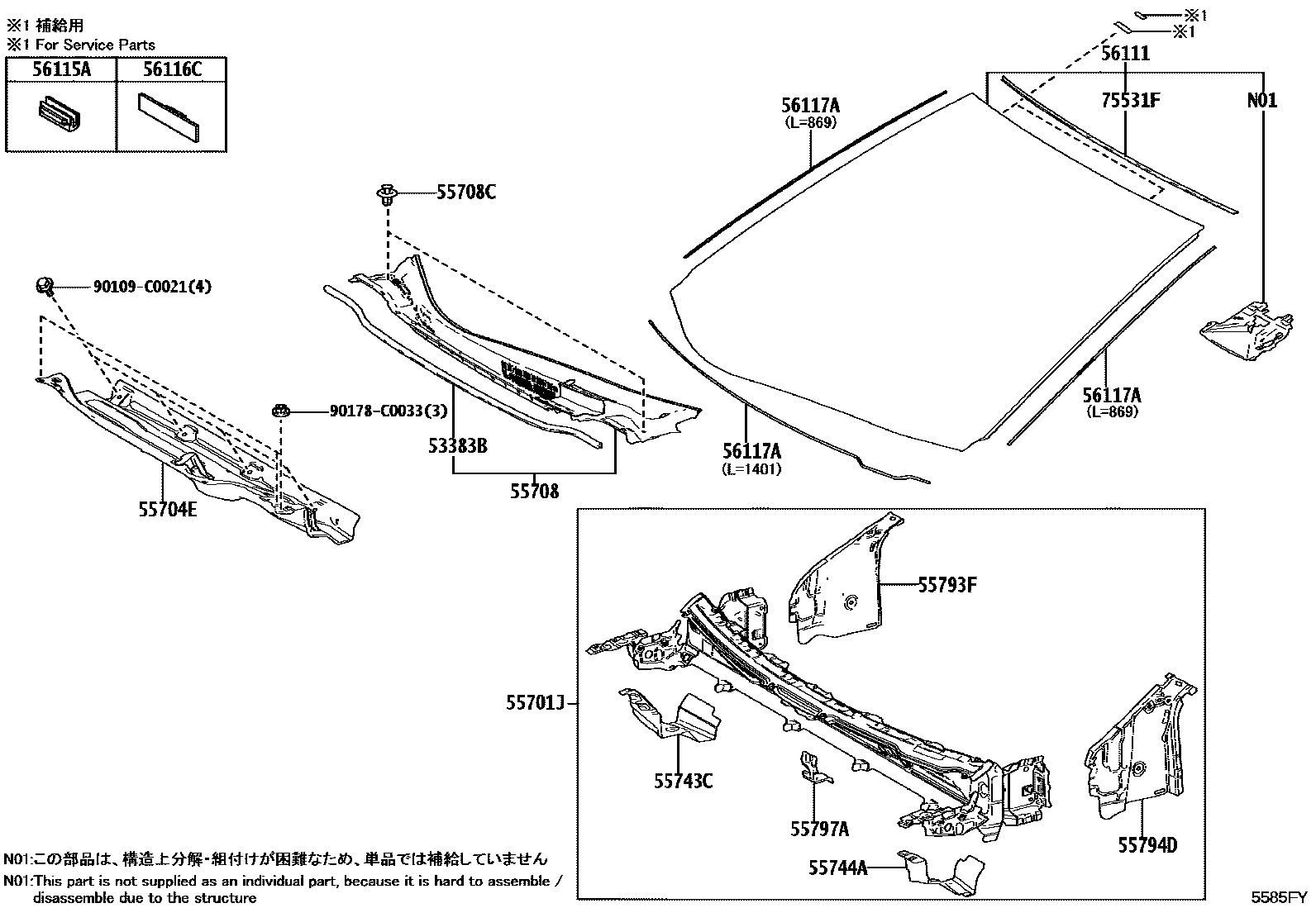

Toyota BZ3C — COWL PANEL & WINDSHIELD GLASS

53383BSEAL, HOOD TO COWL TOP

main53383-03030iBEAG11202412

55701JPANEL SUB-ASSY, COWL TOP, OUTER

main55701-03040iBEAG11202412

55704EREINFORCEMENT SUB-ASSY, COWL TOP, INNER

main55704-03013iBEAG11202412

55708LOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-03020iBEAG11202412

55708CCLIP, COWL TOP VENTILATOR LOUVER

main90467-C0043iBEAG11202412

55743CBRACKET, PARKING BRAKE MOUNTING

main55743-03010iBEAG11202412

55744AREINFORCEMENT, PEDAL BRACKET MOUNTING

main55744-03010iBEAG11202412

55793FCOVER, COWL REINFORCEMENT, UPPER NO.2 RH

main55793-03020iBEAG11202412

55794DCOVER, COWL REINFORCEMENT, UPPER NO.2 LH

main55794-03020iBEAG11202412

55797ASEAL, COWL WATER EXTRACT

main55797-03010iBEAG11202412

56111GLASS, WINDSHIELD

main56101-03010iBEAG11..N202412

main56101-03020iBEAG11..F,G,L202412

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100iBEAG11¥130202412

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iBEAG11¥120202412

56117ADAM, WINDOW GLASS ADHESIVE

main56117-64010iBEAG11¥1,480202412

*D,L=1401 OR 869

main56117-64010iBEAG11¥1,480202412

*D,L=1401 OR 869,ADVANCED PACKAGE

75531FMOULDING, WINDSHIELD, OUTSIDE UPPER

main75531-03060iBEAG11202412

90109C0021

main90109-C0021

90178C0033

main90178-C0033

17 parts on this diagram · 1 diagram in section
