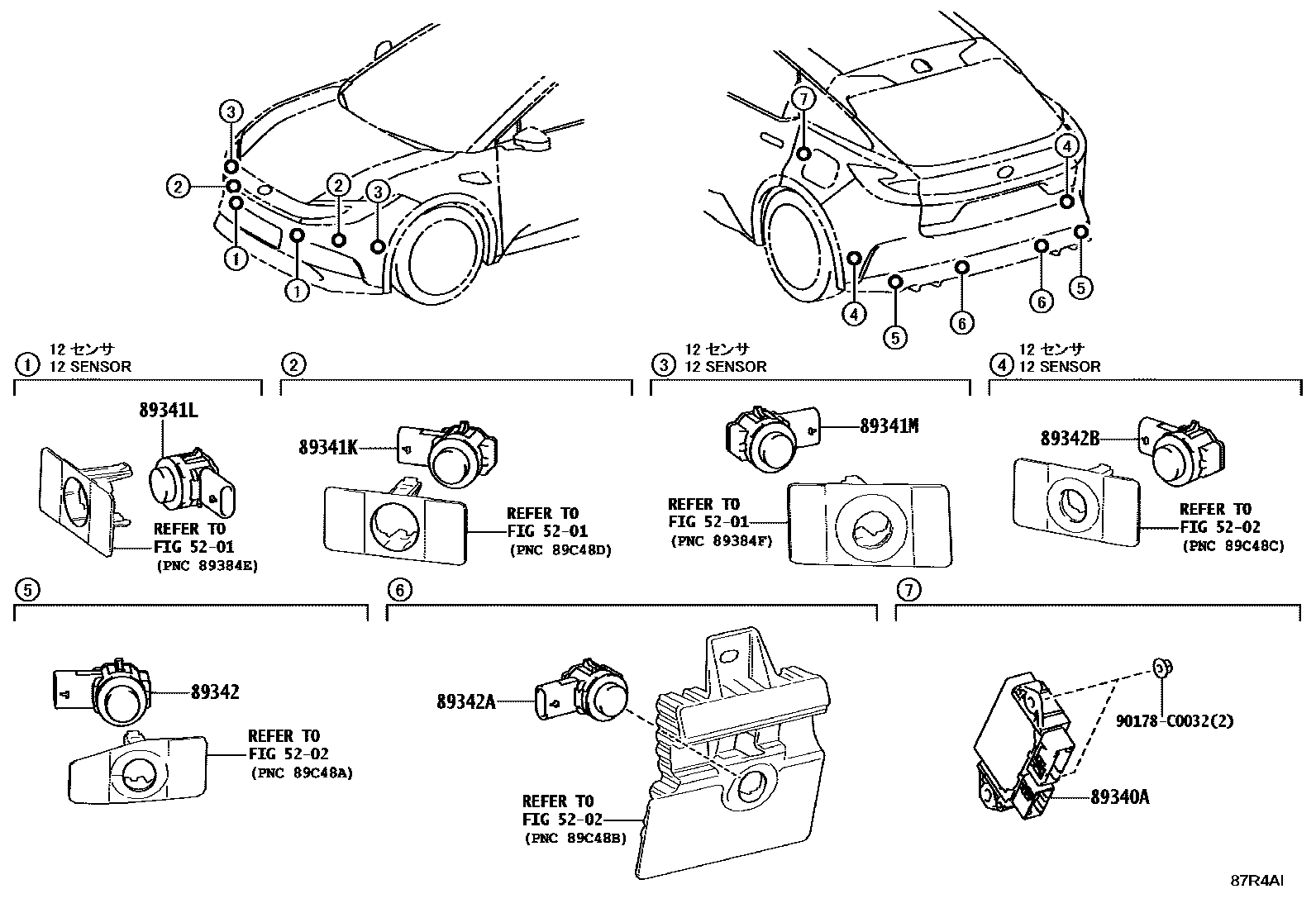

Toyota BZ3C — CLEARANCE & BACK SONAR

5201

5202

89340ACOMPUTER ASSY, CLEARANCE WARNING

89341KSENSOR, ULTRASONIC, FRONT CORNER

main89341-03090-A0iBEAG11202412

PLATINUM WHITE PEARL MC.,089 ,2PU

main89341-03090-B0iBEAG11202412

METAL STREAM ME,1K0 ,2UY

main89341-03090-B1iBEAG11202412

PRECIOUS METAL,1L5 ,2YV

main89341-03090-C0iBEAG11202412

BLACK MC.,209

main89341-03090-D0iBEAG11202412

EMOTIONAL RED 2,2SZ ,3U5

main89341-03090-F0iBEAG11202412

SULFUR ME.,5C7 ,M46

89341LSENSOR, ULTRASONIC, FRONT CENTER

89341MSENSOR, ULTRASONIC, FRONT SIDE

89342SENSOR, ULTRASONIC, REAR CORNER

main89341-03120iBEAG11202412

89342ASENSOR, ULTRASONIC, REAR CENTER

main89341-03120iBEAG11202412

89342BSENSOR, ULTRASONIC, REAR SIDE

90178C0032

main90178-C0032

10 parts on this diagram · 1 diagram in section
