Toyota BZ3 — SWITCH & RELAY & COMPUTER

0001 1MOTOR COMPARTMENT 0002 1MOTOR COMPARTMENT RELAY BLOCK0003 1COWL 0004 1INSTRUMENT PANEL 0005 1CONSOLE BOX 0006 1STEERING 0007 1SEAT 0008 1DOOR & ROOF 0009 1FLOOR & LUGGAGE

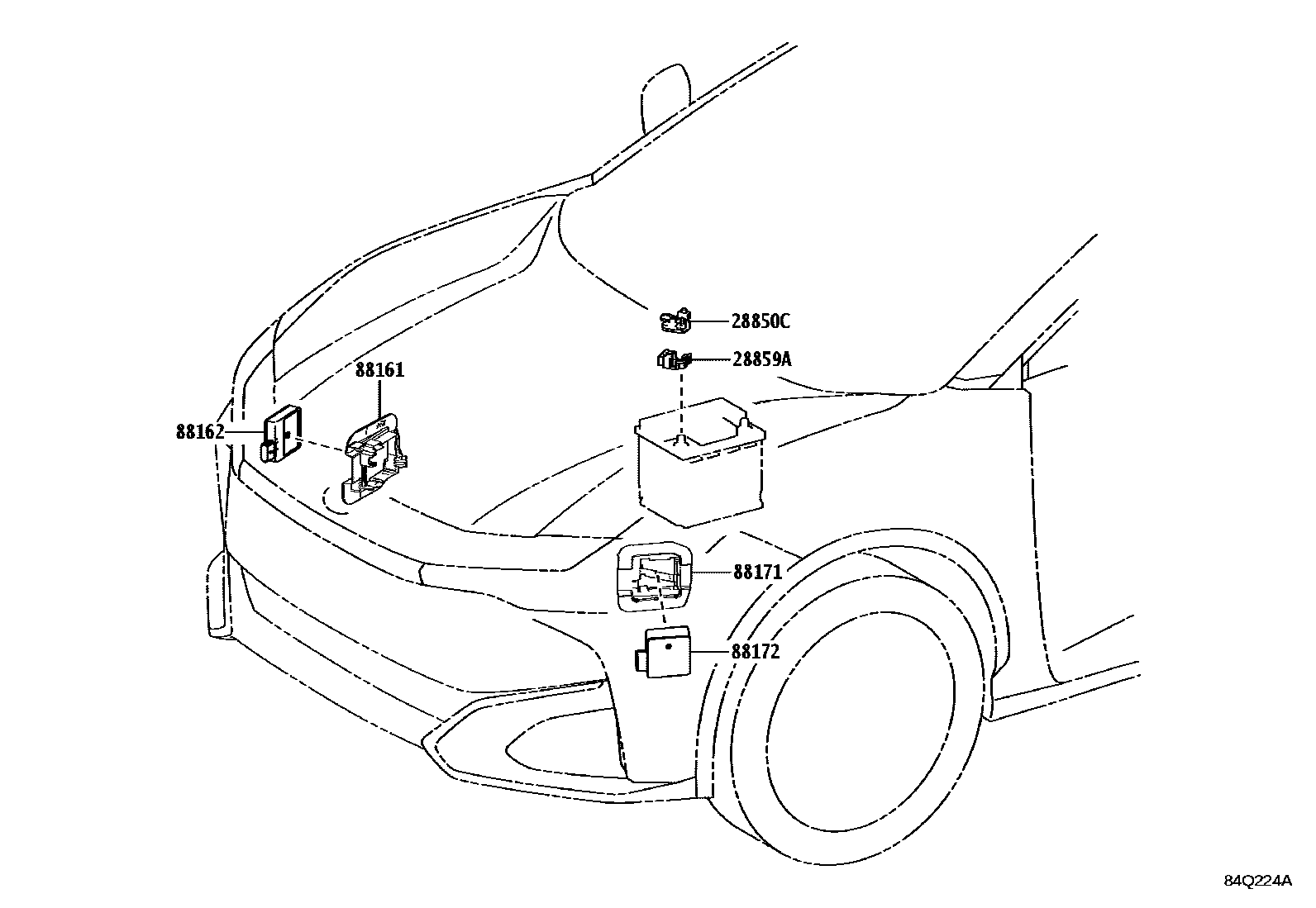

28850CSENSOR ASSY, BATTERY STATE

main28850-K0010iEM..BEAM10¥7,400202301

28859AHOLDER, BATTERY CURRENT SENSOR

main28859-F0170iEM..BEAM10202301

88161BRACKET, BLIND SPOT MONITOR, RH

main88161-03010iBEJG10..M,N202407

SAFETY PACKAGE

main88161-03010iBEAM10..J202301

SAFETY PACKAGE

main88161-03040iBEJG10..H202407

88162SENSOR, BLIND SPOT MONITOR, RH

main88162-03020iBEAM10..M,N202301

SAFETY PACKAGE

main88162-03020iBEJG10..J202407

SAFETY PACKAGE

main88162-03070iBEJG10..H202407

88171BRACKET, BLIND SPOT MONITOR, LH

main88171-03010iBEAM10..J202301

SAFETY PACKAGE

main88171-03010iBEJG10..H,J202407

SAFETY PACKAGE

main88171-03040iBEJG10..H202407

88172SENSOR, BLIND SPOT MONITOR, LH

main88162-03020iBEJG10..J202407

SAFETY PACKAGE

main88162-03020iBEAM10..J202301

SAFETY PACKAGE

main88162-03070iBEJG10..H202407

6 parts on this diagram · 9 diagrams in section
