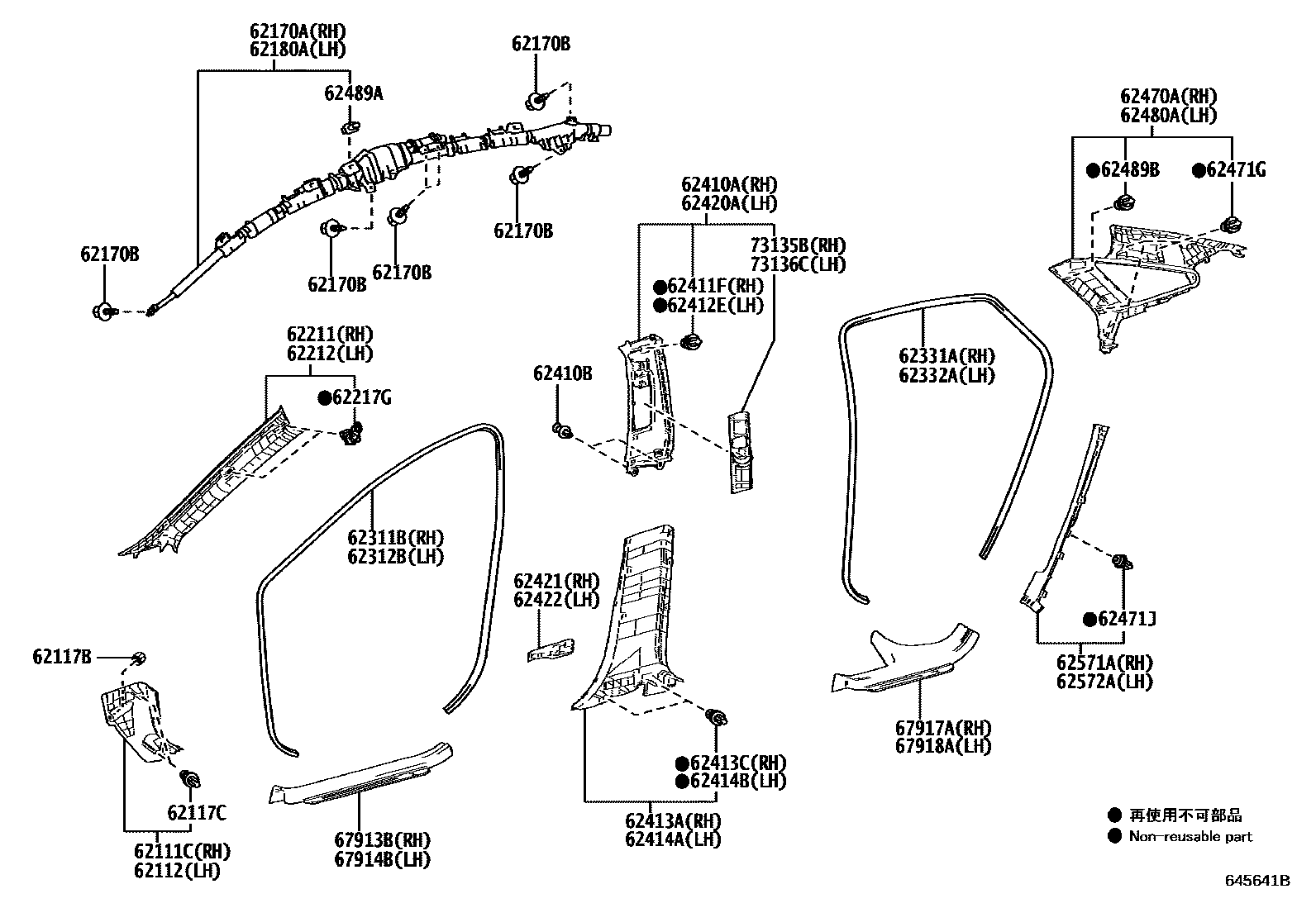

Toyota BZ3 — INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING
62111CBOARD, COWL SIDE TRIM, RH
BLACK,TRIM0#,2#
BLACK,TRIM0#,1#,2#,4#
BLACK,TRIM0#,2#
62112BOARD, COWL SIDE TRIM, LH
BLACK,TRIM0#,1#,2#,4#
BLACK,TRIM0#,2#
62117CCLIP, NO.2(FOR COWL SIDE TRIM)
62211GARNISH, FRONT PILLAR, RH
LT.GRAY,TRIM0#,2#
LT.GRAY,TRIM0#,1#,2#,4#
62212GARNISH, FRONT PILLAR, LH
LT.GRAY,TRIM0#,2#
LT.GRAY,TRIM0#,1#,2#,4#
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
62410AGARNISH ASSY, CENTER PILLAR, RH
LT.GRAY,TRIM0#,2#
LT.GRAY,TRIM0#,1#,2#,4#
62411FCLIP, CENTER PILLAR GARNISH, RH
62412ECLIP, CENTER PILLAR GARNISH, LH
62413AGARNISH, CENTER PILLAR, LOWER RH
BLACK,TRIM0#,1#,2#,4#
BLACK,TRIM0#,2#
62414AGARNISH, CENTER PILLAR, LOWER LH
BLACK,TRIM0#,2#
BLACK,TRIM0#,1#,2#,4#
62420AGARNISH ASSY, CENTER PILLER, LH
LT.GRAY,TRIM0#,2#
LT.GRAY,TRIM0#,1#,2#,4#
62421COVER, CENTER PILLAR GARNISH, RH
BLACK,TRIM0#,2#
BLACK,TRIM0#,1#,2#,4#
62422COVER, CENTER PILLAR GARNISH, LH
BLACK,TRIM0#,2#
BLACK,TRIM0#,1#,2#,4#
62470AGARNISH ASSY, ROOF SIDE, INNER RH
LT.GRAY,TRIM0#,2#
LT.GRAY,TRIM0#,1#,2#,4#
62480AGARNISH ASSY, ROOF SIDE, INNER LH
LT.GRAY,TRIM0#,2#
LT.GRAY,TRIM0#,1#,2#,4#
62571AGARNISH, ROOF SIDE, INNER LOWER RH
BLACK,TRIM0#,2#
BLACK,TRIM0#,1#,2#,4#
62572AGARNISH, ROOF SIDE INNER LOWER LH
BLACK,TRIM0#,2#
BLACK,TRIM0#,1#,2#,4#
67913BPLATE, FRONT DOOR SCUFF, RH
BLACK,TRIM0#,2#
BLACK,TRIM0#,1#,2#,4#
67914BPLATE, FRONT DOOR SCUFF, LH
BLACK,TRIM0#,2#
BLACK,TRIM0#,1#,2#,4#
67917APLATE, REAR DOOR SCUFF, RH
BLACK,TRIM0#,2#
BLACK,TRIM0#,1#,2#,4#
67918APLATE, REAR DOOR SCUFF, LH
BLACK,TRIM0#,2#
BLACK,TRIM0#,1#,2#,4#
73135BCOVER, SHOULDER BELT ANCHOR, RH
LT.GRAY,TRIM0#,2#
LT.GRAY,TRIM0#,1#,2#,4#
73136CCOVER, SHOULDER BELT ANCHOR, LH
LT.GRAY,TRIM0#,2#
LT.GRAY,TRIM0#,1#,2#,4#
39 parts on this diagram · 1 diagram in section
