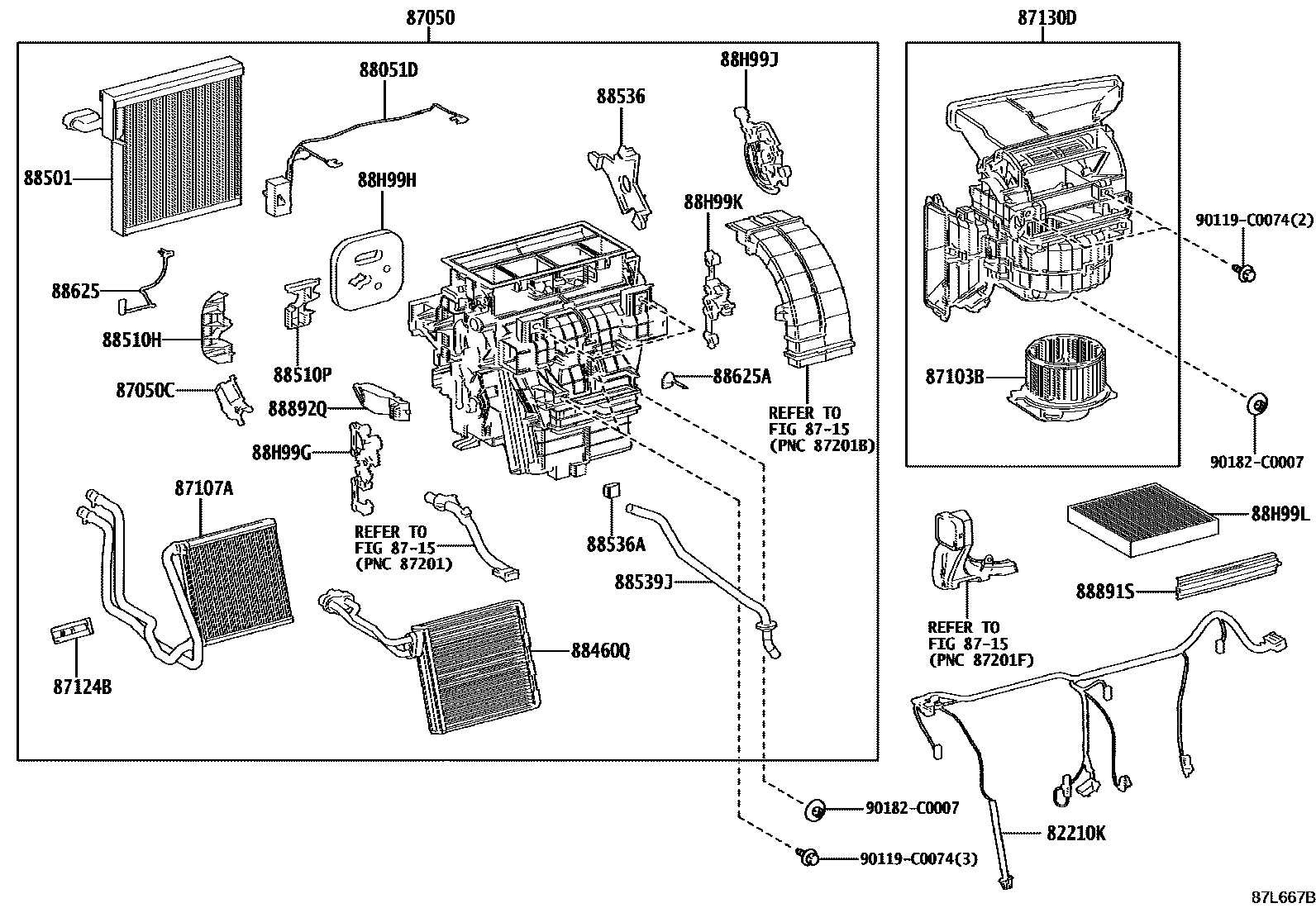

Toyota BZ3 — HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1

82210KHARNESS ASSY, AIR CONDITIONER

main82212-03010iBEJG10..M,N202407

main82212-03010iBEAM10..M,N202301

main82212-03020iBEJG10..H,J202407

main82212-03020iBEAM10..J202301

87050RADIATOR ASSY, AIR CONDITIONER

main87050-03010iBEAM10..M,N202301

main87050-03010iBEJG10..M,N202407

main87050-03020iBEJG10..J202407

main87050-03020iBEAM10..J202301

main87050-03040iBEJG10..H202407

87050CDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1

main87106-03040iBEJG10202407

main87106-03040iBEAM10202301

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-03020iBEJG10202407

main87103-03020iBEAM10202301

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-03020iBEJG10202407

main87107-03020iBEAM10202301

87124BCLAMP, HEATER

main87124-03010iBEJG10202407

main87124-03010iBEAM10202301

87130DBLOWER ASSY

main87130-03030iBEJG10202407

main87130-03030iBEAM10202301

8715

88051DGENERATOR SUB-ASSY, ION

main88051-03010iBEJG10..H,J202407

main88051-03010iBEAM10..J202301

88460QCONDENSER ASSY

main88460-03040iBEJG10202407

main88460-03040iBEAM10202301

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-03020iBEJG10202407

main88501-03020iBEAM10202301

88510HPLATE, COOLER UNIT, NO.1

main88899-03040iBEJG10202407

main88899-03040iBEAM10202301

88510PPLATE, COOLER UNIT, NO.2

main88899-03060iBEJG10202407

main88899-03060iBEAM10202301

88536BRACKET, COOLING UNIT, NO.1

main88899-03090iBEJG10202407

main88899-03090iBEAM10202301

88536ABRACKET, COOLING UNIT, NO.2

main88899-03110iBEJG10202407

main88899-03110iBEAM10202301

88539JHOSE, DRAIN COOLER

main88539-03030iBEAM10202301

main88539-03030iBEJG10..J,M,N202407

main88539-03040iBEJG10..H202407

88625THERMISTOR, COOLER, NO.1

main88620-03020iBEJG10202407

main88620-03020iBEAM10202301

88625ATHERMISTOR, COOLER NO.2

main88625-03020iBEJG10202407

main88625-03020iBEAM10202301

88891SCOVER, COOLER, NO.1

main88899-03120iBEAM10202301

main88899-03120iBEJG10202407

88892QPLATE, COOLER

main88899-03030iBEJG10202407

main88899-03030iBEAM10202301

88H99GPARTS, COOLING UNIT, NO.1

main88899-03050iBEJG10202407

main88899-03050iBEAM10202301

88H99HPARTS, COOLING UNIT, NO.2

main88899-03070iBEJG10202407

main88899-03070iBEAM10202301

88H99JPARTS, COOLING UNIT, NO.3

main88899-03080iBEJG10202407

main88899-03080iBEAM10202301

88H99KPARTS, COOLING UNIT, NO.4

main88899-03100iBEJG10202407

main88899-03100iBEAM10202301

88H99LPARTS, COOLING UNIT, NO.5

main88899-03020iBEJG10202407

main88899-03020iBEAM10202301

90119C0074

main90119-C0074

90182C0007

main90182-C0007

27 parts on this diagram · 2 diagrams in section
