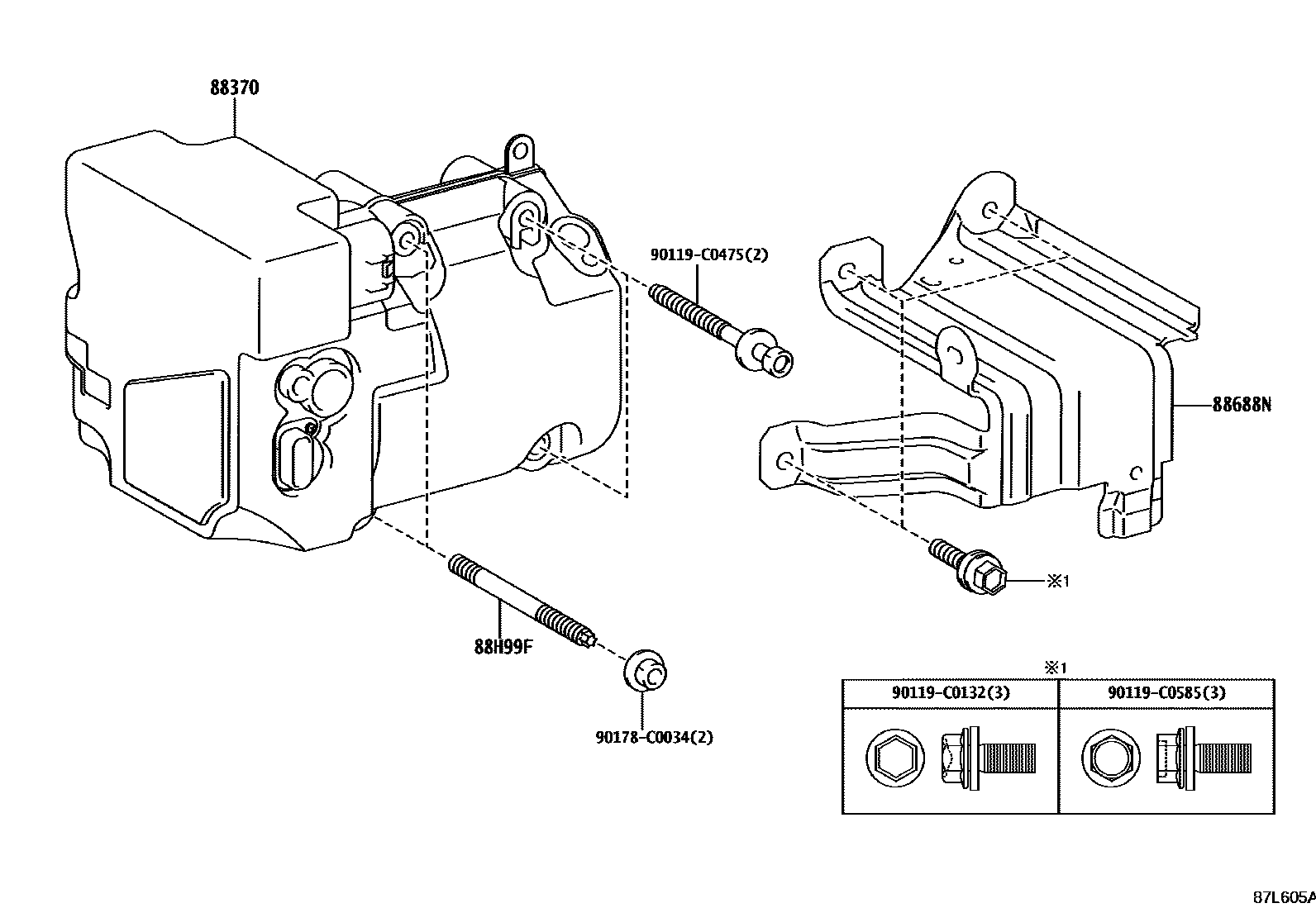

Toyota BZ3 — HEATING & AIR CONDITIONING - COMPRESSOR

88370COMPRESSOR ASSY, W/MOTOR

main88370-03020iBEAM10202301

main88370-03030iBEJG10202407

88688NBRACKET, COOLER

main88688-03060iBEJG10202407

main88688-03060iBEAM10202301

88H99FBOLT, STUD

main88899-44010iBEJG10202407

(J)

main88899-44010iBEAM10202301

(J)

main90126-C0025iBEAM10202301

(L)

main90126-C0025iBEJG10202407

(L)

90119C0132

main90119-C0132

90119C0475

main90119-C0475

90119C0585

main90119-C0585

90178C0034

main90178-C0034

7 parts on this diagram · 1 diagram in section
