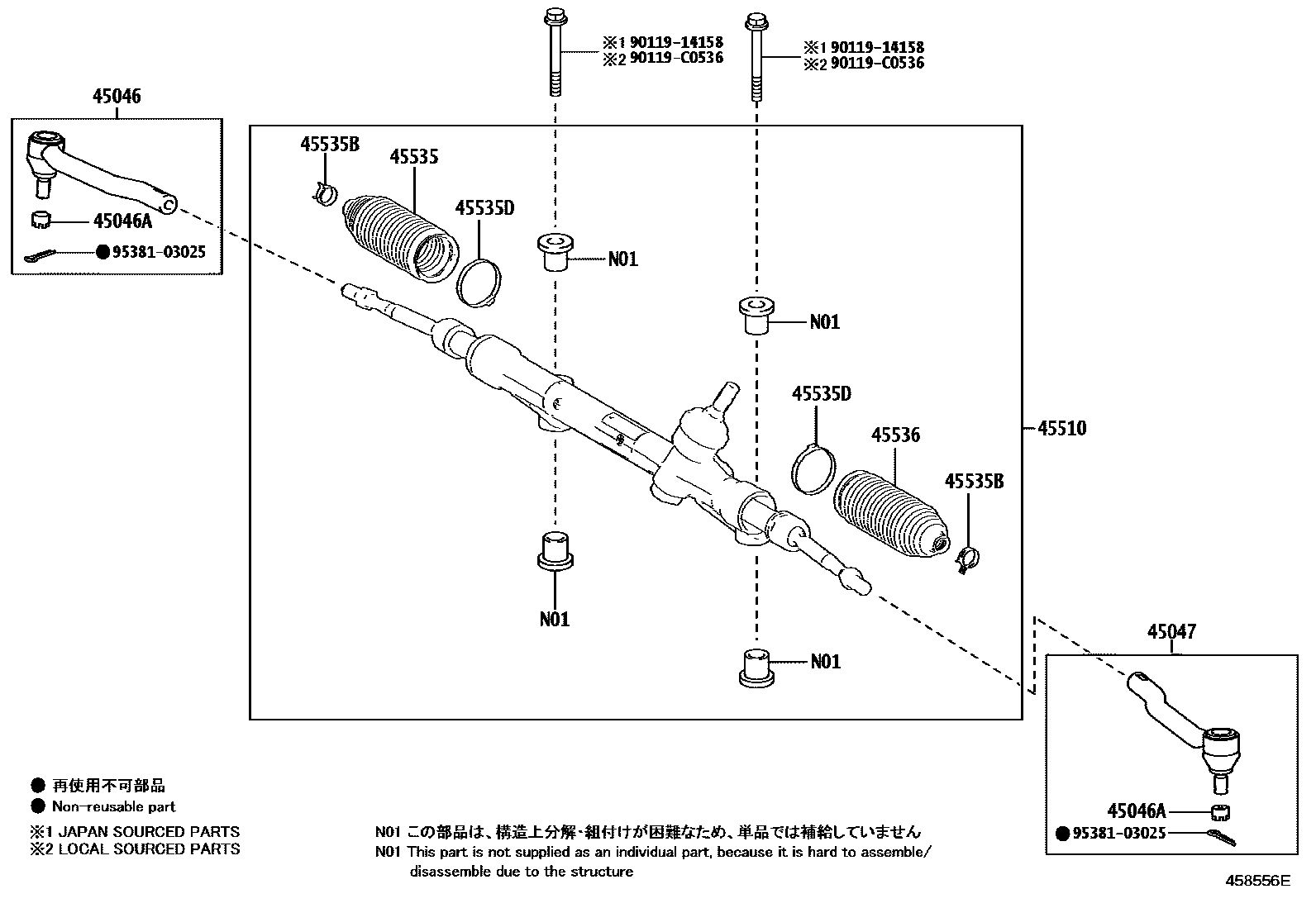

Toyota BZ3 — FRONT STEERING GEAR & LINK

45046END SUB-ASSY, TIE ROD, RH

main45046-09A40iBEJG10202407

main45046-09A40iBEAM10202301

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iBEAM10¥130202301

(J)

main90171-12028iBEJG10¥130202407

(J)

main90171-C0001iBEJG10202407

(L)

main90171-C0001iBEAM10202301

(L)

45047END SUB-ASSY, TIE ROD, LH

main45047-09470iBEJG10202407

main45047-09470iBEAM10202301

45510GEAR ASSY, STEERING

main45510-03010iBEAM10202301

main45510-03010iBEJG10202407

45535BOOT, STEERING RACK, NO.1

main45535-09780iBEJG10202407

main45535-09780iBEAM10202301

45535BCLIP(FOR STEERING RACK BOOT)

main45537-03010iBEJG10202407

main45537-03010iBEAM10202301

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main45538-03010iBEJG10202407

main45538-03010iBEAM10202301

45536BOOT, STEERING RACK, NO.2

main45535-09780iBEJG10202407

main45535-09780iBEAM10202301

9011914158

main90119-14158¥430

90119C0536

main90119-C0536

9538103025

main95381-03025¥130

11 parts on this diagram · 1 diagram in section
