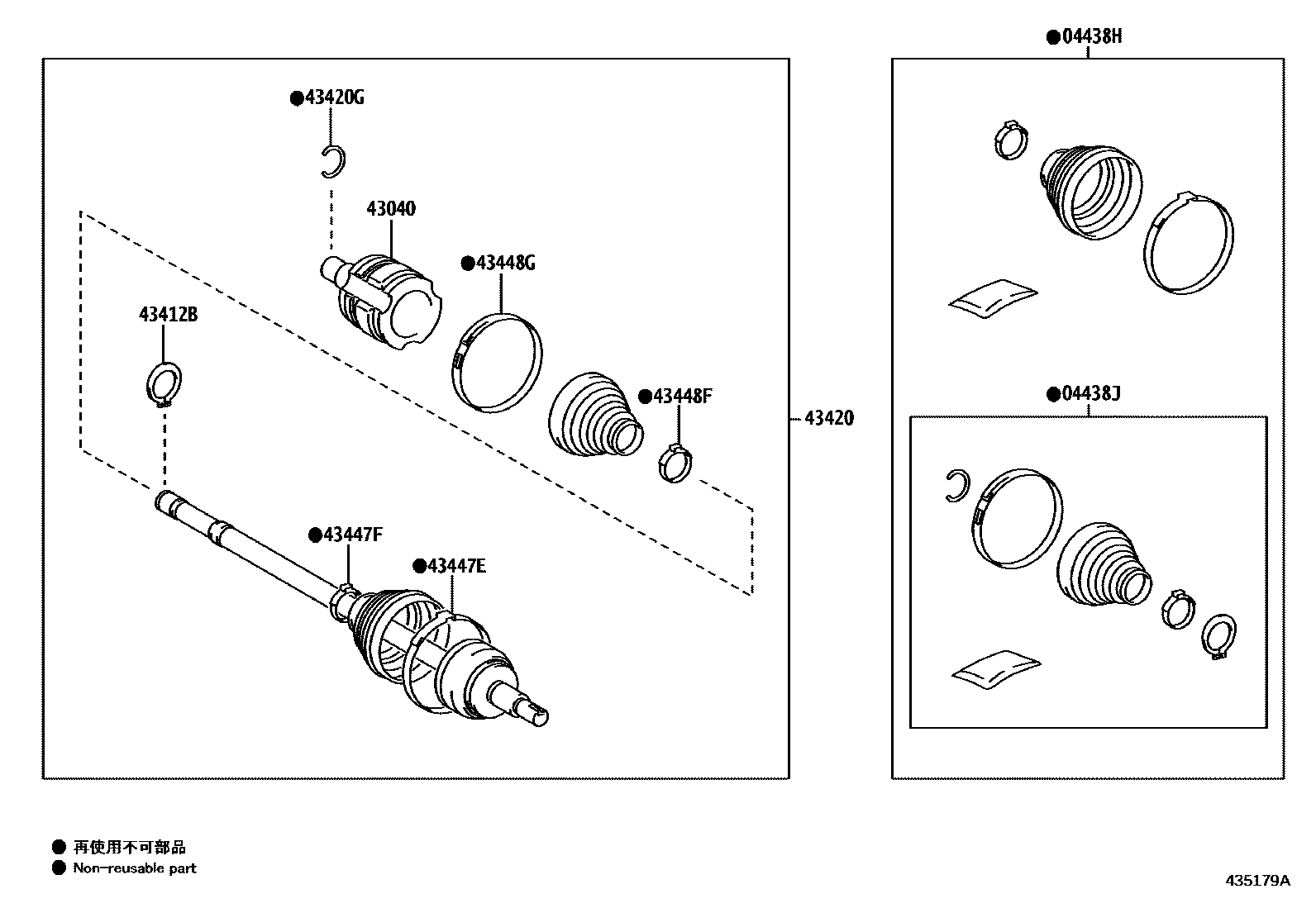

Toyota BZ3 — FRONT DRIVE SHAFT

0001 1LH 0002 1RH

04438HBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH

main04427-03010iBEJG10202301

04438JBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH

main04437-03010iBEJG10202301

43040JOINT ASSY, FRONT DRIVE INBOARD, LH

main43040-03020iBEJG10202301

43412BRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH)

main43425-03010iBEJG10202301

43420SHAFT ASSY, FRONT DRIVE, LH

main43420-03040iBEJG10202301

43420GRING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH)

main43425-03020iBEJG10202301

43447ECLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)

main42345-03030iBEJG10202301

43447FCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)

main42345-03020iBEJG10202301

43448FCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH)

main42345-03020iBEJG10202301

43448GCLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)

main42345-03010iBEJG10202301

10 parts on this diagram · 2 diagrams in section
