Toyota BZ3 — CONSOLE BOX & BRACKET
58805GHOLDER SUB-ASSY, CONSOLE BOX
SILVER,TRIM20
COPPER,TRIM2#
COPPER,TRIM20
COPPER,TRIM2#
WARM STEEL,TRIM0#
WARM STEEL,TRIM0#,1#,4#
COPPER,TRIM2#
WARM STEEL,TRIM0#
58810JBOX ASSY, CONSOLE
BLACK,TRIM1#,2#,4#
FLEET PACKAGE,BLACK,TRIM1#,2#,4#
BLACK,TRIM0#,1#,2#,4#
BLACK,TRIM0#,2#
58811HBOX, CONSOLE, RH
BLACK,TRIM0#,2#
BLACK,TRIM0#,1#,2#,4#
58812CBOX, CONSOLE, LH
BLACK,TRIM0#,2#
BLACK,TRIM0#,1#,2#,4#
58813BOX, CONSOLE, UPPER
BLACK,TRIM0#,2#
BLACK,TRIM0#,1#,2#,4#
58820ABOX ASSY, CONSOLE COMPARTMENT
BLACK,TRIM0#,2#
BLACK,TRIM1#,2#,4#
BLACK,TRIM0#,1#,2#,4#
FLEET PACKAGE,BLACK,TRIM1#,2#,4#
58822APANEL, CONSOLE, UPPER REAR
BLACK,TRIM0#,2#,4#
WIRELESS CHARGER-WITH,BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
WIRELESS CHARGER-WITH,BLACK,TRIM0#,2#,4#
BLACK,TRIM0#,2#,4#
BLACK,TRIM0#,2#
FLEET PACKAGE,BLACK,TRIM2#
58825APOCKET, CONSOLE BOX
58827AGARNISH, CONSOLE BOX POCKET
58833ACOVER, CONSOLE, UPPER
58833BGARNISH, CONSOLE UPPER PANEL, NO.1
58839ACOVER, CONSOLE BOX HOLE
BLACK,TRIM0#,2#
BLACK,TRIM1#,2#,4#
BLACK,TRIM0#,1#,2#,4#
FLEET PACKAGE,BLACK,TRIM1#,2#,4#
58856CHOLDER, CONSOLE
BLACK,TRIM1#,2#,4#
BLACK,TRIM0#,2#
BLACK,TRIM0#,1#,2#,4#
FLEET PACKAGE,BLACK,TRIM1#,2#,4#
58861ASUPPORT, CONSOLE BOX, NO.1
BLACK,TRIM0#,1#,2#,4#
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
58862CSUPPORT, CONSOLE BOX, NO.2
BLACK,TRIM0#,2#
BLACK,TRIM0#,1#,2#,4#
BLACK,TRIM0#,2#
58871CUSHION, CONSOLE BOX
WIRELESS CHARGER-WITH
WIRELESS CHARGER-WITH
58891APANEL, EQUIPMENT SET, NO.1
58892BPANEL, EQUIPMENT SET, NO.2
58910CBOX ASSY, CONSOLE, REAR
BLACK/LT.GRAY,TRIM1#
WIRELESS CHARGER-WITH,BLACK/LT.GRAY,TRIM1#
BLACK,TRIM2#
WIRELESS CHARGER-WITH,BLACK,TRIM2#
WIRELESS CHARGER-WITH,BLACK/SAND BROWN,TRIM4#
BLACK/SAND BROWN,TRIM4#
BLACK/LT.GRAY,TRIM1#
BLACK,TRIM2#
BLACK/SAND BROWN,TRIM4#
WIRELESS CHARGER-WITH,BLACK/SAND BROWN,TRIM4#
sub58910-03051
WIRELESS CHARGER-WITH,BLACK/WHITE,TRIM0#
BLACK/WHITE,TRIM0#
BLACK/WHITE,TRIM0#
WIRELESS CHARGER-WITH,BLACK/WHITE,TRIM0#
WIRELESS CHARGER-WITH,BLACK/MD.GRAY,TRIM2#
BLACK/MD.GRAY,TRIM2#
WIRELESS CHARGER-WITH,BLACK/MD.GRAY,TRIM2#
BLACK/MD.GRAY,TRIM2#
BLACK/SAND BROWN,TRIM4#
WIRELESS CHARGER-WITH,BLACK/SAND BROWN,TRIM4#
WHITE,TRIM0#
WHITE,TRIM0#
MD. GRAY,TRIM2#
MD. GRAY,TRIM2#
SAND BROWN,TRIM4#
58917ACOVER, CONSOLE BOX, REAR
58919BPLATE, CONSOLE BOX
BLACK,TRIM0#,2#
BLACK,TRIM1#,2#,4#
BLACK,TRIM0#,1#,2#,4#
FLEET PACKAGE,BLACK,TRIM1#,2#,4#
58920AARMREST ASSY, REAR CONSOLE
WHITE,TRIM0#
WHITE,TRIM0#
MD. GRAY,TRIM2#
MD. GRAY,TRIM2#
SAND BROWN,TRIM4#
58923APANEL, CONSOLE REAR END
ADVANCED PACKAGE,BLACK,TRIM0#,1#,2#,4#
BLACK,TRIM0#,2#
ADVANCED PACKAGE,BLACK,TRIM0#,2#
WHITE ADVANCED PACKAGE,BLACK,TRIM0#,2#
BLACK,TRIM0#,1#,2#,4#
BLACK,TRIM0#,1#,2#,4#
BLACK,TRIM0#,2#
58924APANEL, CONSOLE REAR END, NO.2
BLACK,TRIM0#,2#
BLACK,TRIM0#,1#,2#,4#
58983RETAINER, UPPER CONSOLE
90119C0104
main90119-C0104
90119C0107
main90119-C0107
9015950327
90159C0037
main90159-C0037
90167C0004
main90167-C0004
9018305094
9046705171
9046705172
9046707215
90467C0087
main90467-C0087
90467C0088
main90467-C0088
9167380616
9356054016
9356855014

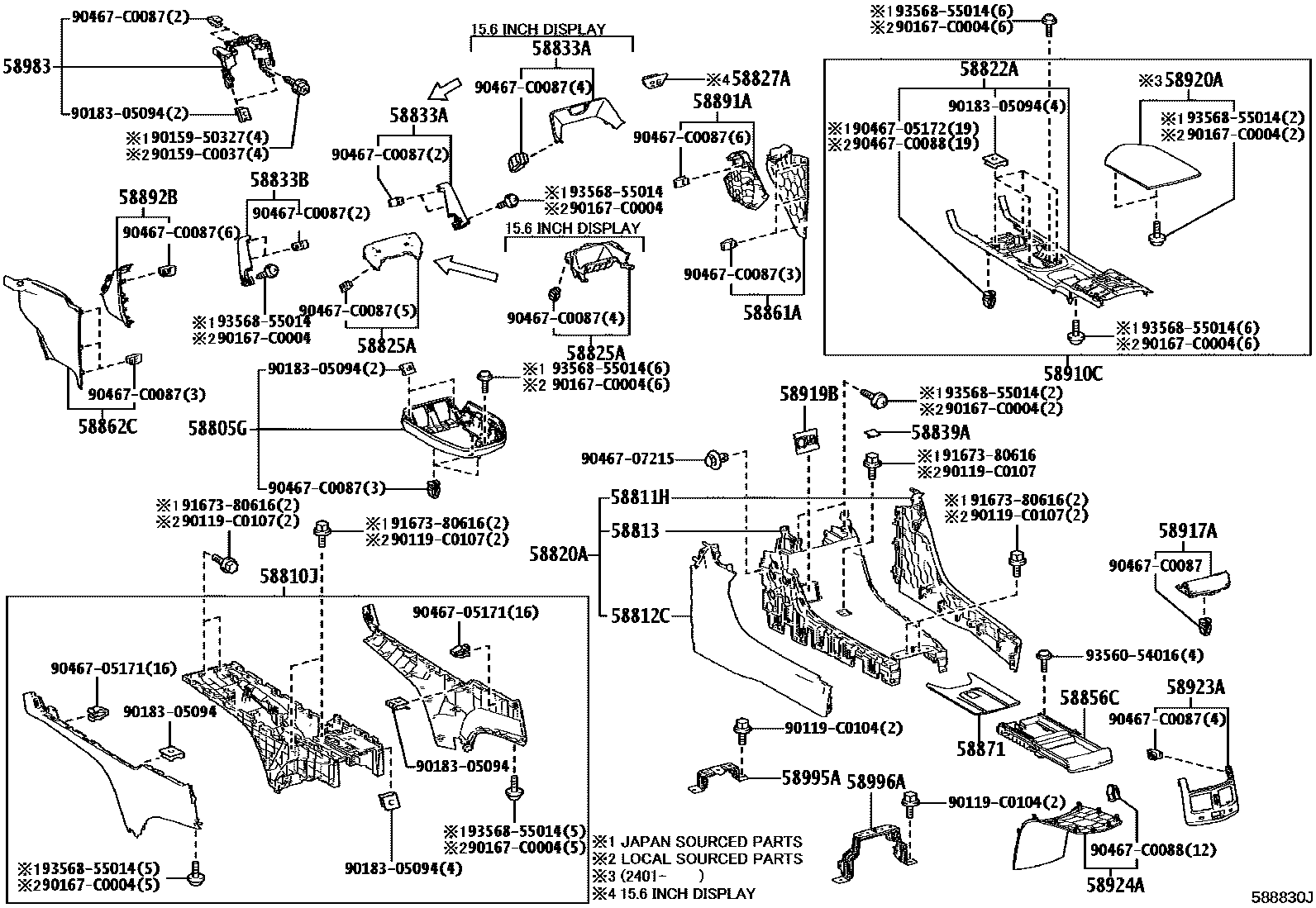

41 parts on this diagram · 1 diagram in section
